Model No: KG-ME

Single Door Metal Wall Mounted Enclosure

CANGO supplies single door metal wall mounted enclosures with weatherproof design, durable steel body, and reliable electrical protection.
Quantity :
add to cart
Contact Now

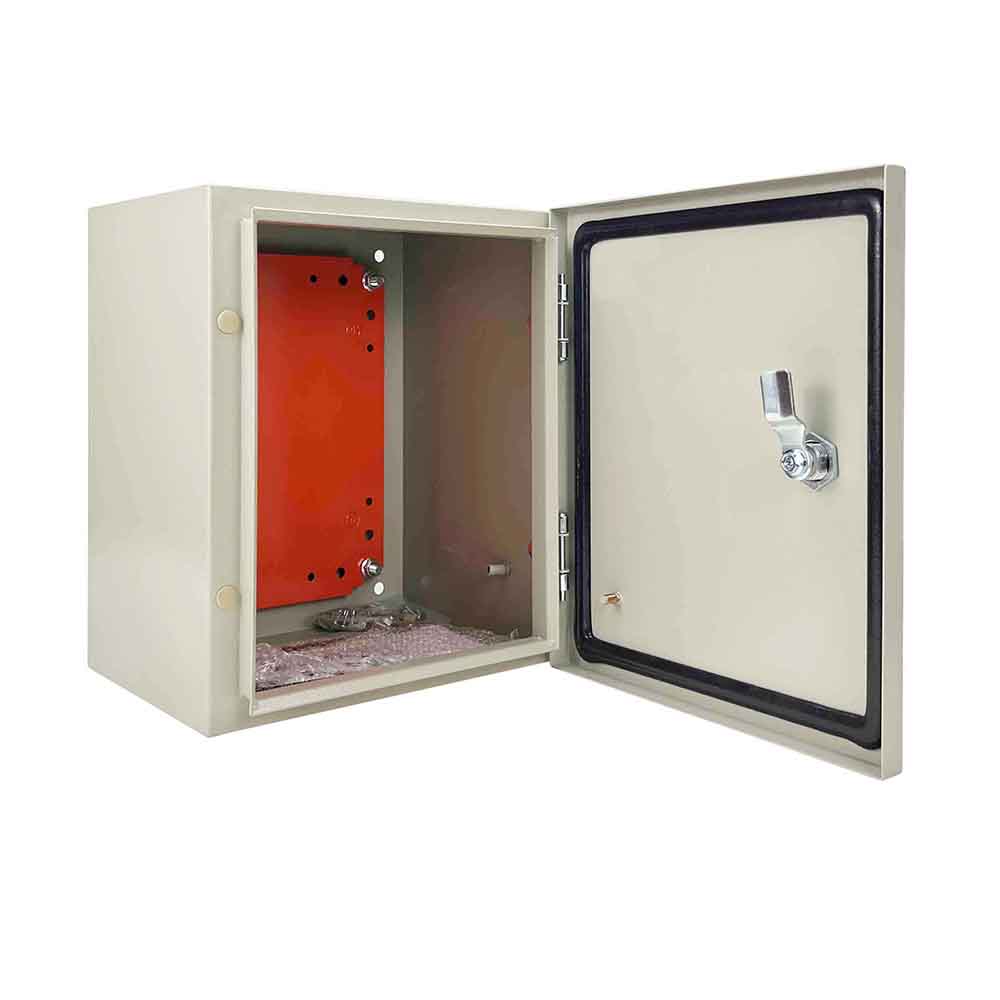

   CANGO KG-ME Single Door Metal Wall Mounted Enclosure

Introduction

CANGO supplies this Single Door Metal Wall Mounted Enclosure for electrical protection and industrial installation applications. Designed as a metal wall mounted enclosure, single door enclosure box, and weatherproof metal enclosure, it provides durable structure, secure access, and reliable long-term protection

Key Features

  • Single door metal enclosure design
  • Durable wall mounted construction
  • Weatherproof protection for indoor and outdoor use
  • Strong steel body for reliable enclosure performance
  • Practical internal space for electrical components
  • Suitable for industrial and project applications
Technical Data
  1. Zinc-plated steel panel Body and door is made in 1.2-2.0mm stee sheet.
  2. Flat mounting palte or gavanized steel plate in 1.5mm/2.0mm steel sheet finish.
  3. Cycle thermosetting epoxypolyester powder coating.
  4. Body and door color are RAL7032 or RAL7035
  5. Mounting plate is galvanized  or RAL2004 smooth finish.
  6. Protection level : IP66(acc. to  GB4205-1993 EN60529 and NEMA4)
  7. Sealing rubber gasket make high proteciton degree.
  8. IK10 Against mechanical Impacts

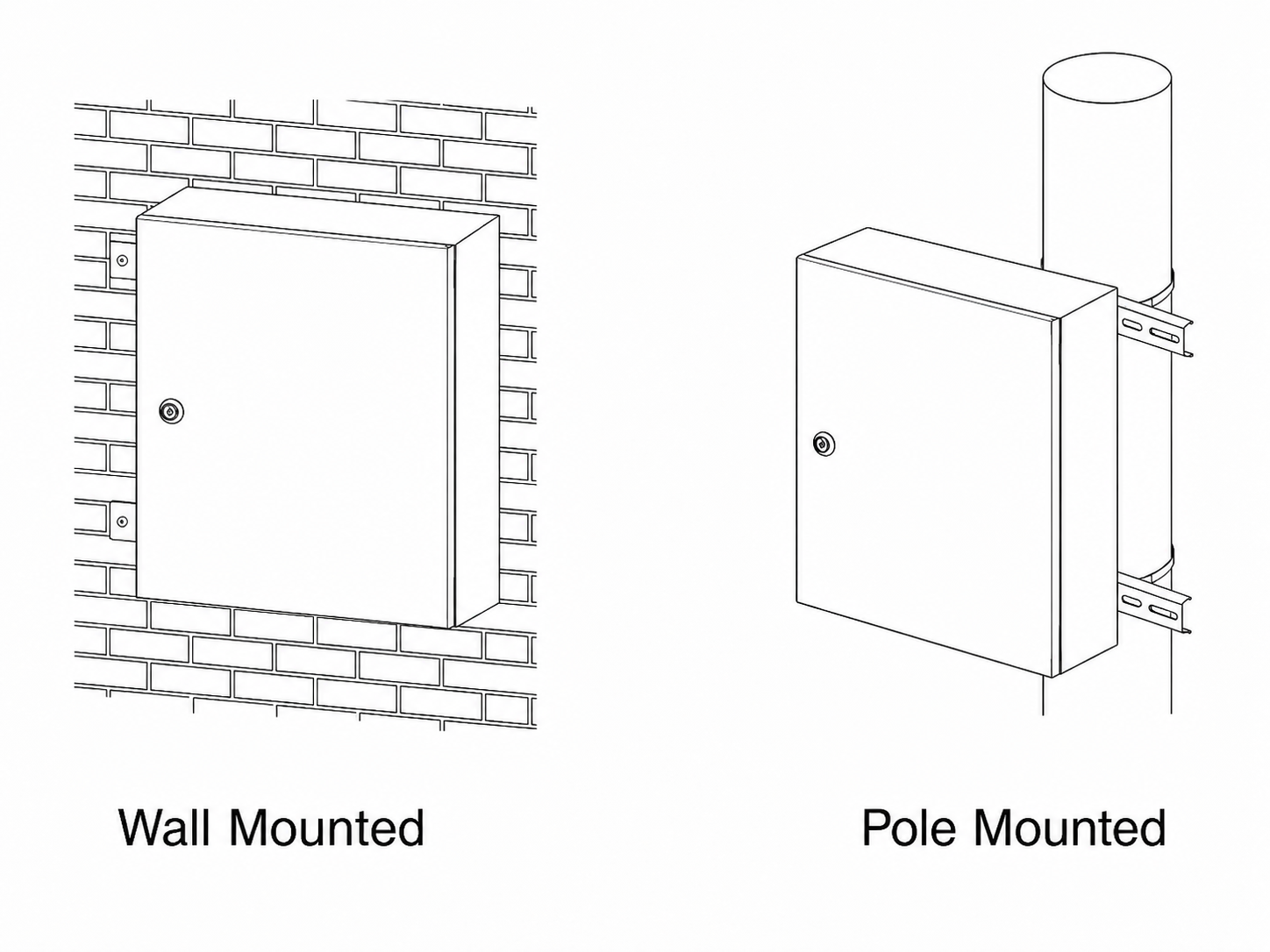

  9. Optional wall mounted or pole mounted

Products Parameters

   MODE
             DIMENSION
          MODLE
            DIMENSION
 H(MM)
    W(MM)
   D(MM)
H(MM)
W(MM)
D(MM)
KGME-A 2020/15
200
200
 150
      KGME-A 6060/30
 600
 600
300
KGME-A 2520/15
250
200
 150
KGME-A 7050/15
700
500
150
KGME-A 3020/15
300
250
 150
KGME-A 7050/20
700
500
200
KGME-A 3025/20
300
250
 200
KGME-A 7060/20
700
600
200
KGME-A 3030/15
300
300
 150
KGME-A 7060/25
700
600
250
KGME-A 3030/20
300
300
 200
KGME-A 7060/30
700
600
300
KGME-A 3030/25
300
300
 250
KGME-A 8060/20
800
600
200
KGME-A 4030/15
400
300
 150
KGME-A 8060/25
800
600
250
KGME-A 4030/20
400
300
 200
KGME-A 8060/30
800
600
300
KGME-A 4030/25
400
300
 250
KGME-A 8080/20
800
800
200
KGME-A 4030/30
400
300
 300
KGME-A 8080/25
800
800
250
KGME-A 4040/15
400
400
 150
KGME-A 8080/30
800
800
300
KGME-A 4040/20
400
400
 200
KGME-A 10060/20
1000
600
200
KGME-A 4040/25
400
400
 250
KGME-A 10060/25
1000
600
250
KGME-A 4040/30
400
400
 300
KGME-A 10060/30
1000
600
300
KGME-A 5030/15
500
300
 150
KGME-A 10070/20
1000
700
200
KGME-A 5030/20
500
300
 200
KGME-A 10080/20
1000
800
200
KGME-A 5030/25
500
300
 250
KGME-A 10080/25
1000
800
250
KGME-A 5040/15
 500
 400
 150
KGME-A 10080/30
1000
800
300
KGME-A 5040/20
 500
 400
 200
KGME-A 10080/40
1000
800
400
KGME-A 5040/25
 500
 400
 250
KGME-A 100100/25
1000
1000
250
KGME-A 5040/30
 500
 400
 300
KGME-A 100100/30
1000
1000
300
KGME-A 5050/20
 500
 500
 200
KGME-A 12060/20
1000
600
200
KGME-A 5050/25
 500
 500
 250
KGME-A 12060/25
1000
600
250
KGME-A 5050/30
 500
 500
 300
KGME-A 12070/25
1000
700
250
KGME-A 6040/15
 600
 400
 150
KGME-A 12080/20
1000
800
200
KGME-A 6040/20
 600
 400
 200
KGME-A 12080/25
1000
800
250
KGME-A 6040/25
 600
 400
 250
KGME-A 12080/30
1000
800
300
KGME-A 6040/30
 600
 400
 300
KGME-A 12080/40
1000
800
400
KGME-A 6050/15
 600
 500
 150
KGME-A 120100/25
1200
1000
250
KGME-A 6050/20
 600
 500
 200
KGME-A 120100/30
1200
1000
300
KGME-A 6050/25
 600
 500
 250
KGME-A 120100/40
1000
1000
400
KGME-A 6050/30
 600
 500
 300
KGME-A 14060/40
1400
600
400
KGME-A 6060/15
 600
 600
 150
KGME-A 14080/40
1400
800
400
KGME-A 6060/20
 600
 600
 200
KGME-A 140100/40
1400
1000
400
KGME-A 6060/25
 600
 600
 250
KGME-A 140100/40
1400
1000
400
More dimension information, please contact with us.

       Model
  Thickness of plate(mm)
              Enclosure Body
               Installation Plate
                  Door
A Type
1.5mm
2mm
1.5mm
B Type
1.2mm
1.5mm
1.2mm
C Type
1.2mm
1.2mm
1.2mm
 D Type
1.0mm
1.0mm
1.2mm


metal wall mounted enclosure

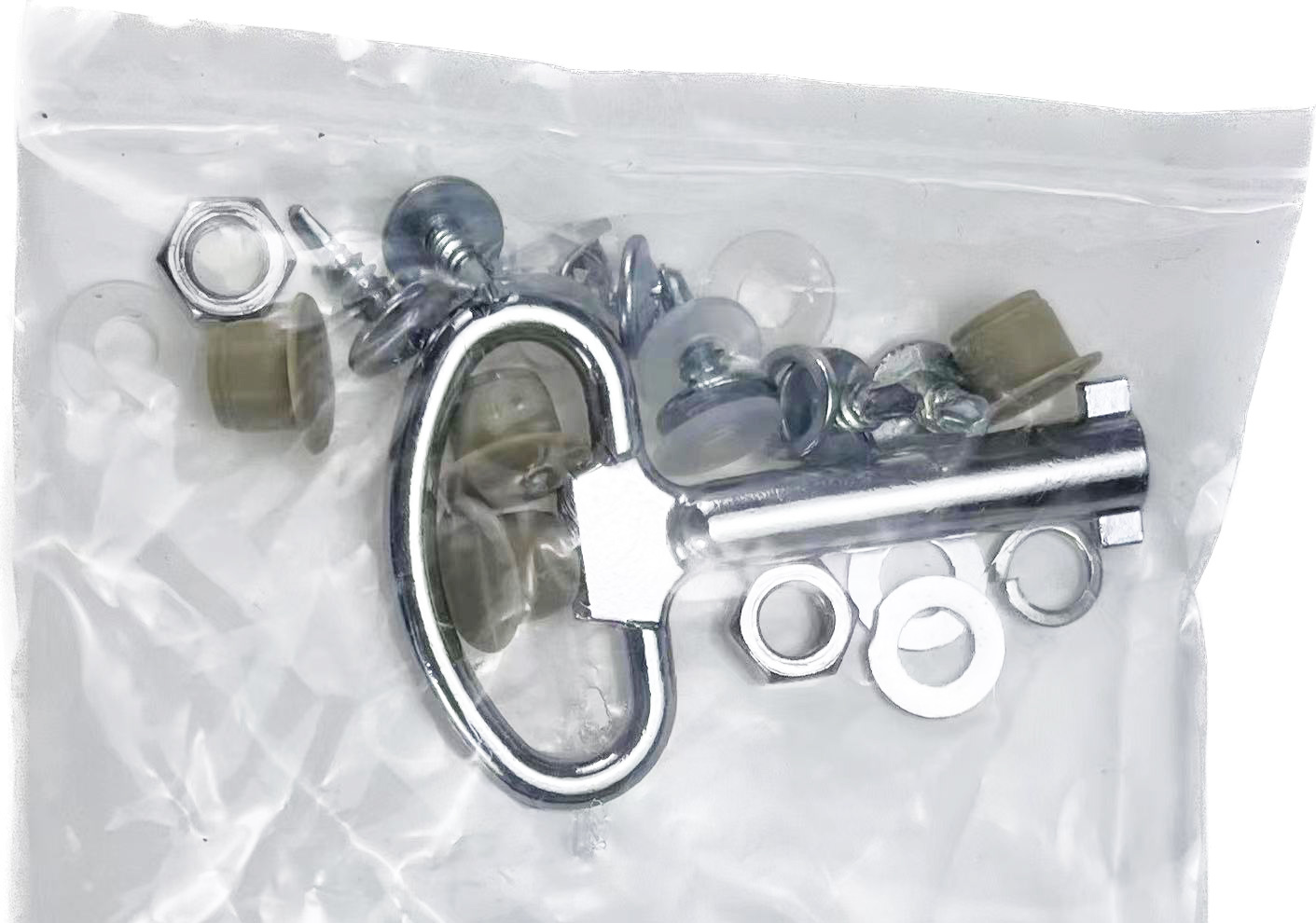

Accessories

  • Mounting Plate
  • Gland plate and gasket
  • Wall fixing brackets and screws
  • Locking round bar key
single door enclosure box

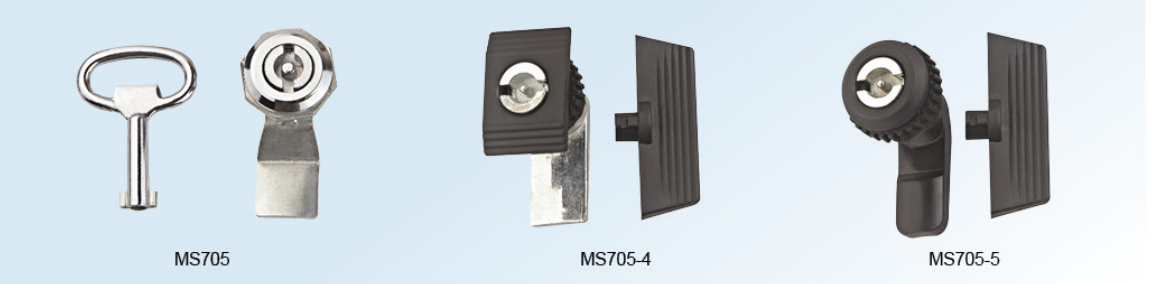

Lock Choice

weatherproof electrical enclosure


Product Advantages

This Single Door Metal Wall Mounted Enclosure offers strong structural protection and practical installation for electrical systems. Its weatherproof design and durable metal body help improve safety, service life, and equipment protection.


Application Scenarios

  • Industrial control panels that need a strong wall mounted enclosure
  • Outdoor pump, lighting, and machine protection points
  • Factory and workshop electrical equipment installations
  • Contractor projects requiring a single door enclosure box


OEM / ODM Customization

CANGO supports OEM and ODM service for this metal wall mounted enclosure. Cabinet size, steel thickness, surface color, logo, lock type, gland plate, inner mounting plate, and export packaging can be customized based on project drawings.


Packaging & Delivery

Standard export packing is available for this product. Samples, packaging details, lead time, and shipment solutions can be provided according to order requirements.


Installation Method

This model is designed for wall mounted installation. Different internal layouts and mounting accessories can be discussed according to application requirements.
metal wall mounted enclosure



FAQ
Q:  Is this model suitable for weatherproof electrical enclosure projects?
A: Yes, it is designed for indoor and outdoor electrical protection where a durable single door enclosure box is required.

Q: Can the inner mounting plate be adjusted?
A: Yes, the internal plate, hole layout, and accessory arrangement can be customized according to your project requirements.

Q: What types of customers usually choose this model?
A: It is commonly selected by electrical contractors, control panel builders, machinery suppliers, and project installers.

Q: Can you supply samples before bulk order?
A: Yes, samples can be discussed before volume production, and packaging details can be confirmed according to order quantity.
