Model No: KG-RBD-200MR
Compact Two Sockets Ready Board
KG-RBD-200MR is a low cost, portable, safe and easy to use pre-wired low voltage two socket outlets ready board with one lighting lamb for single phase supply for electricity to households and business premises that are unbale to carry out conventional full house wiring or who are using power in a confined place or semi-permanent structure.
Quantity :
KG-RBD-200MR Compact Two Sockets Ready Board
Introduction
CANGO supplies this Compact Two Sockets Ready Board for compact residential distribution use. Designed as a two sockets ready board, small ready board, and portable ready board, it delivers practical socket access, reliable protection, and convenient installation in limited spaces.
Key Features
- Two sockets outlet configuration
- Compact and practical structure
- Durable plastic enclosure
- Convenient wall mounted design
- Reliable electrical protection
- Suitable for small distribution applications
Technical Data
| Items | Parameters |
|---|---|
| Model Number | KG-RBD-200MR |
| Dimension | 365x210x102 mm (L*W*D) |
| Power Input | AC 230V 50Hz |
| Socket Type | Type G |
| Max Power Input | 13A |
| Lamp Holder | Screw type E27/Pin type B22 |
| Material Of Ready Board | Injection Molded Plastic |
| Type Of mounting | Wall Mounting With Four Screws |
| Protection level | IP54, IK09 (Light Chamber is IP65) |
| Operating Temperature | -30°C to 60°C |
| Color | Grey |
Ready Board with Bulkhead Lamp Structure
| S.N. | Product Name | Material | Specification |
|---|---|---|---|
| 1 | Lighting chamber cover | HL/transparent PC | 196*116*53.5mm, thickness 2mm |
| 2 | Lighting chamber base | HL/PC+10%G | 196*116*53.5mm, thickness 2mm |
| 3 | Lamp fixer | PBT | To fix the lamp |
| 4 | Ceramic lamp head | Ceramic | B22 or E27 |
| 5 | Reflector | Aluminum | Thickness 0.3mm |
| 6 | Waterproof connector | PA | - |
| 7 | Box cover | HL/PC+10%G | 244.5*210*52.8mm, thickness 3mm |
| 8 | Box base | HL/PC+10%G | 242*258*37mm, thickness 3mm |
| 9 | RCBO | Standard | 32A 2P |
| 10 | DIn Rail | Nickel plating metal | 35mm DIn-Rail For fixing the RCBO and MCB |
| 11 | Switch | Standard | 230V AC/up to 3A |
| 12 | BS socket | Standard | 230V AC/up to 13A |
| 13 | Neutral bar | Copper | For cable connection |
| 14 | Earth bar | Copper | For earthing |
| 15 | MCB | Standard | 3A/6A/16A |
Product Advantages
This Two Sockets Ready Board offers a simple and efficient solution for compact distribution needs. Its practical structure, durable enclosure, and convenient socket configuration support reliable residential and project use.
Application Scenarios
- Small residential installations
- Compact power distribution points
- Utility and project support use
- Wall mounted electrical applications
OEM / ODM Customization
CANGO supports OEM and ODM service for this Two Sockets Ready Board. Socket arrangement, branding, enclosure color, accessories, and packaging can be customized for project supply.
Packaging & Delivery
Standard export packing is available for this Ready Board. Samples can be arranged for confirmation, and packaging details, lead time, and shipping terms can be provided upon request.

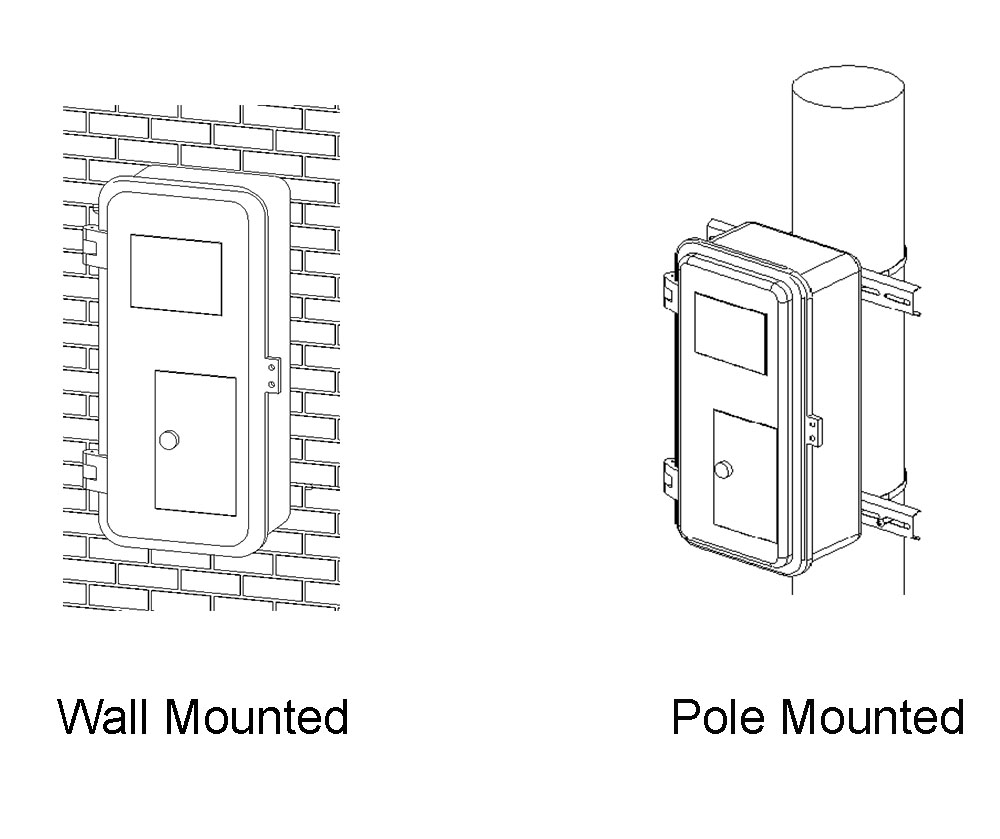

Installation Method
This model is designed for wall mounted installation. Different internal configurations and accessory options can be discussed based on application needs.
FAQ
Q: How many sockets does this model provide?
A: This model is designed with two socket outlets.
A: This model is designed with two socket outlets.
Q: Is it suitable for residential use?
A: Yes, it is suitable for small residential and project power distribution.
A: Yes, it is suitable for small residential and project power distribution.
Q: Is this model intended for compact wall mounted use?
A: Yes, it is designed for compact wall mounted electrical distribution applications.
A: Yes, it is designed for compact wall mounted electrical distribution applications.
