Model No: KG-RBF
KG-RBF Series MCB Distribution Box
KG-RBF is an RBF series MCB distribution box, flush cover breaker box, and mini distribution box for compact low-voltage protection and OEM supply.
Quantity :
Cango KG-RBF Series Mini Distribution Box
Introduction
CANGO supplies this RBF Series Mini Distribution Box for low-voltage circuit protection applications. Designed as an rbf series mcb distribution box, flush cover breaker box, and mini distribution box, it offers organized modular arrangement, durable enclosure protection, and practical installation for daily electrical use.
Key Features
- RBF series MCB distribution box design
- Compact enclosure structure
- Suitable for modular breaker installation
- Durable housing for daily use
- Practical internal arrangement
- Reliable low-voltage protection
- Compact enclosure structure
- Suitable for modular breaker installation
- Durable housing for daily use
- Practical internal arrangement
- Reliable low-voltage protection
Specification
| Mounting type | FLUSH | Terminal dimension | 6xl0.4mm/6.4x12mm | Rated voltage | AC400V(+/-20%) |
| Box materialsteel | Powder coated | Way dimension | 18mm | Rated currency | 63A/80A |
| Cover material | Powder coated | Ingress protection | IP40 | Rated frequency | 50-60HZ |
Model Selection
| WAY | MODEL | cOVER SIZE | BOX SIZE | TERMINAL | TERMINAL HOLES | KNOCK-OUTS(one side) | ||
| QUANTITY | DISTANCE | |||||||
| L×W×T(mm) | L×W×D×T(mm) | (mm) | PE | N | (mm) | mm | ||
| 10WAY | KG-RBF-A 110 | 262×210×10(24.7) | 246×192×80×0.8 | 6×10.4 | 6 | 5 | 7 | 2-φ33、3-φ21 |
| 13WAY | KG-RBF-A 113 | 316×210×10(24.7) | 300×192×80×0.8 | 6×10.4 | 6 | 5 | 7 | 2-φ33、3-φ21 |
| 16WAY | KG-RBF-A 116 | 370×210×10(24.7) | 354×192×80×0.8 | 6×10.4 | 8 | 5 | 7 | 2-φ33、5-φ21 |
| 18WAY | KG-RBF-A 118 | 406×210×10(24.7) | 390×192×80×0.8 | 6×10.4 | 11 | 7 | 7 | 2-φ33、2-φ26、4-φ21 |
| 21WAY | KG-RBF-A 121 | 460×210×10(24.7) | 444×192×80×0.8 | 6×10.4 | 11 | 7 | 7 | 2-φ33、2-φ26、6-φ21 |
| 24WAY | KG-RBF-A 124 | 514×250×10(24.7) | 498×230×90×1.0 | 6×10.4 | 11 | 7 | 7 | 2-φ33、2-φ26、6-φ21 |
| 26WAY | KG-RBF-A 226 | 316×405×12(24.7) | 300×380×90×1.0 | 6×10.4 | 11 | 7 | 7 | 2-φ33、4-φ21 |
| 32WAY | KG-RBF-A 232 | 370×405×12(24.7) | 354×380×90×1.0 | 6×10.4 | 13 | 7 | 7 | 2-φ33、5-φ21 |
| 36WAY | KG-RBF-A 236 | 406×405×12(24.7) | 390×380×90×1.0 | 6×10.4 | 13 | 7 | 7 | 2-φ33、2-φ26、4-φ21 |
| 42WAY | KG-RBF-A 242 | 460×405×12(24.7) | 444×380×90×1.0 | 6×10.41 | 16 | 9 | 7 | 2-33、2-φ26、6-φ21 |
| 48WAY | KG-RBF-A 348 | 388×650×12(24.7) | 363×620×100×1.2 | 6.4×12 | Double 10 | Double11 | 8 | 2-φ41、2-φ26、4-φ21 |
| 54WAY | KG-RBF-A 354 | 424×650×12(24.7) | 399×620×100×1.2 | 6.4×12 | Double 10 | Double11 | 8 | 2-41、2-φ26、5-φ21 |
| 62WAY | KG-RBF-A 363 | 478×650×12(24.7) | 453×620×100×1.2 | 6.4x12 | Double 10 | Double11 | 8 | 2-41、2-φ26、6-φ21 |
| 84WAY | KG-RBF-A 484 | 453×620×100×1.2 | 453×790×100×1.2 | 8x12 | Double 12 | Double13 | 8 | 2-41、2-φ26、6-φ21 |

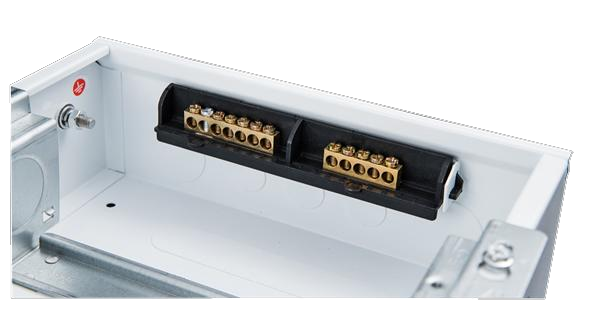

Terminal
Product Advantages:
This RBF Series MCB Distribution Box is designed for organized breaker installation and reliable low-voltage protection. Its compact structure supports practical installation and efficient use of internal space.
Application Scenarios:
- Residential mini distribution box installations
- Flush cover breaker box use for clean indoor appearance
- Commercial low-voltage branch circuit protection
- Contractor projects requiring compact breaker enclosure supply
- Flush cover breaker box use for clean indoor appearance
- Commercial low-voltage branch circuit protection
- Contractor projects requiring compact breaker enclosure supply
OEM / ODM Customization:
CANGO supports OEM and ODM service for this RBF series MCB distribution box. Cover style, module quantity, body color, logo, rail layout, label, and packaging can be customized for target markets.
Installation Method:
This model supports practical wall mounted installation and modular internal configuration. Different arrangement options can be discussed based on application requirements.
Packaging & Delivery:
Standard export packing is available. Samples, packaging details, lead time, and shipment terms can be provided according to order quantity.
FAQ:
Q: What makes this RBF series box different from larger distribution boxes?
A: It is a compact mini distribution box for smaller MCB installations and branch circuit protection.
A: It is a compact mini distribution box for smaller MCB installations and branch circuit protection.
Q: Can it be used as a flush cover breaker box?
A: Yes, it is suitable for clean indoor breaker protection where a compact flush cover design is preferred.
A: Yes, it is suitable for clean indoor breaker protection where a compact flush cover design is preferred.
Q: Can the cover and label be customized?
A: Yes, cover style, printed label, logo, color, and packaging can be customized.
A: Yes, cover style, printed label, logo, color, and packaging can be customized.
Q: Is this model suitable for distributor stock?
A: Yes, its compact size and common application make it suitable for distributor and project inventory.
A: Yes, its compact size and common application make it suitable for distributor and project inventory.
