Model No: KG-RBD-303MR
Four Sockets Ready Board
KG-RBD-303MR is a low cost, portable, safe and easy to use pre-wired low voltage with two socket outlets ready board with one lighting lamb for single phase supply for electricity to households and business premises that are unbale to carry out conventional full house wiring or who are using power in a confined place or semi-permanent structure.
Quantity :
KG-RBD-303MR Four Sockets Ready Board
Introduction
CANGO supplies this Four Sockets Ready Board for residential and project distribution applications. Designed as a four sockets ready board, multi outlet ready board, and four sockets distribution board, it provides convenient power access, durable protection, and practical electrical control in one unit.
Key Features
- Four sockets outlet configuration
- Practical multi-socket ready board design
- Durable plastic enclosure
- Reliable wall mounted installation
- Suitable for residential and project applications
- Convenient integrated power distribution
Technical Data
| Items | Parameters |
|---|---|
| Model Number | KG-RBD-303MR |
| Dimension | 394*258*102.5mm (L*W*D) |
| Power Input | AC 230V 50Hz |
| Socket Type | Type G |
| Max Power Input | 13A |
| Lamp Holder | Screw type E27/Pin type B22 |
| Material Of Ready Board | Injection Molded Plastic |
| Type Of mounting | Wall Mounting With Four Screws |
| Protection level | IP54, IK09 (Light Chamber is IP65) |
| Operating Temperature | -30°C to 60°C |
| Color | Grey |

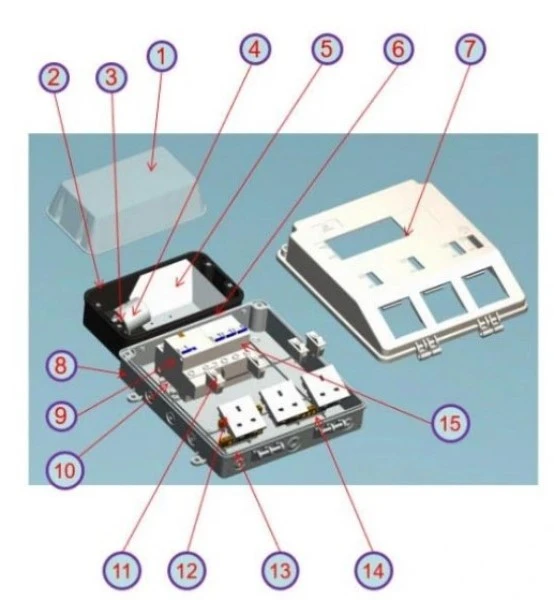

Ready Board with Bulkhead Lamp Structure
| S.N. | Product Name | Material | Specification |
|---|---|---|---|
| 1 | Lighting chamber cover | HL/transparent PC | 196*116*53.5mm, thickness 2mm |
| 2 | Lighting chamber base | HL/PC+10%G | 196*116*53.5mm, thickness 2mm |
| 3 | Lamp fixer | PBT | To fix the lamp |
| 4 | Ceramic lamp head | Ceramic | B22 or E27 |
| 5 | Reflector | Aluminum | Thickness 0.3mm |
| 6 | Waterproof connector | PA | - |
| 7 | Box cover | HL/PC+10%G | 274*258*52.8mm, thickness 3mm |
| 8 | Box base | HL/PC+10%G | 271*258*37mm, thickness 3mm |
| 9 | RCBO | Standard | 32A 2P |
| 10 | DIn Rail | Nickel plating metal | 35mm DIn-Rail For fixing the RCBO and MCB |
| 11 | Switch | Standard | 230V AC/up to 3A |
| 12 | BS socket | Standard | 230V AC/up to 13A |
| 13 | Neutral bar | Copper | For cable connection |
| 14 | Earth bar | Copper | For earthing |
| 15 | MCB | Standard | 3A/6A/16A |
Product Advantages
This Four Sockets Ready Board provides more outlet positions in a compact distribution format. It offers convenient power access, durable enclosure protection, and practical installation for household and project use.
Application Scenarios
- Residential power distribution
- Multi-outlet wall mounted installations
- Contractor and project applications
- Utility and temporary power points
OEM / ODM Customization
CANGO supports OEM and ODM service for this Four Sockets Ready Board. Socket quantity, enclosure design, branding, color, and packaging can be customized to match customer requirements.
Packaging & Delivery
Standard export packing is available for this Ready Board. Samples can be arranged for confirmation, and packaging details, lead time, and shipping terms can be provided upon request.
Installation Method
This model is designed for wall mounted installation. Different internal configurations and accessory options can be discussed based on application needs.
FAQ
Q: How many sockets does this ready board provide?
A: This model is designed with four sockets.
A: This model is designed with four sockets.
Q: Is this model suitable for project use?
A: Yes, it is suitable for residential and project power distribution.
A: Yes, it is suitable for residential and project power distribution.
Q: Is this model suitable for applications needing more outlet positions?
A: Yes, it is designed for projects requiring multiple socket outlets in one compact unit.
A: Yes, it is designed for projects requiring multiple socket outlets in one compact unit.
