GCS Low-Voltage Withdrawable Switchgear | CANGO

Low-Voltage Switchgear for B2B Electrical Projects
GCS Low-Voltage Withdrawable Switchgear is supplied for industrial power distribution. CANGO reviews rated data, drawings, quantity, destination, and configuration notes before quotation.
Model
GCS
Category
Low-Voltage Switchgear
Application
Industrial power distribution
Supply Type
Project quotation and technical support

Product Overview

GCS low-voltage withdrawable switchgear is used for power distribution, motor centralized control, and reactive power compensation. It is commonly used for industrial power distribution and motor centralized control, with the final selection based on rated data, drawings, and site conditions.

panel builders, EPC companies, electrical contractors, industrial users, and overseas distributors can request configuration review for withdrawable low-voltage switchgear for motor centralized control and reactive compensation. Please send main circuit scheme, busbar current, feeder arrangement, drawer or fixed cabinet structure, protection, and installation layout, quantity, destination, and any project standard requirements for quotation.

Model and Meaning

  • GCS: enclosed draw-out switchgear system
  • Confirm the main-circuit scheme number and auxiliary-circuit scheme number

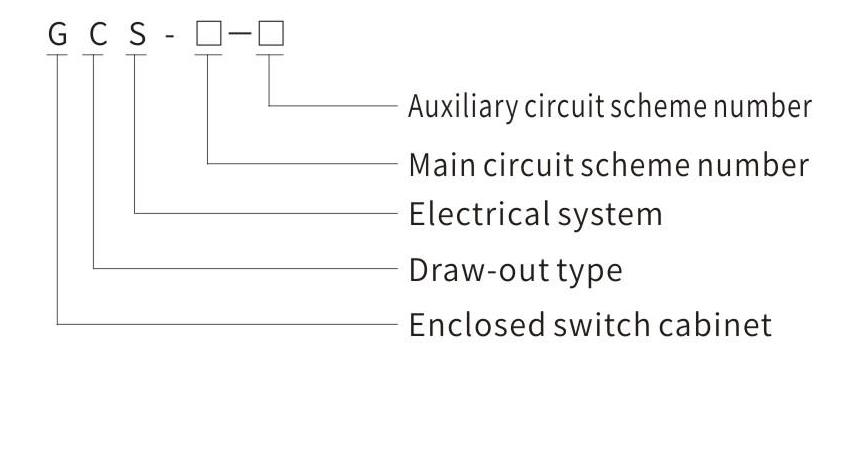

GCS low-voltage withdrawable switchgear model and meaning diagram

Key Features

01

Expandable Structure

GCS: Cabinet arrangement can be planned for incoming, feeder, MCC, compensation, and distribution circuits. This point is especially relevant to withdrawable low-voltage switchgear for motor centralized control and reactive compensation.
02

Safe Distribution

Busbar rating, branch protection, drawer or fixed arrangement, and grounding requirements are reviewed before supply. For GCS, check this together with the selected project scheme.
03

Industrial Control

The system can support motor control, lighting, power conversion, and low-voltage distribution projects. On GCS, confirm the application duty, site layout, and project standard before selection.
04

IEC-Oriented Review

Applicable IEC or project standards should be confirmed with component selection and testing requirements. Use the GCS drawings and rated data to confirm this point before quotation.
05

Maintenance Access

Operation space, cable entry, drawer movement, and compartment access are considered during layout review. For GCS, review this with withdrawable low-voltage switchgear for motor centralized control and reactive compensation and the final installation plan.

Technical Specifications

GCS Technical Parameter Table
Review the GCS rated data, selected configuration, and project requirements before quotation.
GroupItemUnitParameter
Main circuit rated voltageVAC 380 (400) / 660
Auxiliary circuit rated voltageVAC 220 / 380 (400); DC 110 / 220
Rated frequencyHz50 (60)
Rated insulation voltageV660 (1000)
Rated currentHorizontal busbarA<= 4000
Vertical busbar (MCC)A1000
Busbar rated short-time withstand currentkA / 1 s50 / 80
Busbar rated peak withstand currentkA / 0.1 s105 / 176
Power-frequency test voltageMain circuitV / 1 min2500
Auxiliary circuitV / 1 min1760
BusbarThree-phase four-wire systemA.B.C.PEN
Three-phase five-wire systemA.B.C.PE.N
Protection levelIP30 / IP40

Installation Dimensions / Drawing

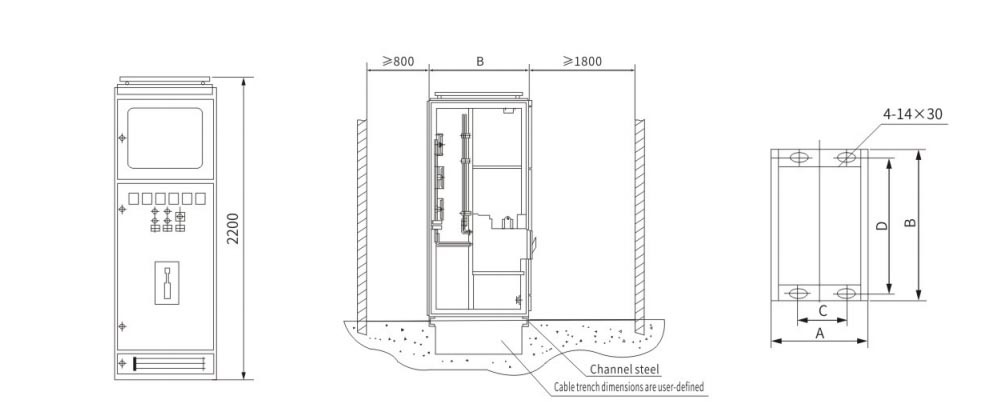

GCS low-voltage withdrawable switchgear installation dimensions drawing
GCS Low-Voltage Withdrawable Switchgear installation-dimension or outline-dimension drawing for project layout review.

Applications

GCS is mainly selected for industrial power distribution and motor centralized control. The final application should match the confirmed withdrawable low-voltage switchgear for motor centralized control and reactive compensation, rated data, and site installation conditions.
  • Industrial power distribution
  • Motor centralized control
  • Reactive power compensation projects

Customization Options

Incoming and Feeder Scheme

Main incoming, outgoing feeders, MCC drawers, compensation circuits, and metering can be arranged by project drawing. Apply this review to GCS and its withdrawable low-voltage switchgear for motor centralized control and reactive compensation.

Drawer or Fixed Type

Withdrawable, fixed, or mixed cabinet structures can be reviewed according to operation and maintenance requirements. Apply this review to GCS and its withdrawable low-voltage switchgear for motor centralized control and reactive compensation.

Component Selection

Breaker, contactor, relay, meter, protection, and control component requirements should be stated in the inquiry. Apply this review to GCS and its withdrawable low-voltage switchgear for motor centralized control and reactive compensation.

IEC Standard Review

IEC-related requirements can be reviewed together with component brand, test documents, and project acceptance conditions. Apply this review to GCS and its withdrawable low-voltage switchgear for motor centralized control and reactive compensation.

Expandability and Safety

Expandable Circuits

Feeder, MCC, compensation, and metering sections can be arranged for future system expansion when required. Apply this review to GCS and its withdrawable low-voltage switchgear for motor centralized control and reactive compensation.

Safety Review

Busbar rating, protection coordination, grounding, drawer operation, and maintenance access should be reviewed before supply. Apply this review to GCS and its withdrawable low-voltage switchgear for motor centralized control and reactive compensation.

IEC Standards Review

Project Standard

State the applicable IEC or local standard requirements, component brand, testing scope, and acceptance documents in the inquiry. Apply this review to GCS and its withdrawable low-voltage switchgear for motor centralized control and reactive compensation.

Factory Review

The final cabinet scheme should be checked against the confirmed standard, wiring diagram, and project operating conditions. Apply this review to GCS and its withdrawable low-voltage switchgear for motor centralized control and reactive compensation.

Ordering Instructions / Information Required for Quotation

ForGCS, send main circuit scheme, busbar current, feeder arrangement, drawer or fixed cabinet structure, protection, and installation layout, quantity, destination, and the expected delivery schedule. The engineering review will be based on the selected withdrawable low-voltage switchgear for motor centralized control and reactive compensation and project drawing.

ORDERING INSTRUCTIONS

  • Provide the full product model, including the main-circuit and auxiliary-circuit scheme numbers.
  • Provide the main-circuit system combination sequence diagram and auxiliary-circuit electrical schematic.
  • Provide the cabinet component list, circuit-setting parameters, and any special requirements outside normal use conditions.

Technical Support & Documentation

FAQ

What applications is GCS used for?
GCS is used for Industrial power distribution, Motor centralized control, Reactive power compensation projects. The final selection should match the project voltage, current, circuit arrangement, and installation conditions.
Which buyers commonly source GCS?
panel builders, EPC companies, electrical contractors, industrial users, and overseas distributors commonly use this product for project-based electrical distribution, installation, replacement, or system expansion work.
Which rated voltage or current should be confirmed for GCS?
Confirm the rated voltage, rated current, short-circuit level, frequency, protection level, and configuration shown in the technical specifications before quotation.
CanGCS be configured for a specific project?
Yes.CANGO can review project-specific configurations according to drawings, rated data, protection requirements, component requirements, and site conditions before quotation.
Which standards should be confirmed?
Applicable standards depend on the project and destination market. State IEC, local utility, component, testing, or documentation requirements in the inquiry.
What installation information is required?
GCS has an installation-dimension or outline-dimension image for layout review. The final drawing should still be confirmed according to the selected configuration.
What information is needed for quotation?
For quotation, send main circuit diagram or low-voltage distribution scheme, rated voltage, busbar current, and feeder current, incoming, outgoing, mcc, compensation, and metering circuit quantity, drawer type, fixed type, or mixed cabinet requirement, quantity, project country, delivery requirement, and any special component or environmental requirements.
How is delivery time confirmed for GCS?
Delivery time depends on the confirmed configuration, quantity, component selection, documentation requirement, and production schedule. Share the project deadline during inquiry.

Related Products

Contact / Inquiry CTA

Send project data for GCS. The fields below are the recommended information for quotation and technical review.
Use the buttons below to send the project request by email or open the contact page. If you have drawings, attach the file in the email or share a file link in the message.

Request Quotation for GCS

This is project-based power distribution equipment. Share the single-line diagram, rated data, cabinet arrangement, quantity, and destination, and CANGO will review the configuration before quotation.
