Low-Voltage Switchgear for B2B Electrical Projects
MNS Low-Voltage Withdrawable Switchgear is supplied for power plants and substations. CANGO reviews rated data, drawings, quantity, destination, and configuration notes before quotation.
Model
MNS
Category
Low-Voltage Switchgear
Application
Power plants and substations
Supply Type
Project quotation and technical support
Product Overview
MNS low-voltage withdrawable switchgear is a modular distribution cabinet for power generation, transmission, distribution, energy conversion, and energy consumption equipment. It is commonly used for power plants and substations and industrial and commercial distribution systems, with the final selection based on rated data, drawings, and site conditions.
panel builders, EPC companies, electrical contractors, industrial users, and overseas distributors can request configuration review for low voltage withdrawable switchgear. Please send main circuit scheme, busbar current, feeder arrangement, drawer or fixed cabinet structure, protection, and installation layout, quantity, destination, and any project standard requirements for quotation.

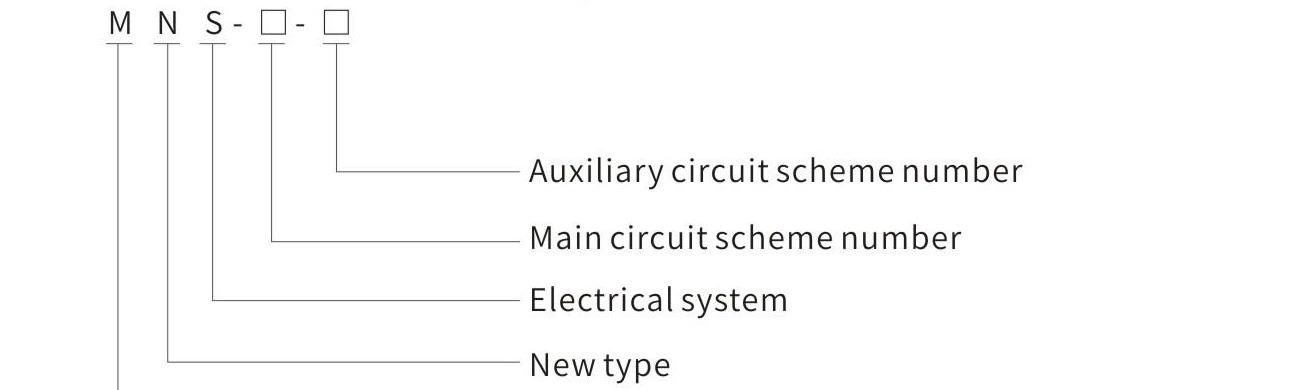

Model and Meaning
Key Features
01
Expandable Structure
MNS: Cabinet arrangement can be planned for incoming, feeder, MCC, compensation, and distribution circuits. This point is especially relevant to low voltage withdrawable switchgear.
02
Safe Distribution
Busbar rating, branch protection, drawer or fixed arrangement, and grounding requirements are reviewed before supply. For MNS, check this together with the selected project scheme.
03
Industrial Control
The system can support motor control, lighting, power conversion, and low-voltage distribution projects. On MNS, confirm the application duty, site layout, and project standard before selection.
04
IEC-Oriented Review
Applicable IEC or project standards should be confirmed with component selection and testing requirements. Use the MNS drawings and rated data to confirm this point before quotation.
05
Maintenance Access
Operation space, cable entry, drawer movement, and compartment access are considered during layout review. For MNS, review this with low voltage withdrawable switchgear and the final installation plan.
Technical Specifications
MNS Technical Parameter Table
Review the MNS rated data, selected configuration, and project requirements before quotation.
| Group | Item | Unit | Parameter |
|---|---|---|---|
| Rated insulation voltage | V | 660 | |
| Rated operational voltage | V | 380 / 660 | |
| Maximum operating current of the main busbar | A | 5000 | |
| Rated withstand current of main busbar | kA | 100 | |
| Rated peak withstand current of main busbar | kA | 220 | |
| Maximum operating current of distribution busbar (vertical busbar) | A | 1000 | |
| Peak current of distribution busbar (vertical busbar) | kA | 80 | |
| Standard type | kA | 105 (maximum value) | |
| Enhanced | kA | 176 (maximum value) |

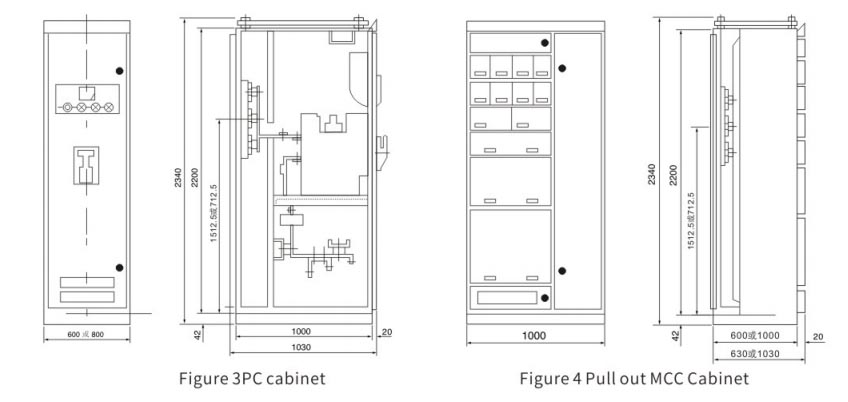

Installation Dimensions / Drawing
Applications
MNS is mainly selected for power plants and substations and industrial and commercial distribution systems. The final application should match the confirmed low voltage withdrawable switchgear, rated data, and site installation conditions.
- Power plants and substations
- Industrial and commercial distribution systems
- Projects requiring modular low-voltage withdrawable switchgear
Customization Options
Incoming and Feeder Scheme
Main incoming, outgoing feeders, MCC drawers, compensation circuits, and metering can be arranged by project drawing. Apply this review to MNS and its low voltage withdrawable switchgear.
Drawer or Fixed Type
Withdrawable, fixed, or mixed cabinet structures can be reviewed according to operation and maintenance requirements. Apply this review to MNS and its low voltage withdrawable switchgear.
Component Selection
Breaker, contactor, relay, meter, protection, and control component requirements should be stated in the inquiry. Apply this review to MNS and its low voltage withdrawable switchgear.
IEC Standard Review
IEC-related requirements can be reviewed together with component brand, test documents, and project acceptance conditions. Apply this review to MNS and its low voltage withdrawable switchgear.
Expandability and Safety
Expandable Circuits
Feeder, MCC, compensation, and metering sections can be arranged for future system expansion when required. Apply this review to MNS and its low voltage withdrawable switchgear.
Safety Review
Busbar rating, protection coordination, grounding, drawer operation, and maintenance access should be reviewed before supply. Apply this review to MNS and its low voltage withdrawable switchgear.
IEC Standards Review
Project Standard
State the applicable IEC or local standard requirements, component brand, testing scope, and acceptance documents in the inquiry. Apply this review to MNS and its low voltage withdrawable switchgear.
Factory Review
The final cabinet scheme should be checked against the confirmed standard, wiring diagram, and project operating conditions. Apply this review to MNS and its low voltage withdrawable switchgear.
Ordering Instructions / Information Required for Quotation
ForMNS, send main circuit scheme, busbar current, feeder arrangement, drawer or fixed cabinet structure, protection, and installation layout, quantity, destination, and the expected delivery schedule. The engineering review will be based on the selected low voltage withdrawable switchgear and project drawing.
ORDERING INSTRUCTIONS
- Provide the main-circuit single-line system diagram.
- Provide the schematic diagram or wiring diagram.
- List detailed specifications and quantities of the electrical equipment installed in each cabinet.
- Provide the switchgear arrangement, combination, and layout plan.
Technical Support & Documentation
Series Technical DocumentRequest the series technical document for modular low voltage withdrawable switchgear supplier and compare MNS with related models and confirmed technical data.Project Technical SupportSend project data for low voltage drawer switchgear manufacturer so CANGO can review rated values, configuration notes, and application conditions.Send Single Line DiagramShare the single-line diagram or layout when checking mcc distribution switchgear factory for the selected MNSconfiguration.Engineering ConsultationDiscuss site conditions, documentation needs, and quotation details for power distribution withdrawable cabinet exporter.
