CANGO supplies APF active power filter for electrical distribution projects. Review product details and request quotation support.
Quantity :
CANGO Product Detail
APF Active Power Filter | CANGO
Power Quality and DC Systems for B2B Electrical Projects
APF Active Power Filter is supplied for harmonic control. CANGO reviews rated data, drawings, quantity, destination, and configuration notes before quotation.
Model
APF
Category
Power Quality and DC Systems
Application
Harmonic control
Supply Type
Project quotation and technical support
Product Overview
APF active power filter is intended for harmonic control and power quality improvement. It is commonly used for harmonic control and reactive power compensation, with the final selection based on rated data, drawings, and site conditions.
electrical contractors, industrial plant engineers, EPC companies, maintenance teams, and project distributors can request configuration review for active power filter. Please send system voltage, compensation or filtering capacity, control logic, monitoring requirements, cabinet quantity, and wiring diagram, quantity, destination, and any project standard requirements for quotation.

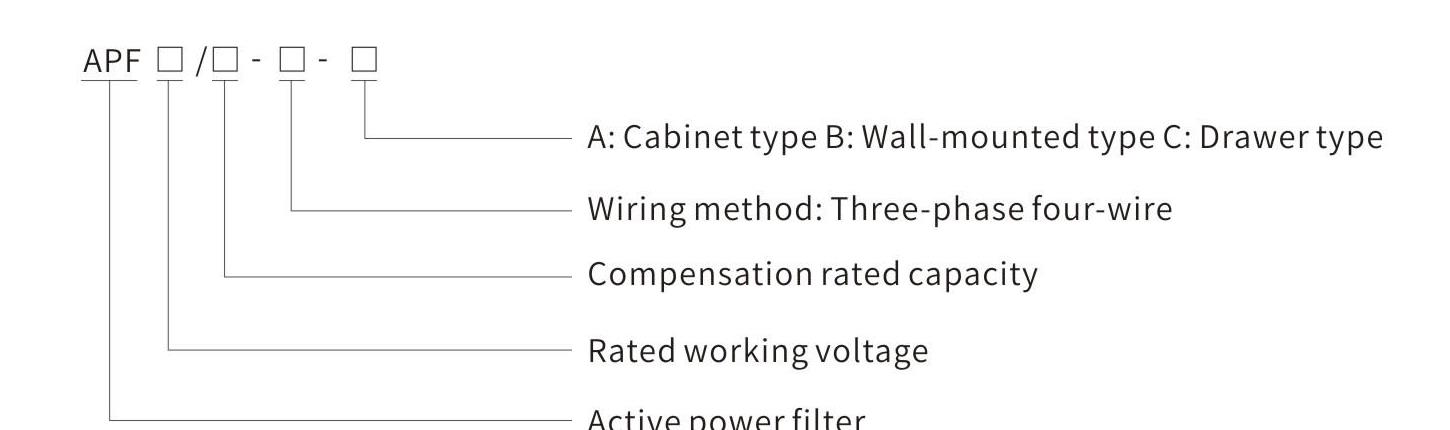

Model and Meaning
Key Features
01
Power Stability
APF: The system can support compensation, filtering, control power, or monitoring needs according to project operating conditions. This point is especially relevant to active power filter.
02
Monitoring Options
Controller, communication, metering, and alarm requirements can be reviewed before final configuration. For APF, check this together with the selected project scheme.
03
Project-Matched Capacity
Capacity, current, voltage, and control logic should be selected according to the distribution system data. On APF, confirm the application duty, site layout, and project standard before selection.
04
Reliable Operation
Protection, ventilation, wiring, and cabinet layout are checked together for stable long-term operation. Use the APF drawings and rated data to confirm this point before quotation.
05
Technical Review
Drawings and system parameters help confirm whether the solution matches the actual electrical environment. For APF, review this with active power filter and the final installation plan.
Technical Specifications
APF Technical Parameter Table
Review the APF rated data, selected configuration, and project requirements before quotation.
| Group | Item | Unit | Parameter |
|---|---|---|---|
| Wiring method | Three-phase four-wire | ||
| Working voltage | V | 380 + / -20% | |
| Working frequency | Hz | 50 / 60 | |
| Dynamic full response time | Open loop <= 5 ms; closed loop <= 10 ms | ||
| Function | Harmonic control, reactive power compensation, reactive power and spectrum wave | ||
| Loss | < 3% | ||
| Filtrate range | 2-51 times | ||
| Filtering effect | Filtration rate >90% | ||
| Protection type | Short circuit, undervoltage, overload, phase loss, overvoltage, overhumidity, and overcurrent protection | ||
| Protection level | IP30; other IP levels can be customized | ||
| Cooling method | Forced air cooling | ||
| Working environment temperature | -25 to +40 degC | ||
| Working environment humidity | <= 90% RH without condensation | ||
| Storage environment temperature | -40 to +65 degC | ||
| Altitude | <= 2000 m; derating by 1% / 100 m if exceeded | ||
| Installation environment | Indoor installation, without fire, explosion, chemical corrosion, conductive dust, and away from vibration | ||
| Communication mode | Photoelectric communication | ||
| Installation method | Wall-mounted / draw-out / cabinet | ||
| Compensation current size | A | 30-1200 |
Installation Dimensions / Drawing
ForAPF, confirm the cabinet outline, ventilation space, wiring path, component arrangement, and control interface drawing. Use the confirmed technical table, project drawing, and site installation plan as the final dimensional reference before ordering or installation.
Applications
APF is mainly selected for harmonic control and reactive power compensation. The final application should match the confirmed active power filter, rated data, and site installation conditions.
- Harmonic control
- Reactive power compensation
- Industrial projects requiring power quality improvement
Customization Options
Control Mode
Automatic control, manual control, communication, and monitoring options can be reviewed with the project wiring diagram. Apply this review to APF and its active power filter.
Capacity Selection
Compensation, filtering, DC output, or monitoring capacity should be matched with system voltage and load condition. Apply this review to APF and its active power filter.
Protection Devices
Fuse, breaker, surge protection, overvoltage, undervoltage, and alarm options can be selected by application. Apply this review to APF and its active power filter.
Cabinet Layout
Ventilation, wiring path, component arrangement, and maintenance access should be checked before final production. Apply this review to APF and its active power filter.
Monitoring and Stability
Monitoring Review
Controller, display, communication, alarms, and system monitoring options can be reviewed by project requirements. Apply this review to APF and its active power filter.
Stability Support
Compensation, filtering, DC control power, and protection functions should match the site operating condition. Apply this review to APF and its active power filter.
Efficiency and Reliability
Efficient Operation
Capacity, control logic, switching method, and load profile should be checked to support stable operation. Apply this review to APF and its active power filter.
Reliable Layout
Ventilation, wiring, component arrangement, and protection devices should be confirmed before final cabinet production. Apply this review to APF and its active power filter.
Ordering Instructions / Information Required for Quotation
ForAPF, send system voltage, compensation or filtering capacity, control logic, monitoring requirements, cabinet quantity, and wiring diagram, quantity, destination, and the expected delivery schedule. The engineering review will be based on the selected active power filter and project drawing.
ORDERING INSTRUCTIONS
- State the required APF configuration, quantity, project destination, and intended application.
- Provide rated voltage, required capacity or current, control logic, wiring diagram, cabinet quantity, and installation environment for technical review.
- Confirm confirm the cabinet outline, ventilation space, wiring path, component arrangement, and control interface drawing before final production or installation planning.
- List any special environmental, wiring, communication, metering, protection, or component requirements in the inquiry.
Technical Support & Documentation
Series Technical DocumentRequest the series technical document for active power filter supplier and compare APF with related models and confirmed technical data.Project Technical SupportSend project data for harmonic filter cabinet manufacturer so CANGO can review rated values, configuration notes, and application conditions.Send Single Line DiagramShare the single-line diagram or layout when checking power quality filter device factory for the selected APFconfiguration.Engineering ConsultationDiscuss site conditions, documentation needs, and quotation details for reactive harmonic compensation unit exporter.
