Model No: SG(B)100
SG(B)10 H-Class Dry-Type Transformer | CANGO
CANGO supplies SG(B)10 H-Class Three-Phase Dry-Type Power Transformer for commercial and industrial electrical projects. Send rated data, drawings.
Quantity :
CANGO Product Detail
SG(B)10 H-Class Dry-Type Transformer | CANGO
Power Transformers for B2B Electrical Projects
SG(B)10 H-Class Three-Phase Dry-Type Power Transformer is supplied for commercial and industrial electrical projects. CANGO reviews rated data, drawings, quantity, destination, and configuration notes before quotation.
Model
SG(B)10
Category
Power Transformers
Application
Commercial and industrial electrical projects
Supply Type
Project quotation and technical support
Product Overview
SG(B)10 H-class three-phase dry-type power transformer is intended for power distribution projects requiring a dry-type transformer configuration. It is commonly used for commercial and industrial electrical projects and indoor power distribution systems, with the final selection based on rated data, drawings, and site conditions.
utilities, EPC contractors, transformer distributors, industrial project owners, and electrical engineering companies can request configuration review for h class dry type transformer. Please send capacity, voltage combination, tap range, connection group, cooling or insulation type, loss data, impedance, and installation environment, quantity, destination, and any project standard requirements for quotation.

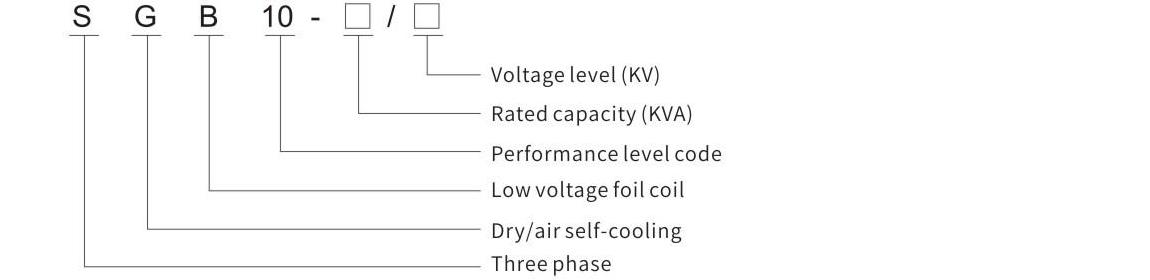

Model and Meaning
Key Features
01
Capacity Selection
SG(B)10: Capacity, high-voltage and low-voltage combination, tap range, and connection group are confirmed before quotation. This point is especially relevant to h class dry type transformer.
02
Cooling and Insulation
Oil-immersed, dry-type, amorphous alloy, and H-class requirements are reviewed according to installation conditions. For SG(B)10, check this together with the selected project scheme.
03
Loss Data Review
No-load loss, load loss, impedance, and efficiency-related data should be matched with the selected capacity. On SG(B)10, confirm the application duty, site layout, and project standard before selection.
04
Project Installation
Foundation, lifting, terminal position, ventilation, and clearance requirements need confirmation before delivery. Use the SG(B)10 drawings and rated data to confirm this point before quotation.
05
Application Flexibility
Transformer selection can support utility, industrial, commercial, indoor, outdoor, and renewable-energy projects. For SG(B)10, review this with h class dry type transformer and the final installation plan.
Technical Specifications
Main Product Performance Parameters of SG(B)10 6/10 kV H-Class Dry-Type Transformer
| Model | Rated capacity (kVA) | Connection group | High voltage (kV) | Tap range (%) | Low voltage (kV) | No-load loss (kW) | Load loss (kW) | No-load current (%) | Short-circuit impedance (%) |
|---|---|---|---|---|---|---|---|---|---|
| SG(B)30 | 30 | Dyn11 / Yyn0 | 6 / 6.3 / 6.6 / 10 / 10.5 / 11 | +/-2.5% / +/-5%; selected capacities +/-2 x 2.5% / +/-5% | 0.4 | 0.19 | 0.76 | 2 | 4 |
| SG(B)50 | 50 | Dyn11 / Yyn0 | 6 / 6.3 / 6.6 / 10 / 10.5 / 11 | +/-2.5% / +/-5%; selected capacities +/-2 x 2.5% / +/-5% | 0.4 | 0.27 | 1.07 | 2 | 4 |
| SG(B)80 | 80 | Dyn11 / Yyn0 | 6 / 6.3 / 6.6 / 10 / 10.5 / 11 | +/-2.5% / +/-5%; selected capacities +/-2 x 2.5% / +/-5% | 0.4 | 0.37 | 1.48 | 1.5 | 4 |
| SG(B)100 | 100 | Dyn11 / Yyn0 | 6 / 6.3 / 6.6 / 10 / 10.5 / 11 | +/-2.5% / +/-5%; selected capacities +/-2 x 2.5% / +/-5% | 0.4 | 0.4 | 1.69 | 1.5 | 4 |
| SG(B)125 | 125 | Dyn11 / Yyn0 | 6 / 6.3 / 6.6 / 10 / 10.5 / 11 | +/-2.5% / +/-5%; selected capacities +/-2 x 2.5% / +/-5% | 0.4 | 0.47 | 1.98 | 1.3 | 4 |
| SG(B)160 | 160 | Dyn11 / Yyn0 | 6 / 6.3 / 6.6 / 10 / 10.5 / 11 | +/-2.5% / +/-5%; selected capacities +/-2 x 2.5% / +/-5% | 0.4 | 0.54 | 2.28 | 1.3 | 4 |
| SG(B)200 | 200 | Dyn11 / Yyn0 | 6 / 6.3 / 6.6 / 10 / 10.5 / 11 | +/-2.5% / +/-5%; selected capacities +/-2 x 2.5% / +/-5% | 0.4 | 0.62 | 2.71 | 1.1 | 4 |
| SG(B)250 | 250 | Dyn11 / Yyn0 | 6 / 6.3 / 6.6 / 10 / 10.5 / 11 | +/-2.5% / +/-5%; selected capacities +/-2 x 2.5% / +/-5% | 0.4 | 0.72 | 2.96 | 1.1 | 4 |
| SG(B)315 | 315 | Dyn11 / Yyn0 | 6 / 6.3 / 6.6 / 10 / 10.5 / 11 | +/-2.5% / +/-5%; selected capacities +/-2 x 2.5% / +/-5% | 0.4 | 0.88 | 3.73 | 1 | 4 |
| SG(B)400 | 400 | Dyn11 / Yyn0 | 6 / 6.3 / 6.6 / 10 / 10.5 / 11 | +/-2.5% / +/-5%; selected capacities +/-2 x 2.5% / +/-5% | 0.4 | 0.98 | 4.28 | 1 | 4 |
| SG(B)500 | 500 | Dyn11 / Yyn0 | 6 / 6.3 / 6.6 / 10 / 10.5 / 11 | +/-2.5% / +/-5%; selected capacities +/-2 x 2.5% / +/-5% | 0.4 | 1.16 | 5.23 | 1 | 4 |
| SG(B)630 | 630 | Dyn11 / Yyn0 | 6 / 6.3 / 6.6 / 10 / 10.5 / 11 | +/-2.5% / +/-5%; selected capacities +/-2 x 2.5% / +/-5% | 0.4 | 1.34 | 6.29 | 0.85 | 4 |
| SG(B)630 | 630 | Dyn11 / Yyn0 | 6 / 6.3 / 6.6 / 10 / 10.5 / 11 | +/-2.5% / +/-5%; selected capacities +/-2 x 2.5% / +/-5% | 0.4 | 1.3 | 6.4 | 0.85 | 6 |
| SG(B)800 | 800 | Dyn11 / Yyn0 | 6 / 6.3 / 6.6 / 10 / 10.5 / 11 | +/-2.5% / +/-5%; selected capacities +/-2 x 2.5% / +/-5% | 0.4 | 1.52 | 7.46 | 0.85 | 6 |
| SG(B)1000 | 1000 | Dyn11 / Yyn0 | 6 / 6.3 / 6.6 / 10 / 10.5 / 11 | +/-2.5% / +/-5%; selected capacities +/-2 x 2.5% / +/-5% | 0.4 | 1.77 | 8.76 | 0.85 | 6 |
| SG(B)1250 | 1250 | Dyn11 / Yyn0 | 6 / 6.3 / 6.6 / 10 / 10.5 / 11 | +/-2.5% / +/-5%; selected capacities +/-2 x 2.5% / +/-5% | 0.4 | 2.09 | 10.3 | 0.85 | 6 |
| SG(B)1600 | 1600 | Dyn11 / Yyn0 | 6 / 6.3 / 6.6 / 10 / 10.5 / 11 | +/-2.5% / +/-5%; selected capacities +/-2 x 2.5% / +/-5% | 0.4 | 2.45 | 12.5 | 0.85 | 6 |
| SG(B)2000 | 2000 | Dyn11 / Yyn0 | 6 / 6.3 / 6.6 / 10 / 10.5 / 11 | +/-2.5% / +/-5%; selected capacities +/-2 x 2.5% / +/-5% | 0.4 | 3.05 | 15.5 | 0.7 | 6 |
| SG(B)2500 | 2500 | Dyn11 / Yyn0 | 6 / 6.3 / 6.6 / 10 / 10.5 / 11 | +/-2.5% / +/-5%; selected capacities +/-2 x 2.5% / +/-5% | 0.4 | 3.6 | 18.4 | 0.7 | 6 |
| SG(B)1600 | 1600 | Dyn11 / Yyn0 | 6 / 6.3 / 6.6 / 10 / 10.5 / 11 | +/-2.5% / +/-5%; selected capacities +/-2 x 2.5% / +/-5% | 0.4 | 2.45 | 13.9 | 0.85 | 8 |
| SG(B)2000 | 2000 | Dyn11 / Yyn0 | 6 / 6.3 / 6.6 / 10 / 10.5 / 11 | +/-2.5% / +/-5%; selected capacities +/-2 x 2.5% / +/-5% | 0.4 | 3.05 | 17.1 | 0.7 | 8 |
| SG(B)2500 | 2500 | Dyn11 / Yyn0 | 6 / 6.3 / 6.6 / 10 / 10.5 / 11 | +/-2.5% / +/-5%; selected capacities +/-2 x 2.5% / +/-5% | 0.4 | 3.6 | 20.2 | 0.7 | 8 |
Load losses are stated for the reference temperature of the insulation system. The source uses the 180 degC (H-class) insulation-system data as the reference.
Main Product Performance Parameters of SG(B)10 35 kV H-Class Dry-Type Transformer
| Model | Rated capacity (kVA) | Connection group | High voltage (kV) | Tap range (%) | Low voltage (kV) | No-load loss (kW) | Load loss (kW) | No-load current (%) | Short-circuit impedance (%) |
|---|---|---|---|---|---|---|---|---|---|
| SG(B)50 | 50 | Dyn11 / Yyn0 | 20 / 22 / 24 | +/-2.5% / +/-5%; selected capacities +/-2 x 2.5% / +/-5% | 0.4 | 0.45 | 1.52 | 2.3 | 6 |
| SG(B)100 | 100 | Dyn11 / Yyn0 | 20 / 22 / 24 | +/-2.5% / +/-5%; selected capacities +/-2 x 2.5% / +/-5% | 0.4 | 0.63 | 2.23 | 2 | 6 |
| SG(B)160 | 160 | Dyn11 / Yyn0 | 20 / 22 / 24 | +/-2.5% / +/-5%; selected capacities +/-2 x 2.5% / +/-5% | 0.4 | 0.79 | 3 | 1.5 | 6 |
| SG(B)200 | 200 | Dyn11 / Yyn0 | 20 / 22 / 24 | +/-2.5% / +/-5%; selected capacities +/-2 x 2.5% / +/-5% | 0.4 | 0.88 | 3.55 | 1.5 | 6 |
| SG(B)250 | 250 | Dyn11 / Yyn0 | 20 / 22 / 24 | +/-2.5% / +/-5%; selected capacities +/-2 x 2.5% / +/-5% | 0.4 | 0.99 | 4.06 | 1.3 | 6 |
| SG(B)315 | 315 | Dyn11 / Yyn0 | 20 / 22 / 24 | +/-2.5% / +/-5%; selected capacities +/-2 x 2.5% / +/-5% | 0.4 | 1.17 | 4.82 | 1.3 | 6 |
| SG(B)400 | 400 | Dyn11 / Yyn0 | 20 / 22 / 24 | +/-2.5% / +/-5%; selected capacities +/-2 x 2.5% / +/-5% | 0.4 | 1.37 | 5.79 | 1.1 | 6 |
| SG(B)500 | 500 | Dyn11 / Yyn0 | 20 / 22 / 24 | +/-2.5% / +/-5%; selected capacities +/-2 x 2.5% / +/-5% | 0.4 | 1.62 | 7.11 | 1.1 | 6 |
| SG(B)630 | 630 | Dyn11 / Yyn0 | 20 / 22 / 24 | +/-2.5% / +/-5%; selected capacities +/-2 x 2.5% / +/-5% | 0.4 | 1.86 | 8.23 | 1 | 6 |
| SG(B)800 | 800 | Dyn11 / Yyn0 | 20 / 22 / 24 | +/-2.5% / +/-5%; selected capacities +/-2 x 2.5% / +/-5% | 0.4 | 2.16 | 9.76 | 1 | 6 |
| SG(B)1000 | 1000 | Dyn11 / Yyn0 | 20 / 22 / 24 | +/-2.5% / +/-5%; selected capacities +/-2 x 2.5% / +/-5% | 0.4 | 2.43 | 11.1 | 0.75 | 6 |
| SG(B)1250 | 1250 | Dyn11 / Yyn0 | 20 / 22 / 24 | +/-2.5% / +/-5%; selected capacities +/-2 x 2.5% / +/-5% | 0.4 | 2.83 | 13.6 | 0.75 | 6 |
| SG(B)1600 | 1600 | Dyn11 / Yyn0 | 20 / 22 / 24 | +/-2.5% / +/-5%; selected capacities +/-2 x 2.5% / +/-5% | 0.4 | 3.24 | 16.5 | 0.75 | 6 |
| SG(B)2000 | 2000 | Dyn11 / Yyn0 | 20 / 22 / 24 | +/-2.5% / +/-5%; selected capacities +/-2 x 2.5% / +/-5% | 0.4 | 3.82 | 19.5 | 0.75 | 6 |
| SG(B)2500 | 2500 | Dyn11 / Yyn0 | 20 / 22 / 24 | +/-2.5% / +/-5%; selected capacities +/-2 x 2.5% / +/-5% | 0.4 | 4.45 | 23.3 | 0.75 | 6 |
The 20 / 22 / 24 kV high-voltage options are retained as printed in the 35 kV-class source table. The source uses the 180 degC (H-class) insulation-system data as the reference.
Installation Dimensions / Drawing
ForSG(B)10, confirm the capacity-specific outline dimensions, installation base, terminal position, cooling clearance, and lifting / handling requirements. Use the confirmed technical table, project drawing, and site installation plan as the final dimensional reference before ordering or installation.
Applications
SG(B)10 is mainly selected for commercial and industrial electrical projects and indoor power distribution systems. The final application should match the confirmed h class dry type transformer, rated data, and site installation conditions.
- Commercial and industrial electrical projects
- Indoor power distribution systems
- Projects requiring H-class dry-type transformers
Customization Options
Cooling Method
Oil-immersed, dry-type, natural cooling, forced-air, or special cooling requirements should be confirmed by model and site condition. Apply this review to SG(B)10 and its h class dry type transformer.
Winding Material
Copper or aluminum winding requirements should be confirmed when the project specification requires a fixed material. Apply this review to SG(B)10 and its h class dry type transformer.
Loss Data
No-load loss, load loss, impedance voltage, and efficiency information should be checked against the selected capacity. Apply this review to SG(B)10 and its h class dry type transformer.
Installation Method
Indoor, outdoor, foundation, ventilation, lifting, terminal position, and clearance requirements should be provided before quotation. Apply this review to SG(B)10 and its h class dry type transformer.
Cooling Method and Winding Material
Cooling Review
Confirm oil-immersed, dry-type, natural cooling, forced-air, or other cooling requirements according to the installation site. Apply this review to SG(B)10 and its h class dry type transformer.
Winding Requirement
State copper or aluminum winding requirements when the project specification defines the material. Apply this review to SG(B)10 and its h class dry type transformer.
Loss Data and Efficiency Information
Performance Data
No-load loss, load loss, impedance, noise, and temperature rise should be reviewed for the selected capacity. Apply this review to SG(B)10 and its h class dry type transformer.
Efficiency Review
Energy-efficiency level or local efficiency requirements should be confirmed before quotation if required by the project. Apply this review to SG(B)10 and its h class dry type transformer.
Ordering Instructions / Information Required for Quotation
ForSG(B)10, send capacity, voltage combination, tap range, connection group, cooling or insulation type, loss data, impedance, and installation environment, quantity, destination, and the expected delivery schedule. The engineering review will be based on the selected h class dry type transformer and project drawing.
ORDERING INSTRUCTIONS
- State the required SG(B)10 configuration, quantity, project destination, and intended application.
- Provide capacity, voltage combination, tap range, connection group, impedance, loss data, cooling or insulation type, and installation environment for technical review.
- Confirm confirm the capacity-specific outline dimensions, installation base, terminal position, cooling clearance, and lifting / handling requirements before final production or installation planning.
- List any special environmental, wiring, communication, metering, protection, or component requirements in the inquiry.
Technical Support & Documentation
Series Technical DocumentRequest the series technical document for h class dry type transformer supplier and compare SG(B)10 with related models and confirmed technical data.Project Technical SupportSend project data for three phase dry type transformer manufacturer so CANGO can review rated values, configuration notes, and application conditions.Send Single Line DiagramShare the single-line diagram or layout when checking 6kv 10kv dry transformer factory for the selected SG(B)10configuration.Engineering ConsultationDiscuss site conditions, documentation needs, and quotation details for high temperature dry transformer exporter.
FAQ
Related Products
S11-M Fully Sealed Oil-Immersed Power TransformerS11-M Fully Sealed Oil-Immersed Power Transformer for utility power distribution.S13-M Oil-Immersed Power TransformerS13-M Oil-Immersed Power Transformer for utility distribution networks.S20-M-NX2 Level 2 Energy-Efficiency Oil-Immersed TransformerS20-M-NX2 Level 2 Energy-Efficiency Oil-Immersed Transformer for utility distribution networks.S22-M-NX1 Level 1 Energy-Efficiency Oil-Immersed TransformerS22-M-NX1 Level 1 Energy-Efficiency Oil-Immersed Transformer for utility distribution networks.
Contact / Inquiry CTA
Send project data for SG(B)10. The fields below are the recommended information for quotation and technical review.
Use the buttons below to send the project request by email or open the contact page. If you have drawings, attach the file in the email or share a file link in the message.
Request Quotation for SG(B)10
This is project-based power distribution equipment. Share the single-line diagram, rated data, cabinet arrangement, quantity, and destination, and CANGO will review the configuration before quotation.
