Model No: SC(B)12

SC(B)12 Dry-Type Power Transformer | CANGO

CANGO supplies SC(B)12 Dry-Type Power Transformer for commercial and industrial electrical projects. Send rated data, drawings, quantity, and destination.

Quantity :

add to cart

Contact Now

CANGO Product Detail

SC(B)12 Dry-Type Power Transformer | CANGO

Power Transformers for B2B Electrical Projects

SC(B)12 Dry-Type Power Transformer is supplied for commercial and industrial electrical projects. CANGO reviews rated data, drawings, quantity, destination, and configuration notes before quotation.

Model

SC(B)12

Product Overview

SC(B)12 dry-type power transformer is presented in the technical document as an energy-saving dry-type transformer option. It is commonly used for commercial and industrial electrical projects and indoor distribution systems, with the final selection based on rated data, drawings, and site conditions.

utilities, EPC contractors, transformer distributors, industrial project owners, and electrical engineering companies can request configuration review for dry type transformer. Please send capacity, voltage combination, tap range, connection group, cooling or insulation type, loss data, impedance, and installation environment, quantity, destination, and any project standard requirements for quotation.

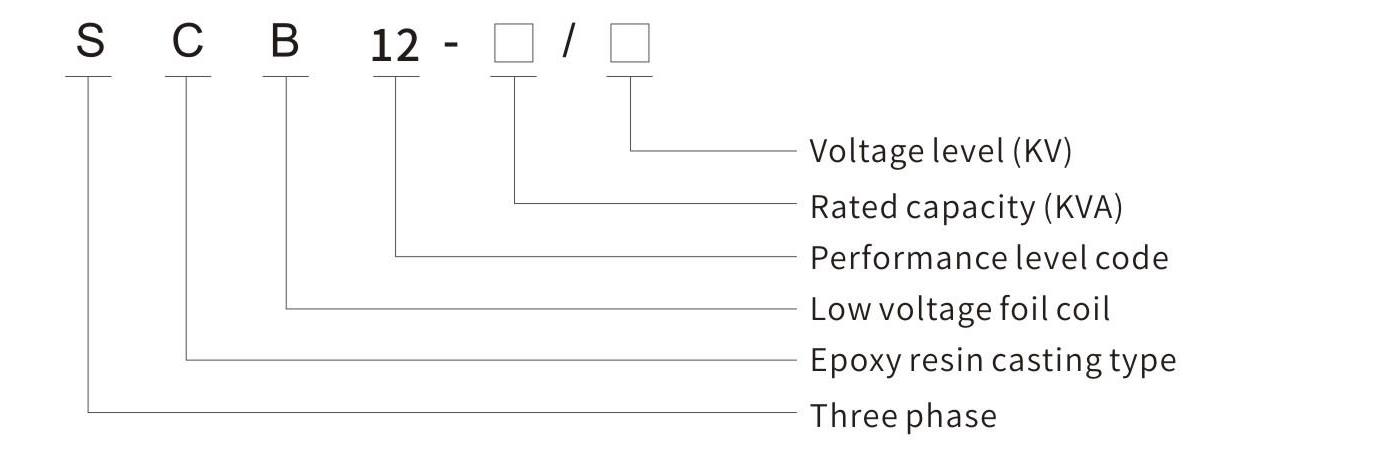

Model and Meaning

Key Features

Capacity Selection

SC(B)12: Capacity, high-voltage and low-voltage combination, tap range, and connection group are confirmed before quotation. This point is especially relevant to dry type transformer.

Cooling and Insulation

Oil-immersed, dry-type, amorphous alloy, and H-class requirements are reviewed according to installation conditions. For SC(B)12, check this together with the selected project scheme.

Loss Data Review

No-load loss, load loss, impedance, and efficiency-related data should be matched with the selected capacity. On SC(B)12, confirm the application duty, site layout, and project standard before selection.

Project Installation

Foundation, lifting, terminal position, ventilation, and clearance requirements need confirmation before delivery. Use the SC(B)12 drawings and rated data to confirm this point before quotation.

Application Flexibility

Transformer selection can support utility, industrial, commercial, indoor, outdoor, and renewable-energy projects. For SC(B)12, review this with dry type transformer and the final installation plan.

Technical Specifications

Main Product Performance Parameters of SC(B)12 10 kV Dry-Type Transformer

Model	Rated capacity (kVA)	Connection group	High voltage (kV)	Tap range (%)	Low voltage (kV)	No-load current (%)	No-load loss (W)	Load loss B-class (W)	Load loss F-class (W)	Load loss H-class (W)	Short-circuit impedance (%)
SC(B)12-30	30	Dyn11 / Yyn0	6 / 6.3 / 6.6 / 10 / 10.5 / 11	+/-2.5% / +/-5%; selected capacities +/-2 x 2.5% / +/-5%	0.4	2	150	670	710	760	4
SC(B)12-50	50	Dyn11 / Yyn0	6 / 6.3 / 6.6 / 10 / 10.5 / 11	+/-2.5% / +/-5%; selected capacities +/-2 x 2.5% / +/-5%	0.4	2	215	940	1000	1070	4
SC(B)12-80	80	Dyn11 / Yyn0	6 / 6.3 / 6.6 / 10 / 10.5 / 11	+/-2.5% / +/-5%; selected capacities +/-2 x 2.5% / +/-5%	0.4	1.5	295	1290	1380	1480	4
SC(B)12-100	100	Dyn11 / Yyn0	6 / 6.3 / 6.6 / 10 / 10.5 / 11	+/-2.5% / +/-5%; selected capacities +/-2 x 2.5% / +/-5%	0.4	1.5	320	1480	1570	1690	4
SC(B)12-125	125	Dyn11 / Yyn0	6 / 6.3 / 6.6 / 10 / 10.5 / 11	+/-2.5% / +/-5%; selected capacities +/-2 x 2.5% / +/-5%	0.4	1.3	375	1740	1850	1980	4
SC(B)12-160	160	Dyn11 / Yyn0	6 / 6.3 / 6.6 / 10 / 10.5 / 11	+/-2.5% / +/-5%; selected capacities +/-2 x 2.5% / +/-5%	0.4	1.3	430	2000	2130	2280	4
SC(B)12-200	200	Dyn11 / Yyn0	6 / 6.3 / 6.6 / 10 / 10.5 / 11	+/-2.5% / +/-5%; selected capacities +/-2 x 2.5% / +/-5%	0.4	1.1	495	2370	2530	2710	4
SC(B)12-250	250	Dyn11 / Yyn0	6 / 6.3 / 6.6 / 10 / 10.5 / 11	+/-2.5% / +/-5%; selected capacities +/-2 x 2.5% / +/-5%	0.4	1.1	575	2590	2760	2960	4
SC(B)12-315	315	Dyn11 / Yyn0	6 / 6.3 / 6.6 / 10 / 10.5 / 11	+/-2.5% / +/-5%; selected capacities +/-2 x 2.5% / +/-5%	0.4	1	705	3270	3470	3730	4
SC(B)12-400	400	Dyn11 / Yyn0	6 / 6.3 / 6.6 / 10 / 10.5 / 11	+/-2.5% / +/-5%; selected capacities +/-2 x 2.5% / +/-5%	0.4	1	785	3750	3990	4280	4
SC(B)12-500	500	Dyn11 / Yyn0	6 / 6.3 / 6.6 / 10 / 10.5 / 11	+/-2.5% / +/-5%; selected capacities +/-2 x 2.5% / +/-5%	0.4	1	930	4590	4880	5230	4
SC(B)12-630	630	Dyn11 / Yyn0	6 / 6.3 / 6.6 / 10 / 10.5 / 11	+/-2.5% / +/-5%; selected capacities +/-2 x 2.5% / +/-5%	0.4	0.85	1070	5530	5880	6290	4
SC(B)12-630	630	Dyn11 / Yyn0	6 / 6.3 / 6.6 / 10 / 10.5 / 11	+/-2.5% / +/-5%; selected capacities +/-2 x 2.5% / +/-5%	0.4	0.85	1040	5610	5960	6400	6
SC(B)12-800	800	Dyn11 / Yyn0	6 / 6.3 / 6.6 / 10 / 10.5 / 11	+/-2.5% / +/-5%; selected capacities +/-2 x 2.5% / +/-5%	0.4	0.85	1210	6550	6960	7460	6
SC(B)12-1000	1000	Dyn11 / Yyn0	6 / 6.3 / 6.6 / 10 / 10.5 / 11	+/-2.5% / +/-5%; selected capacities +/-2 x 2.5% / +/-5%	0.4	0.85	1410	7650	8130	8760	6
SC(B)12-1250	1250	Dyn11 / Yyn0	6 / 6.3 / 6.6 / 10 / 10.5 / 11	+/-2.5% / +/-5%; selected capacities +/-2 x 2.5% / +/-5%	0.4	0.85	1670	9100	9690	10300	6
SC(B)12-1600	1600	Dyn11 / Yyn0	6 / 6.3 / 6.6 / 10 / 10.5 / 11	+/-2.5% / +/-5%; selected capacities +/-2 x 2.5% / +/-5%	0.4	0.85	1960	11000	11700	12500	6
SC(B)12-2000	2000	Dyn11 / Yyn0	6 / 6.3 / 6.6 / 10 / 10.5 / 11	+/-2.5% / +/-5%; selected capacities +/-2 x 2.5% / +/-5%	0.4	0.7	2440	13600	14400	15500	6
SC(B)12-2500	2500	Dyn11 / Yyn0	6 / 6.3 / 6.6 / 10 / 10.5 / 11	+/-2.5% / +/-5%; selected capacities +/-2 x 2.5% / +/-5%	0.4	0.7	2880	16100	17100	18400	6
SC(B)12-1600	1600	Dyn11 / Yyn0	6 / 6.3 / 6.6 / 10 / 10.5 / 11	+/-2.5% / +/-5%; selected capacities +/-2 x 2.5% / +/-5%	0.4	0.85	1960	12200	12900	13900	8
SC(B)12-2000	2000	Dyn11 / Yyn0	6 / 6.3 / 6.6 / 10 / 10.5 / 11	+/-2.5% / +/-5%; selected capacities +/-2 x 2.5% / +/-5%	0.4	0.7	2440	15000	15900	17100	8
SC(B)12-2500	2500	Dyn11 / Yyn0	6 / 6.3 / 6.6 / 10 / 10.5 / 11	+/-2.5% / +/-5%; selected capacities +/-2 x 2.5% / +/-5%	0.4	0.7	2880	17700	18800	20200	8

Installation Dimensions / Drawing

ForSC(B)12, confirm the capacity-specific outline dimensions, installation base, terminal position, cooling clearance, and lifting / handling requirements. Use the confirmed technical table, project drawing, and site installation plan as the final dimensional reference before ordering or installation.

Applications

SC(B)12 is mainly selected for commercial and industrial electrical projects and indoor distribution systems. The final application should match the confirmed dry type transformer, rated data, and site installation conditions.

Commercial and industrial electrical projects
Indoor distribution systems
Projects requiring energy-saving dry-type transformer options

Customization Options

Cooling Method

Oil-immersed, dry-type, natural cooling, forced-air, or special cooling requirements should be confirmed by model and site condition. Apply this review to SC(B)12 and its dry type transformer.

Winding Material

Copper or aluminum winding requirements should be confirmed when the project specification requires a fixed material. Apply this review to SC(B)12 and its dry type transformer.

Loss Data

No-load loss, load loss, impedance voltage, and efficiency information should be checked against the selected capacity. Apply this review to SC(B)12 and its dry type transformer.

Installation Method

Indoor, outdoor, foundation, ventilation, lifting, terminal position, and clearance requirements should be provided before quotation. Apply this review to SC(B)12 and its dry type transformer.

Cooling Method and Winding Material

Cooling Review

Confirm oil-immersed, dry-type, natural cooling, forced-air, or other cooling requirements according to the installation site. Apply this review to SC(B)12 and its dry type transformer.

Winding Requirement

State copper or aluminum winding requirements when the project specification defines the material. Apply this review to SC(B)12 and its dry type transformer.

Loss Data and Efficiency Information

Performance Data

No-load loss, load loss, impedance, noise, and temperature rise should be reviewed for the selected capacity. Apply this review to SC(B)12 and its dry type transformer.

Efficiency Review

Energy-efficiency level or local efficiency requirements should be confirmed before quotation if required by the project. Apply this review to SC(B)12 and its dry type transformer.

Ordering Instructions / Information Required for Quotation

ForSC(B)12, send capacity, voltage combination, tap range, connection group, cooling or insulation type, loss data, impedance, and installation environment, quantity, destination, and the expected delivery schedule. The engineering review will be based on the selected dry type transformer and project drawing.

ORDERING INSTRUCTIONS

State the required SC(B)12 configuration, quantity, project destination, and intended application.
Provide capacity, voltage combination, tap range, connection group, impedance, loss data, cooling or insulation type, and installation environment for technical review.
Confirm confirm the capacity-specific outline dimensions, installation base, terminal position, cooling clearance, and lifting / handling requirements before final production or installation planning.
List any special environmental, wiring, communication, metering, protection, or component requirements in the inquiry.

Technical Support & Documentation

Series Technical DocumentRequest the series technical document for energy saving dry type transformer supplier and compare SC(B)12 with related models and confirmed technical data.Project Technical SupportSend project data for low loss dry type transformer manufacturer so CANGO can review rated values, configuration notes, and application conditions.Send Single Line DiagramShare the single-line diagram or layout when checking 10kv dry type transformer factory for the selected SC(B)12configuration.Engineering ConsultationDiscuss site conditions, documentation needs, and quotation details for low noise dry type transformer exporter.

FAQ

What applications is SC(B)12 used for?

SC(B)12 is used for Commercial and industrial electrical projects, Indoor distribution systems, Projects requiring energy-saving dry-type transformer options. The final selection should match the project voltage, current, circuit arrangement, and installation conditions.

Which buyers commonly source SC(B)12?

utilities, EPC contractors, transformer distributors, industrial project owners, and electrical engineering companies commonly use this product for project-based electrical distribution, installation, replacement, or system expansion work.

Which rated voltage or current should be confirmed for SC(B)12?

Confirm the rated voltage, rated current, short-circuit level, frequency, protection level, and configuration shown in the technical specifications before quotation.

CanSC(B)12 be configured for a specific project?

Yes.CANGO can review project-specific configurations according to drawings, rated data, protection requirements, component requirements, and site conditions before quotation.

Which standards should be confirmed?

Applicable standards depend on the project and destination market. State IEC, local utility, component, testing, or documentation requirements in the inquiry.

What installation information is required?

SC(B)12 should be matched with the final project drawing and outline data before installation. Send the cabinet scheme or layout requirement for review.

What information is needed for quotation?

For quotation, send transformer type and required capacity, high-voltage and low-voltage rated voltage, frequency, phase, tap range, and connection group, cooling method, insulation type, and winding material requirement, quantity, project country, delivery requirement, and any special component or environmental requirements.

How is delivery time confirmed for SC(B)12?

Delivery time depends on the confirmed configuration, quantity, component selection, documentation requirement, and production schedule. Share the project deadline during inquiry.
