Model No: KG-HY-D200D
2 Way Single Phase Din Rail Meter Box
CANGO supplies two way din rail meter enclosures with durable enclosure construction and reliable outdoor metering protection.
Quantity :
Cango Single Phase Two Way Din Rail Meter Enclosure
Introduction
CANGO supplies this Two Way Din Rail Meter Enclosure for multi-meter outdoor applications. Designed as a two way din rail meter enclosure, din rail meter enclosure, and outdoor meter enclosure, it offers practical installation, durable protection, and dependable service life.
Key Features
- Two way enclosure layout
- Din rail compatible design
- Durable housing structure
- Suitable for outdoor projects
- Practical installation
- Reliable enclosure protection
Product Advantages
This Two Way Din Rail Meter Enclosure is designed to provide dependable protection for outdoor metering systems that require multiple positions. With durable housing and practical layout, it helps improve installation efficiency and service life.
Application Scenarios
- Outdoor metering projects
- Utility distribution systems
- Residential electrical installations
- Pole-mounted meter protection
- Infrastructure applications
Products Parameters
| S.N. | PARAMETERS | KG-HY-D100D | KG-HY-D200D | KG-HY-D400D |
|---|---|---|---|---|
| 1 | Meter Type | Din Rail Meter | Din Rail Meter | Din Rail Meter |
| 2 | Meter Ways | 1 Way | 2 Way | 4 Way |
| 3 | Dimensions (HxWxD, mm) | 265*220*130 | 365*180*130 | 365x270x128 |
| 4 | Maximum operating temperature | 85℃ | ||
| 5 | Maximum relative humidity | 100% | ||
| 6 | Maximum annual rainfall | 2000 mm | ||
| 7 | Maximum altitude above mean sea level | 3000m | ||
| 8 | Water Absorption | ≤ 0.1% | ||
| 9 | protection level | IP54 | ||
| 10 | Resistance to mechanical shocks | IK09 | ||
| 11 | Flammability | UL94-V0 | ||
| 12 | Mechanical strength | Strength:64MPA Flexural strength:103MPA | ||
| 13 | Light transmission (Transparent window) | >88% | ||
| 14 | Heat Deflection | ≥158℃ | ||
| 15 | Heat resistant & Flame retardant (Glow Wire) | ≥750℃ & ≥960℃ | ||
| 16 | Installation type | Wall mounted / Pole mounted | ||
| 17 | Installation Location | Indoor / Outdoor | ||
OEM / ODM Customization
CANGO supports OEM and ODM service for this product. We can customize structure, material, color, logo, packaging, lock design, and internal accessory configuration according to project requirements.
Packaging & Delivery
Standard export packing is available for this meter box. Samples can be arranged for testing and confirmation. Please contact us for lead time, packaging details, and shipping solutions.
Standard export packing is available for this meter box. Samples can be arranged for testing and confirmation. Please contact us for lead time, packaging details, and shipping solutions.

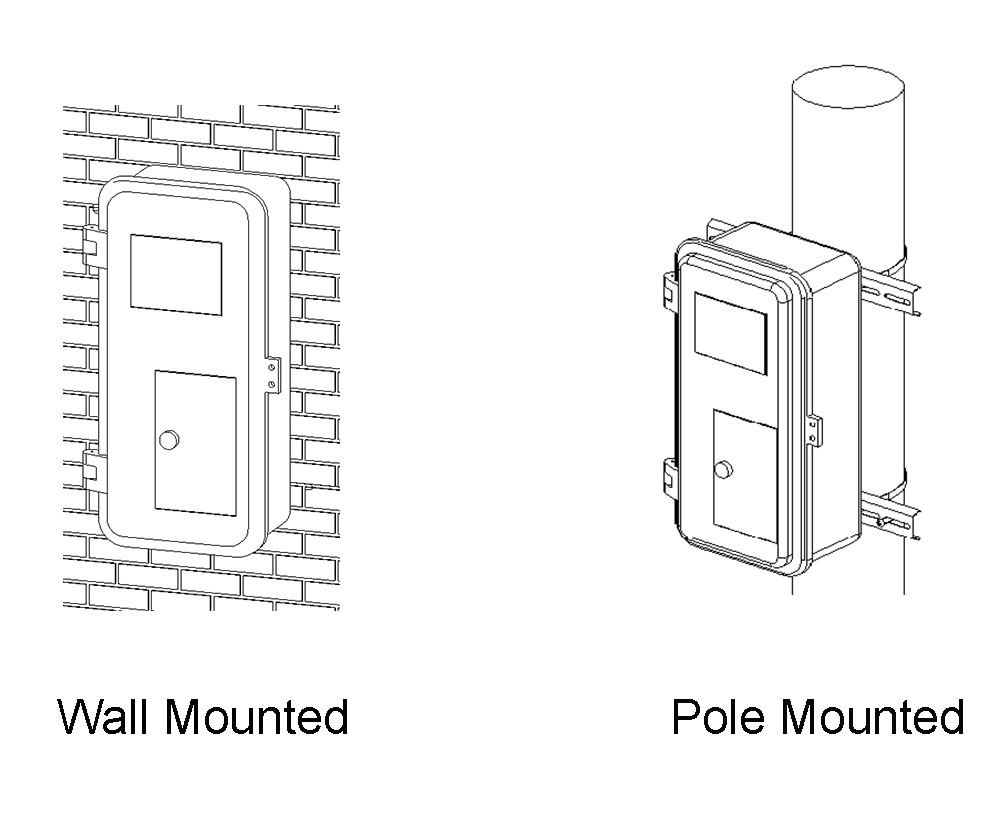

Installation Method
This model can be installed by wall mounting or pole mounting depending on site requirements. Optional brackets and accessories can be provided for different installation conditions.
FAQ
Q: How many meter positions are available?
A: This model is designed for two meter positions.
Q: Is it suitable for outdoor use?
A: Yes, it is suitable for outdoor metering environments.
A: Yes, it is suitable for outdoor metering environments.
Q: Can internal layouts be customized?
A: Yes, customization is available for project requirements.
A: Yes, customization is available for project requirements.
Q: Can it be wall mounted or pole mounted?
A: Yes, wall mounting and pole mounting are available depending on the project requirement.
A: Yes, wall mounting and pole mounting are available depending on the project requirement.
Q: Do you support OEM and ODM service?
A: Yes, we support OEM and ODM service for structure, color, logo, packaging, and accessories.
A: Yes, we support OEM and ODM service for structure, color, logo, packaging, and accessories.
Q: Can I request a sample before bulk order?
A: Yes, samples can be arranged for testing and approval before mass production.
A: Yes, samples can be arranged for testing and approval before mass production.
