Model No: KG-HL-D100
Single Phase One Way Electrical Meter Box
CANGO manufactures single phase one way electrical meter boxes with IP54 protection, UV-resistant PC+ABS material, and anti-tamper design.
Quantity :
Cango KG-HL-D100 Single Phase One Way Electrical Meter Box
Introduction
CANGO supplies this Single Phase One Way Electrical Meter Box for residential and utility metering applications. Designed as an electrical meter box, single phase meter box, and one way meter box, it provides weather-resistant protection, practical installation, and dependable long-term outdoor use.
Key Features
- Durable ABS+PC construction
- Dual transparent windows for easy meter reading
- IP54 protection for outdoor applications
- Suitable for wall mounted or pole mounted installation
- Reliable insulation and weather resistance
- Practical internal layout for meter installation
Products Parameters
| S.N. | Description | Paremeters |
|---|---|---|
| 1 | Model No. | KG-HL-D100 |
| 2 | Dimension | 344mm*214mm*120mm (L*W*H) |
| 3 | Material of top cover | PC transparent |
| 4 | Material of base | PC + ABS |
| 5 | Protection degree | IP54,IK09 |
| 6 | Phase Type | Single Phase |
| 7 | Meter Position | One Way |
| 8 | Anti-UV | Yes |
| 9 | Flame resistance degree | UL94-V0 |
| 10 | Anti-tamper protection | Seal and padlock for cover and seal for windows |
| 11 | Method of production | Injection |
| 12 | Working Temperature | -40ºC to +80ºC |
| 13 | Heat dissipation | None |
| 14 | Installation provision for MCB | Yes |
| 15 | Mounting methods | Pole mounted by stainless steel strap or wall mounted by screw |
| 16 | Thickness | cover 2mm, base 2mm, |

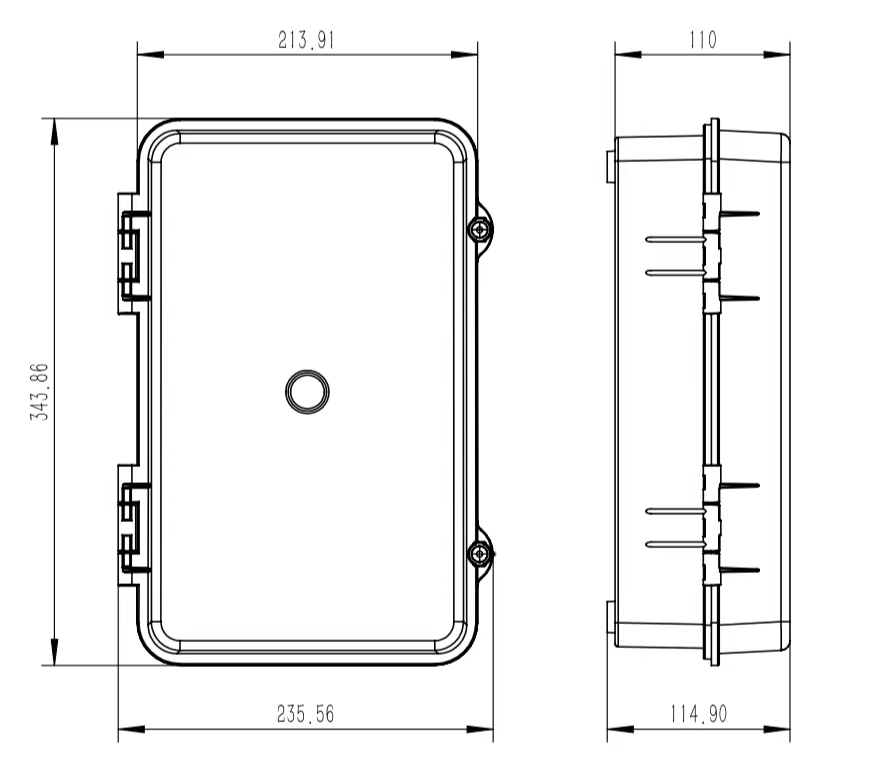

Dimension Drawing
Product Advantages
This Single Phase One Way Electrical Meter Box is designed to provide dependable protection for metering systems. With UV-resistant material, anti-tamper structure, and weather-resistant performance, it helps improve safety and service life in outdoor applications.
Application Scenarios
- Residential single phase metering
- Utility one-way meter installations
- Outdoor service entrance protection
- Pole-mounted distribution points
- Rural electrification projects
OEM / ODM Customization
CANGO supports OEM and ODM service for this single phase meter box. We can customize anti-tamper structure, lock and seal details, bracket type, color, logo, and packaging based on local installation requirements.
Packaging & Delivery
Standard export packing is available for this meter box. Samples can be arranged for testing and confirmation. Please contact us for lead time, packaging details, and shipping solutions.
Installation Method
This model can be installed by wall mounting or pole mounting depending on site requirements. Optional brackets and accessories can be provided for different installation conditions.
FAQ
Q: Is this model designed for single phase one way metering?
A: Yes, this enclosure is intended for single phase one way meter installation
A: Yes, this enclosure is intended for single phase one way meter installation
Q: Does this model support anti-tamper protection?
A:Yes, it is designed with anti-tamper features for more secure outdoor use.
Q: What material is used for the enclosure?
A: It uses UV-resistant PC+ABS material for reliable outdoor protection.
Q: Can this meter box be used in utility projects?
A: Yes, it is suitable for residential and utility metering projects.
A: Yes, it is suitable for residential and utility metering projects.
Q: Can lock, seal, or bracket options be customized?
A: Yes, lock, seal, bracket, branding, and packaging can all be customized.
A: Yes, lock, seal, bracket, branding, and packaging can all be customized.
Q: Are samples available before formal order?
A: Yes, samples can be provided for structure and quality confirmation.
A: Yes, samples can be provided for structure and quality confirmation.
