Model No: KG-HL-D100JN
Single Phase One Way Ghana Meter Box
CANGO supplies single phase one way Ghana meter boxes with IP56 protection, UV-resistant material, and wall or pole mounting options.
Quantity :
Cango KG-HL-D100JN Single Phase One Way Ghana Meter Box
Introduction
CANGO supplies this Single Phase One Way Ghana Meter Box for outdoor metering and power distribution projects. Designed as a ghana meter box, single phase ghana meter box, and electrical meter box, it provides secure protection, stable performance, and convenient installation in utility applications.
Key Features
- IP56 outdoor protection
- Single phase one way layout
- UV-resistant enclosure
- Suitable for wall mounted or pole mounted installation
- Reliable anti-tamper structure
- Secure sealing support
Products Parameters
| S.N. | Description | Paremeters |
|---|---|---|
| 1 | Model No. | KG-HL-D100JN |
| 2 | Dimension | 344mm*214mm*120mm (L*W*H) |
| 3 | Material of top cover | PC transparent |
| 4 | Material of turnover window | PC transparent |
| 5 | Material of base | PC + ABS |
| 6 | Protection degree | IP54,IK09 |
| 7 | Phase Type | Single Phase |
| 8 | Meter Position | One Way |
| 9 | Anti-UV | Yes |
| 10 | Flame resistance degree | UL94-V0 |
| 11 | Anti-tamper protection | Seal and padlock for cover and seal for windows |
| 12 | Method of production | Injection |
| 13 | Working Temperature | -40ºC to +80ºC |
| 14 | Heat dissipation | None |
| 15 | Installation provision for MCB | Yes |
| 16 | Mounting methods | Pole mounted by stainless steel strap or wall mounted by screw |
| 17 | Thickness | cover 2mm, base 2mm, |

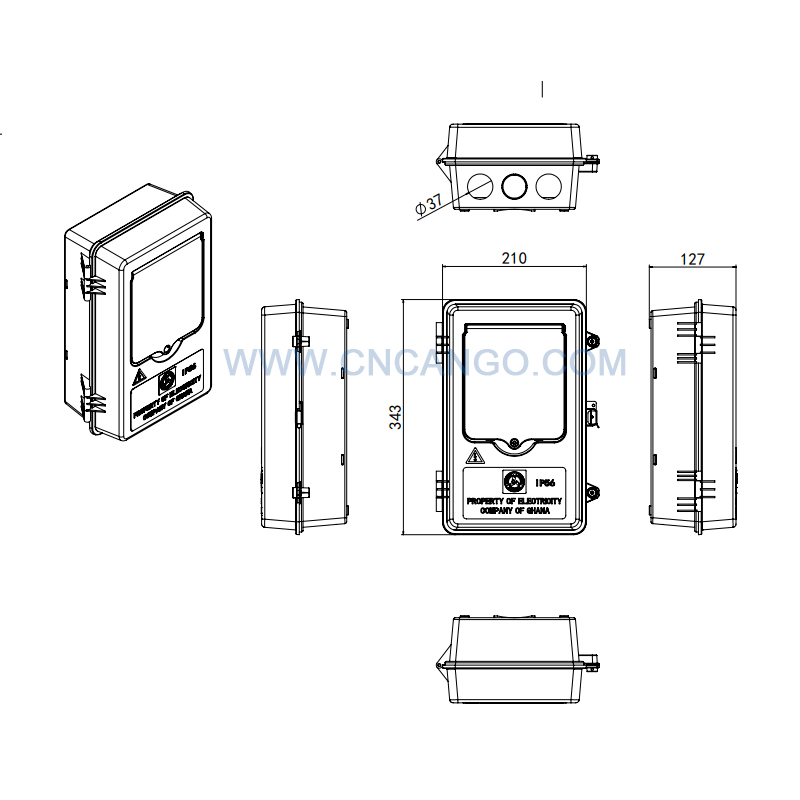

Dimension Drawing
Product Advantages
This Single Phase One Way Ghana Meter Box is designed for utility metering systems that require secure enclosure protection and reliable weather resistance. With IP56 protection and UV-resistant material, it helps improve safety and long-term durability.
Application Scenarios
- Ghana utility metering
- African prepaid meter projects
- Outdoor anti-tamper installations
- Pole-mounted service connections
- Residential utility protection points
OEM / ODM Customization
CANGO supports OEM and ODM service for this Ghana meter box. Utility labels, anti-tamper sealing, internal arrangement, mounting accessories, color, logo, and packaging can be customized for local project standards.
Packaging & Delivery
Standard export packing is available for this meter box. Samples can be arranged for testing and confirmation. Please contact us for lead time, packaging details, and shipping solutions.
Installation Method
This model can be installed by wall mounting or pole mounting depending on site requirements. Optional brackets and accessories can be provided for different installation conditions.
FAQ
Q: Is this model suitable for Ghana utility metering projects?
A: Yes, this model is designed for Ghana and similar anti-tamper outdoor metering applications.
A: Yes, this model is designed for Ghana and similar anti-tamper outdoor metering applications.
Q: What protection level does this Ghana meter box provide?
A: It is designed with IP56 protection for reliable outdoor performance.
Q: Does it support sealing and anti-tamper requirements?
A: Yes, sealing and anti-tamper features can be provided for utility applications.
Q: Can it be installed on poles in outdoor environments?
A: Yes, both wall mounted and pole mounted installation are available.
A: Yes, both wall mounted and pole mounted installation are available.
Q: Can local labels or utility markings be customized?
A: Yes, logo, label, color, packaging, and internal layout can be customized for local projects.
A: Yes, logo, label, color, packaging, and internal layout can be customized for local projects.
Q: Can I request a sample before bulk order?
A: Yes, samples can be arranged before mass production.
A: Yes, samples can be arranged before mass production.
