Model No: KG-HY-D100B
Dual Window Outdoor Plastic Meter Box
CANGO supplies dual window outdoor plastic meter boxes with durable ABS+PC construction and pole mounted or wall mounted options.
Quantity :
Cango KG-HY-D100B Dual Window Outdoor Plastic Meter Box
Introduction
CANGO supplies this Dual Window Outdoor Plastic Meter Box for utility and residential metering applications. Designed as a dual window meter box, outdoor plastic meter box, and pole mounted meter box, it combines clear meter visibility, durable material, and reliable weather protection for long-term outdoor use.
Key Features
- Durable ABS+PC construction
- Dual transparent windows for easy meter reading
- IP54 protection for outdoor applications
- Suitable for wall mounted or pole mounted installation
- Reliable insulation and weather resistance
- Practical internal layout for meter installation
Products Parameters
| S.N. | Description | Paremeters |
|---|---|---|
| 1 | Model No. | KG-HY-D100B |
| 2 | Dimension | 400mm*210mm*121mm (L*W*H) |
| 3 | Material of top cover | PC transparent |
| 4 | Material of turnover window | PC transparent |
| 5 | Material of base | PC + ABS |
| 6 | Phase Type | Single Phase |
| 7 | Meter Position | One Way |
| 8 | Protection degree | IP54,IK09 |
| 9 | Anti-UV | Yes |
| 10 | Flame resistance degree | UL94-V0 |
| 11 | Anti-tamper protection | Seal and padlock for cover and seal for windows |
| 12 | Method of production | Injection |
| 13 | Working Temperature | -40ºC to +80ºC |
| 14 | Heat dissipation | Ventilation hole for cooling |
| 15 | Installation provision for MCB | Yes |
| 16 | Mounting methods | Pole mounted by stainless steel strap or wall mounted by screw |
| 17 | Thickness | Top cover 2mm, base 2mm, windows 2.2mm |

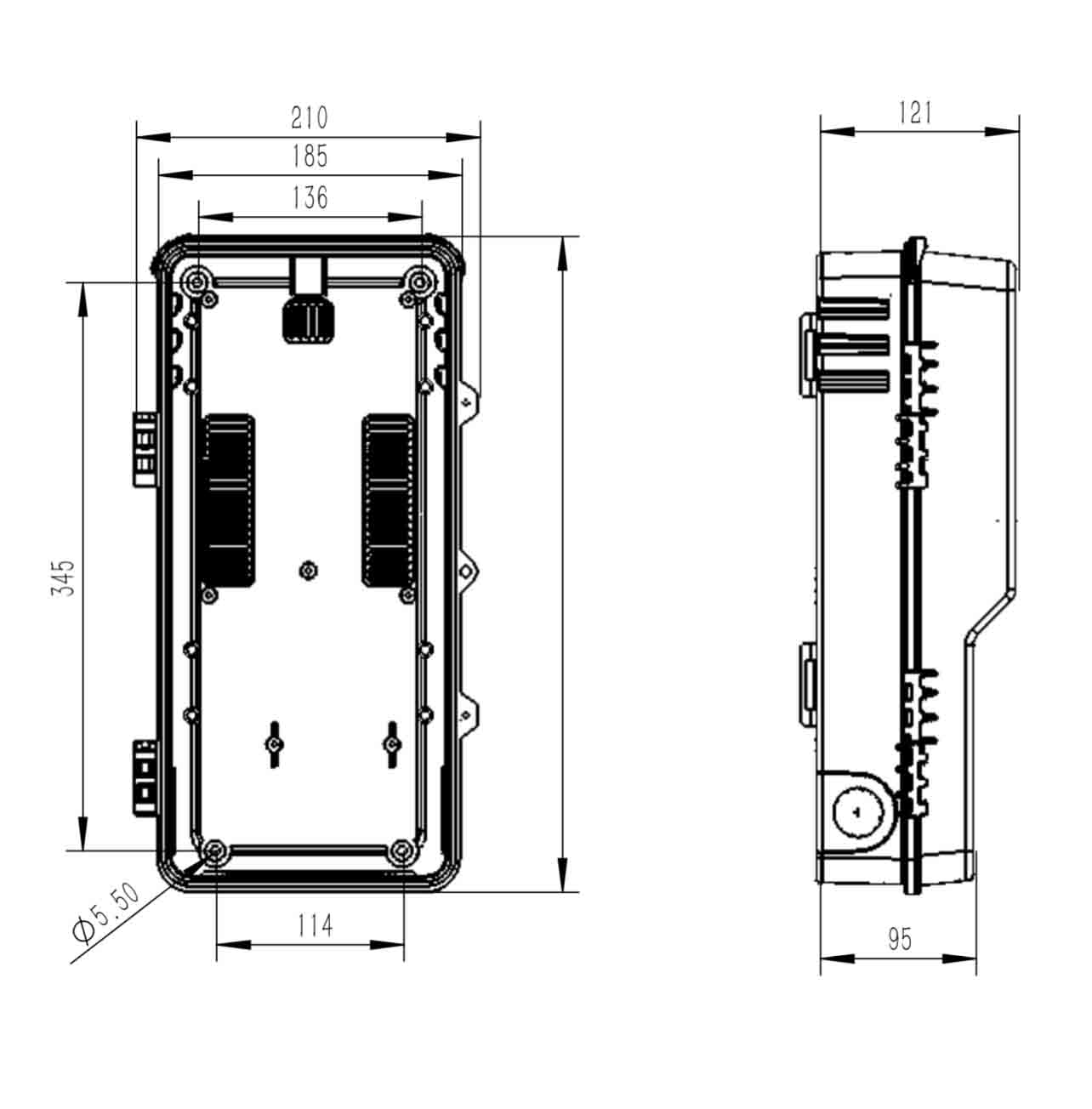

Drawing
Product Advantages
This Single Phase Plastic Meter Box is designed to provide dependable protection for electrical metering systems. With dual transparent windows, weather resistance, and anti-tamper design, it helps improve safety, service life, and installation efficiency in demanding outdoor
Application Scenarios
- Residential outdoor meter protection
- Utility meter replacement projects
- Sites needing visual meter inspection
- Pole-mounted or wall-mounted installations
- General outdoor distribution points
OEM / ODM Customization
CANGO supports OEM and ODM service for this dual window plastic meter box. Window style, enclosure color, mounting bracket, lock and seal options, logo, and packaging can be customized for utility or residential projects.
Packaging & Delivery
Standard export packing is available for this meter box. Samples can be arranged for testing and confirmation. Please contact us for lead time, packaging details, and shipping solutions.
Installation Method
This model can be installed by wall mounting or pole mounting depending on site requirements. Optional brackets and accessories can be provided for different installation conditions.
FAQ
Q: Why does this model use a dual window design?
A: The dual window design helps improve meter reading and visual inspection of internal components.
A: The dual window design helps improve meter reading and visual inspection of internal components.
Q: What material is used for this outdoor plastic meter box?
A:It is made of ABS+PC for durable insulation, weather resistance, and outdoor performance.
Q: Is this model suitable for utility and residential metering?
A: Yes, it is suitable for both utility and residential outdoor metering applications.
Q: Can it be supplied with wall or pole mounting accessories?
A: Yes, both wall mounted and pole mounted installation options can be provided.
A: Yes, both wall mounted and pole mounted installation options can be provided.
Q: Can the window style or enclosure color be customized?
A: Yes, window design, color, logo, and packaging can be customized for project requirements.
A: Yes, window design, color, logo, and packaging can be customized for project requirements.
Q: Can I order samples before mass production?
A: Yes, sample orders can be arranged before bulk production.
A: Yes, sample orders can be arranged before bulk production.
