Model No: KG-HL-S100JN
Three Phase Ghana Meter Box
CANGO supplies three phase Ghana meter boxes with IP56 protection, PC+ABS material, and wall or pole mounting for outdoor use.
Quantity :
Cango KG-HL-S100JN Three Phase Ghana Meter Box
Introduction
CANGO supplies this Three Phase One Way Ghana Meter Box for outdoor utility and power distribution projects. Designed as a ghana meter box, three phase meter box, and one way meter box, it offers durable protection, anti-tamper performance, and reliable installation for demanding environments.
Key Features
- IP56 protection for outdoor use
- Durable PC+ABS enclosure
- Anti-tamper structure
- Suitable for wall mounted or pole mounted installation
- Reliable weather resistance
- Secure sealing support
Products Parameters
| S.N. | Description | Paremeters |
|---|---|---|
| 1 | Model No. | KG-HL-S100JN |
| 2 | Dimension | 452mm*255mm*137mm (L*W*H) |
| 3 | Material of top cover | PC transparent |
| 4 | Material of turnover window | PC transparent |
| 5 | Material of base | PC + ABS |
| 6 | Protection degree | IP54,IK09 |
| 7 | Phase Type | Three Phase |
| 8 | Meter Position | One Way |
| 9 | Anti-UV | Yes |
| 10 | Flame resistance degree | UL94-V0 |
| 11 | Anti-tamper protection | Seal and padlock for cover and seal for windows |
| 12 | Method of production | Injection |
| 13 | Working Temperature | -40ºC to +80ºC |
| 14 | Heat dissipation | None |
| 15 | Installation provision for MCB | Yes |
| 16 | Mounting methods | Pole mounted by stainless steel strap or wall mounted by screw |
| 17 | Thickness | cover 2mm, base 2mm, |

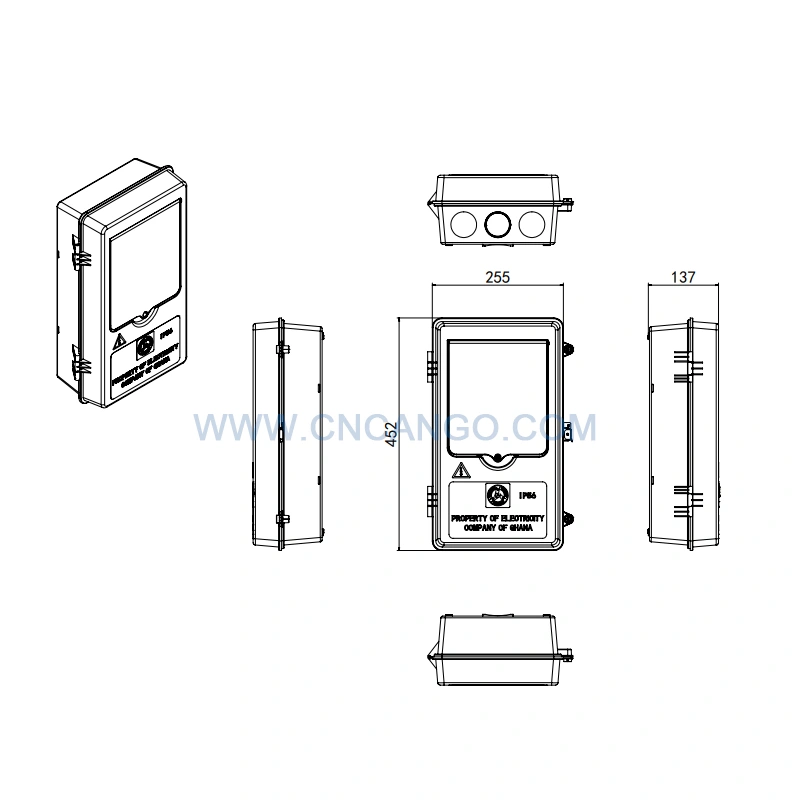

Dimension Drawing
Product Advantages
This Three Phase One Way Ghana Meter Box is designed to provide dependable protection for outdoor utility metering systems. With IP56 sealing, anti-tamper structure, and durable enclosure construction, it helps improve security and long-term performance.
Application Scenarios
- Ghana three phase utility metering
- Commercial service entrance metering
- Outdoor anti-tamper utility projects
- Pole-mounted three phase installations
- Infrastructure and contractor supply
OEM / ODM Customization
CANGO supports OEM and ODM service for this three phase Ghana meter box. We can customize utility marking, sealing structure, internal layout, bracket options, logo, and packaging for export utility projects.
Packaging & Delivery
Standard export packing is available for this meter box. Samples can be arranged for testing and confirmation. Please contact us for lead time, packaging details, and shipping solutions.
Installation Method
This model can be installed by wall mounting or pole mounting depending on site requirements. Optional brackets and accessories can be provided for different installation conditions.
FAQ
Q: Is this model designed for three phase Ghana metering?
A: Yes, it is intended for three phase outdoor metering projects in Ghana and similar markets.
A: Yes, it is intended for three phase outdoor metering projects in Ghana and similar markets.
Q: What is the main benefit of this enclosure for utility use?
A: It combines IP54 protection, anti-tamper structure, and practical installation for outdoor utility metering.
Q: Does this model support sealing requirements?
A: Yes, sealing support can be provided for secure utility installation.
Q: Can it be wall mounted or pole mounted in outdoor projects?
A: Yes, both mounting methods are available depending on project conditions.
A: Yes, both mounting methods are available depending on project conditions.
Q: Can utility labels and branding be customized?
A: Yes, logo, labeling, color, and packaging can be customized for market-specific projects.
A: Yes, logo, labeling, color, and packaging can be customized for market-specific projects.
Q: Are samples available for project evaluation?
A: Yes, samples can be arranged for approval before bulk supply.
A: Yes, samples can be arranged for approval before bulk supply.
