Model No: KG-HL-S100
One Way Three Phase Meter Box
CANGO manufactures one way three phase meter boxes with durable enclosure construction and reliable outdoor protection for power metering projects.
Quantity :
Cango KG-HL-S100 One Way Three Phase Meter Box
Introduction
CANGO supplies this One Way Three Phase Meter Box for utility and outdoor power distribution projects. Designed as a one way three phase meter box, three phase plastic meter box, and outdoor three phase meter box, it offers dependable enclosure protection, practical installation, and long-term service performance.
Key Features
- One way three phase meter layout
- Durable plastic enclosure
- Suitable for outdoor applications
- Practical installation structure
- Reliable weather resistance
- ong service life
Products Parameters
| S.N. | Description | Paremeters |
|---|---|---|
| 1 | Model No. | KG-HL-S100 |
| 2 | Dimension | 400mm*255mm*150mm (L*W*H) |
| 3 | Material of top cover | PC transparent |
| 4 | Material of base | PC + ABS |
| 5 | Protection degree | IP54,IK09 |
| 6 | Phase Type | Three Phase |
| 7 | Meter Position | One Way |
| 8 | Anti-UV | Yes |
| 9 | Flame resistance degree | UL94-V0 |
| 10 | Anti-tamper protection | Seal and padlock for cover and seal for windows |
| 11 | Method of production | Injection |
| 12 | Working Temperature | -40ºC to +80ºC |
| 13 | Heat dissipation | None |
| 14 | Installation provision for MCB | Yes |
| 15 | Mounting methods | Pole mounted by stainless steel strap or wall mounted by screw |
| 16 | Thickness | cover 2mm, base 2mm, |

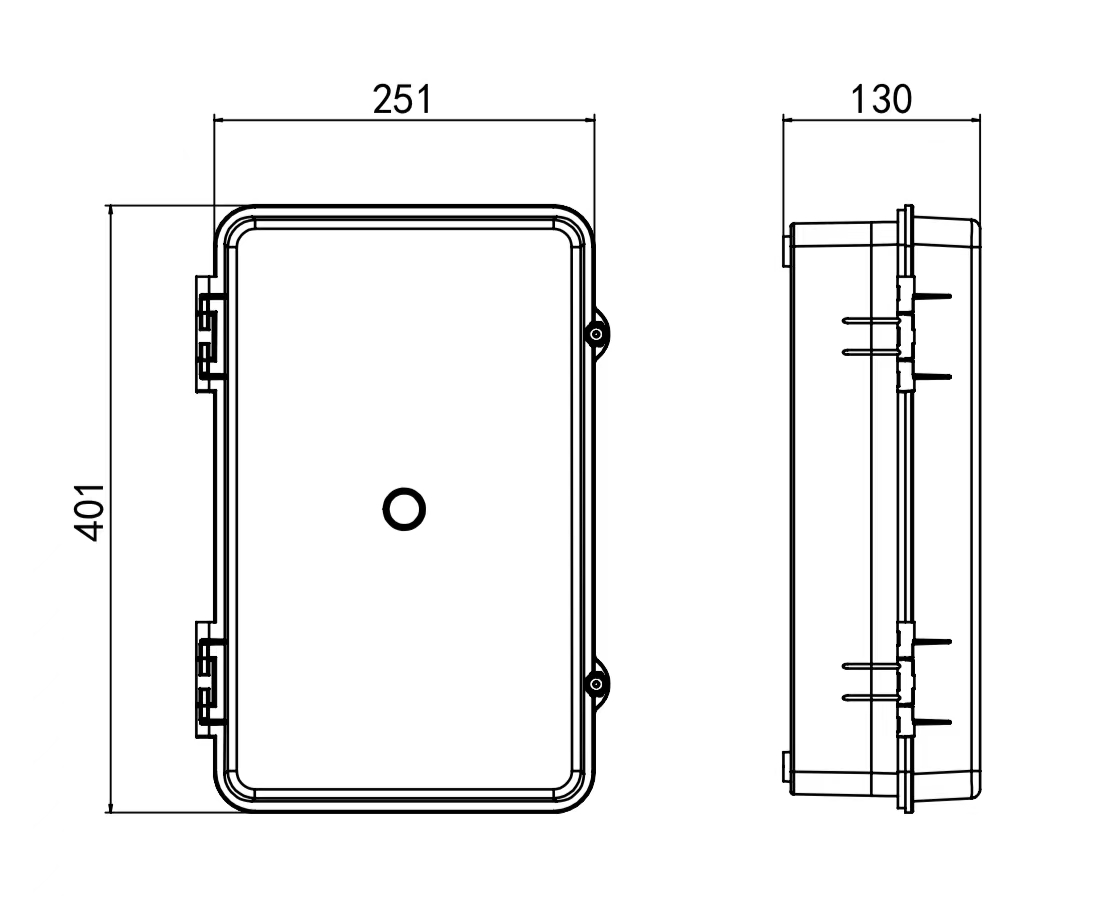

Dimension Drawing
Product Advantages
This One Way Three Phase Meter Box is designed to provide dependable protection for outdoor three phase metering systems. With durable enclosure construction and reliable weather resistance, it helps improve safety and long-term performance.
Application Scenarios
- Three phase utility metering
- Commercial service connections
- Outdoor industrial meter protection
- Infrastructure power distribution
- Contractor installation projects
OEM / ODM Customization
CANGO supports OEM and ODM service for this three phase meter box. Internal arrangement, anti-tamper details, bracket type, color, logo, and packaging can be customized according to utility and contractor requirements.
Packaging & Delivery
Standard export packing is available for this meter box. Samples can be arranged for testing and confirmation. Please contact us for lead time, packaging details, and shipping solutions.
Installation Method
This model can be installed by wall mounting or pole mounting depending on site requirements. Optional brackets and accessories can be provided for different installation conditions.
FAQ
Q: Is this model designed for one-way three phase metering?
A: Yes, it is suitable for one-way three phase meter installation in outdoor projects.
A: Yes, it is suitable for one-way three phase meter installation in outdoor projects.
Q: What is the main advantage of this three phase meter box?
A: It offers practical installation, durable enclosure protection, and reliable long-term outdoor use.
Q: Is this model suitable for utility and industrial projects?
A: Yes, it is suitable for utility, industrial, and outdoor metering projects.
Q: Can the structure be customized for local project requirements?
A: Yes, OEM and ODM service is available for structure, logo, color, and accessory configuration.
A: Yes, OEM and ODM service is available for structure, logo, color, and accessory configuration.
Q: Can this model be wall mounted or pole mounted?
A: Yes, both installation methods are available according to project conditions.
A: Yes, both installation methods are available according to project conditions.
Q: Are samples available before bulk supply?
A: Yes, samples can be arranged before production.
A: Yes, samples can be arranged before production.
