Model No: KG-D101D
Sealed Din Rail Meter Enclosure
CANGO manufactures sealed din rail meter enclosures with one position design, optional door detection, and reliable outdoor protection.
Quantity :
Cango KG-D101D Sealed Din Rail Meter Enclosure
Introduction
CANGO supplies this One Position Din Rail Meter Enclosure for secure outdoor metering applications. Designed as a one position din rail meter enclosure, sealed din rail meter enclosure, and door detection meter enclosure, it provides stable installation, sealing support, and reliable electrical protection.
Key Features
- One position enclosure design
- Optional door-open detection
- Sealing support
- Suitable for outdoor installation
- Practical internal structure
- Reliable enclosure protection
Products Parameters
| S.N. | PARAMETERS | KG-D101D |
|---|---|---|
| 1 | Meter Type | Din Rail Meter |
| 2 | Meter Ways | 1 Way |
| 3 | Dimensions (HxWxD, mm) | 300*150*126 |
| 4 | Maximum operating temperature | 85℃ |
| 5 | Maximum relative humidity | 100% |
| 6 | Maximum annual rainfall | 2000 mm |
| 7 | Maximum altitude above mean sea level | 3000m |
| 8 | Water Absorption | ≤ 0.1% |
| 9 | protection level | IP54 |
| 10 | Resistance to mechanical shocks | IK09 |
| 11 | Flammability | UL94-V0 |
| 12 | Mechanical strength | Strength:64MPA Flexural strength:103MPA |
| 13 | Light transmission (Transparent window) | >88% |
| 14 | Heat Deflection | ≥158℃ |
| 15 | Heat resistant & Flame retardant (Glow Wire) | ≥750℃ & ≥960℃ |
| 16 | Installation type | Wall mounted / Pole mounted |
| 17 | Installation Location | Indoor / Outdoor |

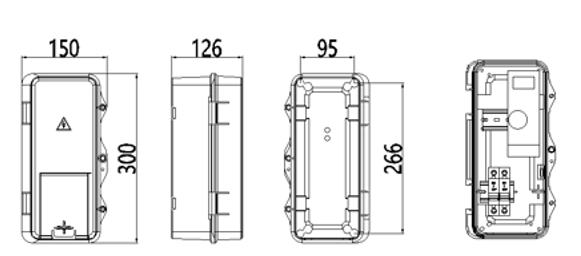

Drawing
Product Advantages
This One Position Din Rail Meter Enclosure is designed to provide dependable protection for outdoor metering systems. With sealing support, optional detection, and reliable enclosure construction, it helps improve safety and long-term performance.
Application Scenarios
- Anti-tamper utility metering
- Projects requiring sealing support
- Smart monitored meter enclosures
- Outdoor secure metering points
- Utility compliance installations
OEM / ODM Customization
CANGO supports OEM and ODM service for this sealed din rail meter enclosure. Detection options, sealing details, internal layout, accessory configuration, logo, and packaging can be customized for secure metering projects.
Packaging & Delivery
Standard export packing is available for this meter box. Samples can be arranged for testing and confirmation. Please contact us for lead time, packaging details, and shipping solutions.

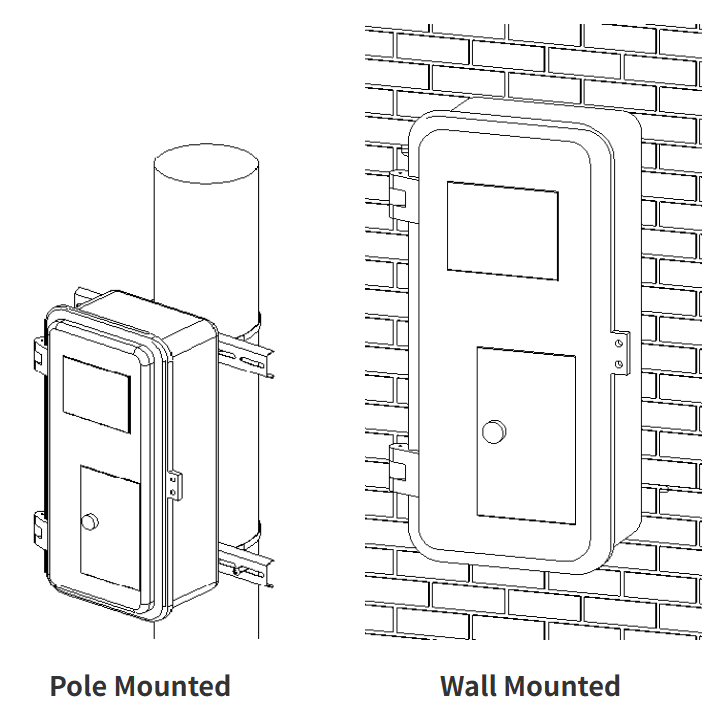

Installation Method
This model can be installed by wall mounting or pole mounting depending on site requirements. Optional brackets and accessories can be provided for different installation conditions.
FAQ
Q: Is door-open detection available on this model?
A: Yes, door-open detection can be provided as an optional configuration.
A: Yes, door-open detection can be provided as an optional configuration.
Q: Does this enclosure support sealing for anti-tamper applications?
A: Yes, it is designed for din rail meter installation.
Q: What is the main benefit of this sealed din rail design?
A: It combines secure enclosure protection, compact installation, and optional monitoring features.
A: It combines secure enclosure protection, compact installation, and optional monitoring features.
Q: Is this model suitable for outdoor utility metering?
A: Yes, it is suitable for outdoor metering systems requiring sealing support.
A: Yes, it is suitable for outdoor metering systems requiring sealing support.
Q: Can the detection option and accessories be customized?
A: Yes, optional functions, accessories, branding, and packaging can be customized.
A: Yes, optional functions, accessories, branding, and packaging can be customized.
Q: Can I request a sample before mass production?
A: Yes, samples can be arranged before bulk order.
A: Yes, samples can be arranged before bulk order.
