Model No: KG-HL-D400
Single Phase Four Way Meter Box
CANGO supplies single phase four way meter boxes with multi-position layout, durable enclosure protection, and reliable outdoor metering performance.
Quantity :
Cango KG-HL-D400 Single Phase Four Way Meter Box
Introduction
CANGO supplies this Three Phase Two Way Meter Box for outdoor power distribution and metering projects. Designed as a three phase meter box, two way meter box, and new meter box, it provides secure enclosure protection, durable construction, and convenient installation.
Key Features
- Three phase application
- Two way internal layout
- Outdoor protection design
- Durable enclosure material
- Suitable for wall mounted or pole mounted installation
- Reliable long-term performance
Products Parameters
| S.N. | Description | Paremeters |
|---|---|---|
| 1 | Model No. | KG-HL-D400 |
| 2 | Dimension | 575mm*480mm*150mm (L*W*H) |
| 3 | Material of top cover | PC transparent |
| 4 | Material of base | PC + ABS |
| 5 | Protection degree | IP54,IK09 |
| 6 | Phase Type | Single Phase |
| 7 | Meter Position | Four Way |
| 8 | Anti-UV | Yes |
| 9 | Flame resistance degree | UL94-V0 |
| 10 | Anti-tamper protection | Seal and padlock for cover and seal for windows |
| 11 | Method of production | Injection |
| 12 | Working Temperature | -40ºC to +80ºC |
| 13 | Heat dissipation | None |
| 14 | Installation provision for MCB | Yes |
| 15 | Mounting methods | Pole mounted by stainless steel strap or wall mounted by screw |
| 16 | Thickness | cover 2mm, base 2mm, |

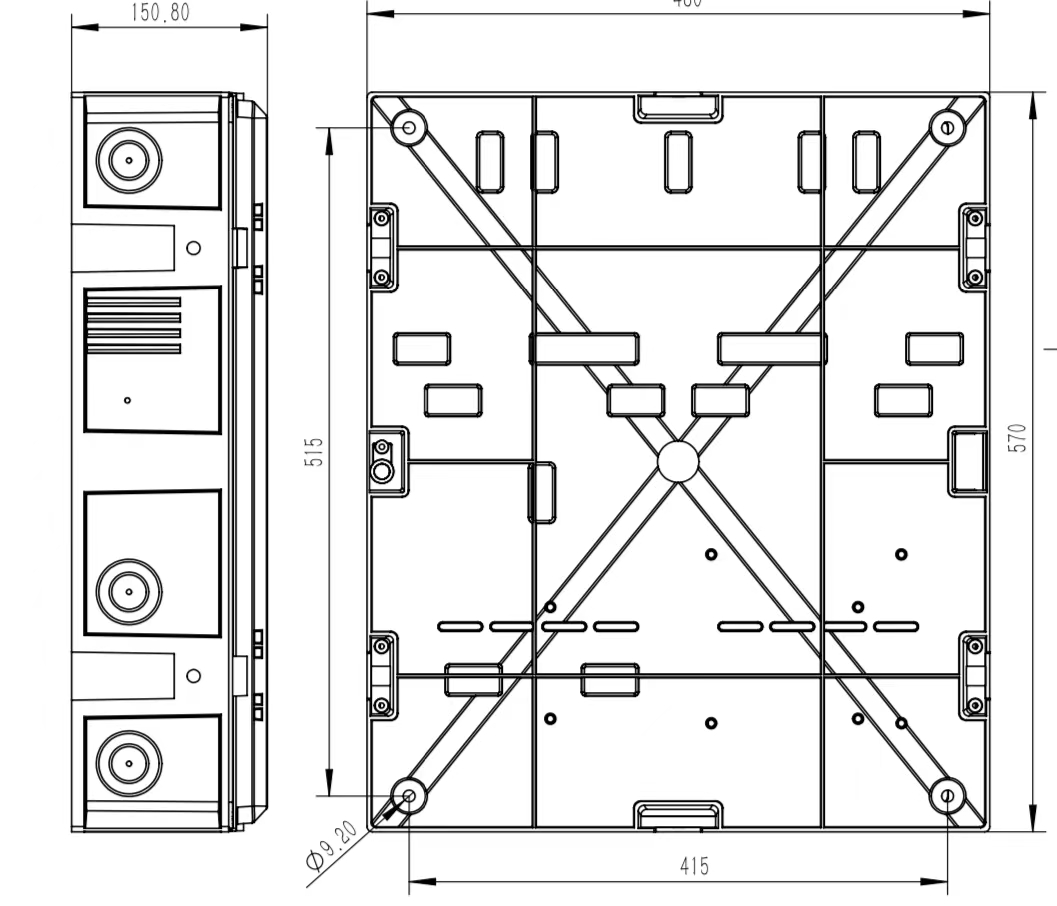

Dimension Drawing
Product Advantages
This Single Phase Four Way Meter Box is designed for projects that require several meter positions in one enclosure. With practical layout, durable material, and outdoor-ready protection, it helps improve installation efficiency and service life.
Application Scenarios
- Multi-tenant residential metering
- Grouped single phase service points
- Outdoor apartment metering projects
- Utility meter consolidation
- Pole-mounted multi-position installations
OEM / ODM Customization
CANGO supports OEM and ODM service for this four way meter box. We can customize meter positions, grouped internal structure, anti-tamper options, mounting accessories, logo, and packaging for multi-user projects.
Packaging & Delivery
Standard export packing is available for this meter box. Samples can be arranged for testing and confirmation. Please contact us for lead time, packaging details, and shipping solutions.
Installation Method
This model can be installed by wall mounting or pole mounting depending on site requirements. Optional brackets and accessories can be provided for different installation conditions.
FAQ
Q: How many meter positions does this model support?
A: It is designed for four single phase meter positions in one enclosure.
A: It is designed for four single phase meter positions in one enclosure.
Q: Is this model suitable for utility or residential metering groups?
A: Yes, it is suitable for grouped metering in utility, residential, and project applications.
Q: Can the internal layout be adjusted for project requirements?
A: Yes, internal arrangement can be customized according to the number of components and accessories needed.
Q: Is this box suitable for outdoor use?
A: Yes, it is designed for outdoor metering applications with reliable enclosure protection.
A: Yes, it is designed for outdoor metering applications with reliable enclosure protection.
Q: Can mounting method and accessories be customized?
A: Yes, mounting details, brackets, logo, and packaging can be customized.
A: Yes, mounting details, brackets, logo, and packaging can be customized.
Q: Can I request samples before mass production?
A: Yes, samples can be arranged before bulk order.
A: Yes, samples can be arranged before bulk order.
