Model No: KG-HL-D200
Single Phase Two Way Meter Box
CANGO manufactures single phase two way meter boxes with durable enclosure protection and reliable outdoor installation for dual metering.
Quantity :
Cango KG-HL-D200 Single Phase Two Way Meter Box
Introduction
CANGO supplies this Single Phase Two Way Meter Box for multi-meter installation applications. Designed as a single phase two way meter box, dual meter box enclosure, and outdoor two meter box, it offers practical internal layout, durable material performance, and dependable outdoor protection.
Key Features
- Two way meter installation
- Durable enclosure structure
- Suitable for wall mounted or pole mounted installation
- Reliable outdoor protection
- Practical internal layout
- Long service life
Products Parameters
| S.N. | Description | Paremeters |
|---|---|---|
| 1 | Model No. | KG-HL-D200 |
| 2 | Dimension | 524mm*307mm*120mm (L*W*H) |
| 3 | Material of top cover | PC transparent |
| 4 | Material of base | PC + ABS |
| 5 | Protection degree | IP54,IK09 |
| 6 | Phase Type | Single Phase |
| 7 | Meter Position | Two Way |
| 8 | Anti-UV | Yes |
| 9 | Flame resistance degree | UL94-V0 |
| 10 | Anti-tamper protection | Seal and padlock for cover and seal for windows |
| 11 | Method of production | Injection |
| 12 | Working Temperature | -40ºC to +80ºC |
| 13 | Heat dissipation | None |
| 14 | Installation provision for MCB | Yes |
| 15 | Mounting methods | Pole mounted by stainless steel strap or wall mounted by screw |
| 16 | Thickness | cover 2mm, base 2mm, |

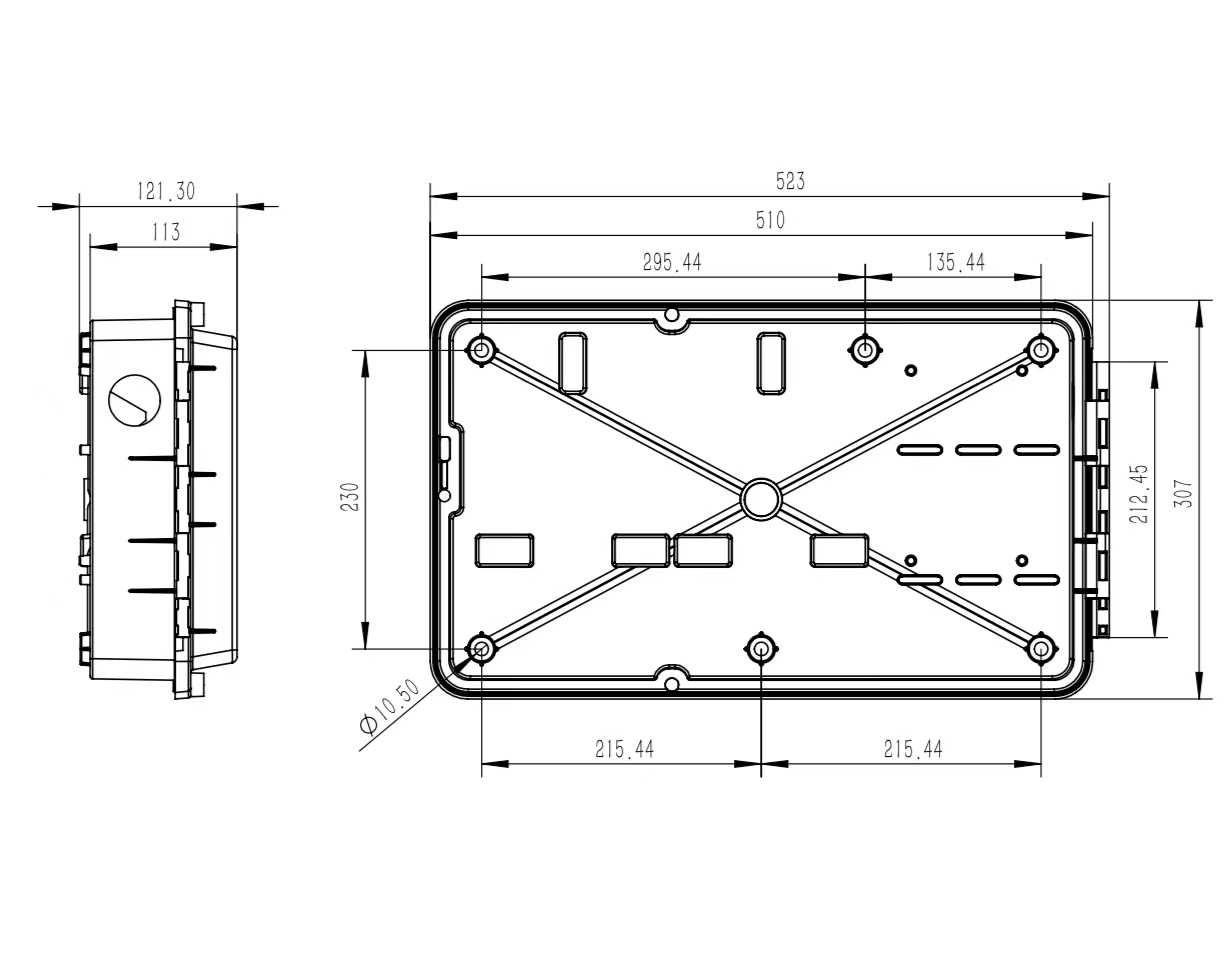

Dimension Drawing
Product Advantages
This Single Phase Two Way Electric Meter Box is designed for projects that require multiple metering positions. With durable enclosure construction, practical layout, and reliable weather resistance, it helps improve installation efficiency and protection.
Application Scenarios
- Dual-meter residential projects
- Small multi-tenant service points
- Outdoor grouped metering
- Wall-mounted or pole-mounted distribution
- Utility upgrade installations
OEM / ODM Customization
CANGO supports OEM and ODM service for this two way meter box. Meter positions, internal partitions, accessory layout, lock and seal options, logo, and packaging can be customized for grouped metering projects.
Packaging & Delivery
Standard export packing is available for this meter box. Samples can be arranged for testing and confirmation. Please contact us for lead time, packaging details, and shipping solutions.
Installation Method
This model can be installed by wall mounting or pole mounting depending on site requirements. Optional brackets and accessories can be provided for different installation conditions.
FAQ
Q: How many meter positions does this model provide?
A: It is designed as a single phase two way meter box for dual meter installation.
A: It is designed as a single phase two way meter box for dual meter installation.
Q: Is this meter box suitable for outdoor multi-meter applications?
A: Yes, it is suitable for outdoor metering projects requiring two meter positions.
Q: Can internal accessories be added according to project requirements?
A: Yes, the internal layout can be adjusted for accessories such as terminals or breakers.
Q: Is this model suitable for wall mounted or pole mounted installation?
A: Yes, both wall mounted and pole mounted installation options are available.
A: Yes, both wall mounted and pole mounted installation options are available.
Q: Can the enclosure structure or branding be customized?
A: Yes, OEM and ODM service is available for structure, logo, color, and packaging.
A: Yes, OEM and ODM service is available for structure, logo, color, and packaging.
Q: Can I request a sample before bulk production?
A: Yes, sample supply can be arranged before mass production.
A: Yes, sample supply can be arranged before mass production.
