SZ11 10kV and 35kV On-Load Tap-Changing Transformer is supplied for urban and rural power grids. CANGO reviews rated data, drawings, quantity, destination, and configuration notes before quotation.
Model
SZ11
Category
Power Transformers
Application
Urban and rural power grids
Supply Type
Project quotation and technical support

Product Overview

SZ11 on-load tap-changing transformer is intended for voltage conversion and distribution in urban, rural, industrial, and agricultural power grids. It is commonly used for urban and rural power grids and industrial and agricultural distribution networks, with the final selection based on rated data, drawings, and site conditions.

utilities, EPC contractors, transformer distributors, industrial project owners, and electrical engineering companies can request configuration review for on load tap changing transformer. Please send capacity, voltage combination, tap range, connection group, cooling or insulation type, loss data, impedance, and installation environment, quantity, destination, and any project standard requirements for quotation.

Model and Meaning

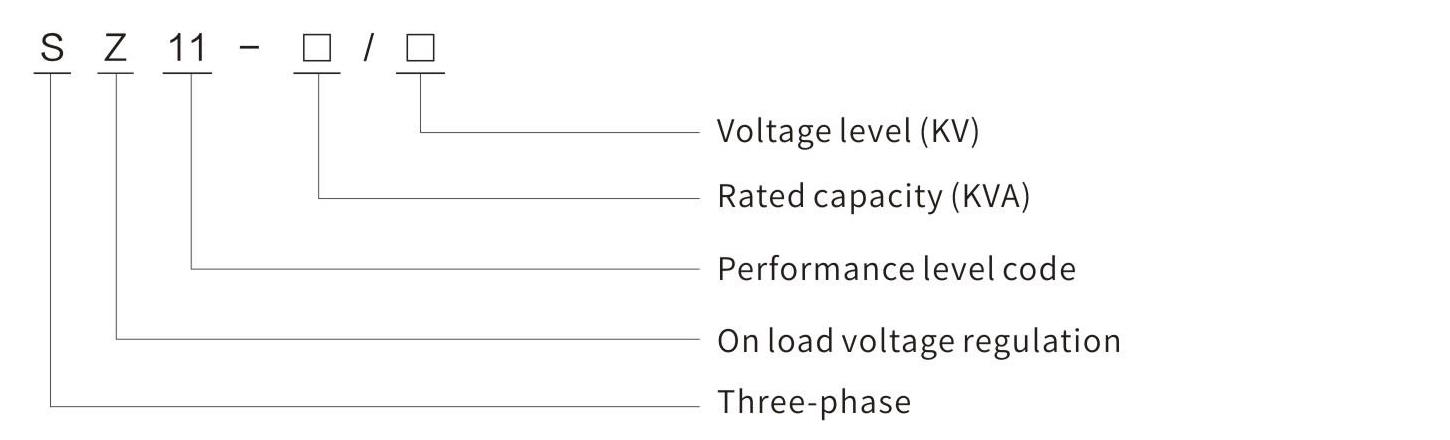

SZ11 10kv and 35kv on-load tap-changing transformer model and meaning diagram

Key Features

01

Capacity Selection

SZ11: Capacity, high-voltage and low-voltage combination, tap range, and connection group are confirmed before quotation. This point is especially relevant to on load tap changing transformer.
02

Cooling and Insulation

Oil-immersed, dry-type, amorphous alloy, and H-class requirements are reviewed according to installation conditions. For SZ11, check this together with the selected project scheme.
03

Loss Data Review

No-load loss, load loss, impedance, and efficiency-related data should be matched with the selected capacity. On SZ11, confirm the application duty, site layout, and project standard before selection.
04

Project Installation

Foundation, lifting, terminal position, ventilation, and clearance requirements need confirmation before delivery. Use the SZ11 drawings and rated data to confirm this point before quotation.
05

Application Flexibility

Transformer selection can support utility, industrial, commercial, indoor, outdoor, and renewable-energy projects. For SZ11, review this with on load tap changing transformer and the final installation plan.

Technical Specifications

10 kV On-Load Voltage-Changing Transformer Technical Data

Rated capacity (kVA)Connection groupHigh voltage (kV)Tap rangeLow voltage (kV)No-load current (%)No-load loss (W)Load loss at 75 degC (W)Short-circuit impedance (%)
200Yyn0 / Dyn116 / 6.3 / 10 / 10.5 / 11+/-4 x 2.5%; optional +/-5% / +/-2 x 2.5%0.413802904
250Yyn0 / Dyn116 / 6.3 / 10 / 10.5 / 11+/-4 x 2.5%; optional +/-5% / +/-2 x 2.5%0.40.944034204
315Yyn0 / Dyn116 / 6.3 / 10 / 10.5 / 11+/-4 x 2.5%; optional +/-5% / +/-2 x 2.5%0.40.953941004
400Yyn0 / Dyn116 / 6.3 / 10 / 10.5 / 11+/-4 x 2.5%; optional +/-5% / +/-2 x 2.5%0.40.864049504
500Yyn0 / Dyn116 / 6.3 / 10 / 10.5 / 11+/-4 x 2.5%; optional +/-5% / +/-2 x 2.5%0.40.876058904
630Yyn0 / Dyn116 / 6.3 / 10 / 10.5 / 11+/-4 x 2.5%; optional +/-5% / +/-2 x 2.5%0.40.696072604.5
800Yyn0 / Dyn116 / 6.3 / 10 / 10.5 / 11+/-4 x 2.5%; optional +/-5% / +/-2 x 2.5%0.40.6112088904.5
1000Yyn0 / Dyn116 / 6.3 / 10 / 10.5 / 11+/-4 x 2.5%; optional +/-5% / +/-2 x 2.5%0.40.61360104004.5
1250Yyn0 / Dyn116 / 6.3 / 10 / 10.5 / 11+/-4 x 2.5%; optional +/-5% / +/-2 x 2.5%0.40.51560123004.5
1600Yyn0 / Dyn116 / 6.3 / 10 / 10.5 / 11+/-4 x 2.5%; optional +/-5% / +/-2 x 2.5%0.40.51920147004.5
2000Yyn0 / Dyn116 / 6.3 / 10 / 10.5 / 11+/-4 x 2.5%; optional +/-5% / +/-2 x 2.5%0.40.42270186004.5
2500Yyn0 / Dyn116 / 6.3 / 10 / 10.5 / 11+/-4 x 2.5%; optional +/-5% / +/-2 x 2.5%0.40.42680216004.5

35 kV On-Load Voltage-Changing Transformer Technical Data

Rated capacity (kVA)Connection groupHigh voltage (kV)Tap rangeLow voltage (kV)No-load current (%)No-load loss (W)Load loss at 75 degC (W)Short-circuit impedance (%)
2000Yd1135 / 38.5+/-3 x 2.5%6.3 / 10 / 10.512300192006.5
2500Yd1135 / 38.5+/-3 x 2.5%6.3 / 10 / 10.512720206006.5
3150Yd1135 / 38.5+/-3 x 2.5%6.3 / 10 / 10.50.93230247006.5
4000Yd1135 / 38.5+/-3 x 2.5%6.3 / 10 / 10.50.93870291007
5000Yd1135 / 38.5+/-3 x 2.5%6.3 / 10 / 10.50.854640342008
6300Yd1135 / 38.5+/-3 x 2.5%6.3 / 10 / 10.50.855630367008
8000Yd1135 / 38.5+/-3 x 2.5%6.3 / 10 / 10.50.757870406008
10000Yd1135 / 38.5+/-3 x 2.5%6.3 / 10 / 10.50.759280480008
12500YNd1135 / 38.5+/-3 x 2.5%6.3 / 10 / 10.50.710900568008
16000YNd1135 / 38.5+/-3 x 2.5%6.3 / 10 / 10.50.713100703008
20000YNd1135 / 38.5+/-3 x 2.5%6.3 / 10 / 10.50.6515500827008

Installation Dimensions / Drawing

ForSZ11, confirm the capacity-specific outline dimensions, installation base, terminal position, cooling clearance, and lifting / handling requirements. Use the confirmed technical table, project drawing, and site installation plan as the final dimensional reference before ordering or installation.

Applications

SZ11 is mainly selected for urban and rural power grids and industrial and agricultural distribution networks. The final application should match the confirmed on load tap changing transformer, rated data, and site installation conditions.
  • Urban and rural power grids
  • Industrial and agricultural distribution networks
  • Projects requiring on-load tap-changing transformers

Customization Options

Cooling Method

Oil-immersed, dry-type, natural cooling, forced-air, or special cooling requirements should be confirmed by model and site condition. Apply this review to SZ11 and its on load tap changing transformer.

Winding Material

Copper or aluminum winding requirements should be confirmed when the project specification requires a fixed material. Apply this review to SZ11 and its on load tap changing transformer.

Loss Data

No-load loss, load loss, impedance voltage, and efficiency information should be checked against the selected capacity. Apply this review to SZ11 and its on load tap changing transformer.

Installation Method

Indoor, outdoor, foundation, ventilation, lifting, terminal position, and clearance requirements should be provided before quotation. Apply this review to SZ11 and its on load tap changing transformer.

Cooling Method and Winding Material

Cooling Review

Confirm oil-immersed, dry-type, natural cooling, forced-air, or other cooling requirements according to the installation site. Apply this review to SZ11 and its on load tap changing transformer.

Winding Requirement

State copper or aluminum winding requirements when the project specification defines the material. Apply this review to SZ11 and its on load tap changing transformer.

Loss Data and Efficiency Information

Performance Data

No-load loss, load loss, impedance, noise, and temperature rise should be reviewed for the selected capacity. Apply this review to SZ11 and its on load tap changing transformer.

Efficiency Review

Energy-efficiency level or local efficiency requirements should be confirmed before quotation if required by the project. Apply this review to SZ11 and its on load tap changing transformer.

Ordering Instructions / Information Required for Quotation

ForSZ11, send capacity, voltage combination, tap range, connection group, cooling or insulation type, loss data, impedance, and installation environment, quantity, destination, and the expected delivery schedule. The engineering review will be based on the selected on load tap changing transformer and project drawing.

ORDERING INSTRUCTIONS

  • State the required SZ11 configuration, quantity, project destination, and intended application.
  • Provide capacity, voltage combination, tap range, connection group, impedance, loss data, cooling or insulation type, and installation environment for technical review.
  • Confirm confirm the capacity-specific outline dimensions, installation base, terminal position, cooling clearance, and lifting / handling requirements before final production or installation planning.
  • List any special environmental, wiring, communication, metering, protection, or component requirements in the inquiry.
