Model No: KG-HY-S100B
Three Phase Meter Enclosure with MCB
CANGO supplies three phase meter enclosures with MCB space, durable outdoor protection, and reliable installation for power distribution projects.
Quantity :
Cango KG-HY-S100B Three Phase Meter Enclosure with MCB
Introduction
CANGO supplies this Three Phase Plastic Meter Enclosure with MCB for utility and outdoor distribution applications. Designed as a three phase meter enclosure, plastic meter enclosure with mcb, and outdoor three phase meter box, it offers secure internal space, durable protection, and reliable long-term use.
Key Features
- Three phase enclosure design
- Integrated MCB space
- Durable plastic construction
- Suitable for outdoor applications
- Practical internal layout
- Reliable long-term protection
Products Parameters
| S.N. | PARAMETERS | KG-HY-S100B |
|---|---|---|
| 1 | Phase Type | Three Phase |
| 2 | Meter Ways | 1 Way |

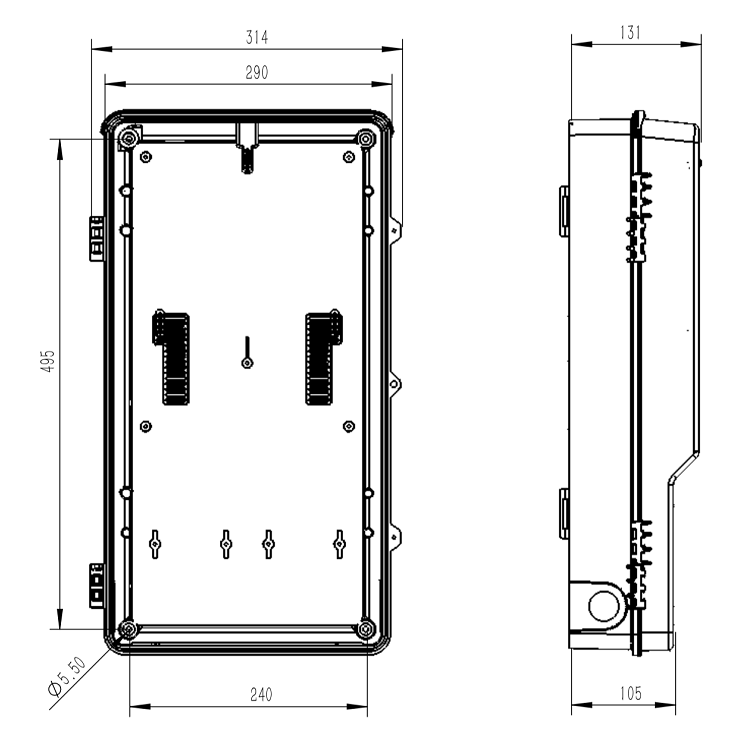

| 3 | Dimensions (HxWxD, mm) | 550mm*335mm*135mm |
| 4 | Maximum operating temperature | 85℃ |
| 5 | Maximum relative humidity | 100% |
| 6 | Maximum annual rainfall | 2000 mm |
| 7 | Maximum altitude above mean sea level | 3000m |
| 8 | Water Absorption | ≤ 0.1% |
| 9 | protection level | IP54 |
| 10 | Resistance to mechanical shocks | IK09 |
| 11 | Flammability | UL94-V0 |
| 12 | Mechanical strength | Strength:64MPA Flexural strength:103MPA |
| 13 | Light transmission (Transparent window) | >88% |
| 14 | Heat Deflection | ≥158℃ |
| 15 | Heat resistant & Flame retardant (Glow Wire) | ≥750℃ & ≥960℃ |
| 16 | Installation type | Wall Mounted / Pole Mounted |
| 17 | Installation Location | Utility / Outdoor Distribution |
Product Advantages
This Three Phase Plastic Meter Enclosure with MCB is designed to provide dependable protection for outdoor distribution and metering systems. With integrated MCB space and durable enclosure construction, it helps improve installation efficiency and service life.
Application Scenarios
- Three phase meter and MCB combination projects
- Outdoor distribution and protection points
- Utility and contractor applications
- Service entrance breaker integration
- Wall-mounted industrial metering
OEM / ODM Customization
CANGO supports OEM and ODM service for this three phase meter enclosure with MCB space. MCB layout, internal partitions, bracket options, logo, sealing details, and packaging can be customized for project supply.
Packaging & Delivery
Standard export packing is available for this meter box. Samples can be arranged for testing and confirmation. Please contact us for lead time, packaging details, and shipping solutions.
Installation Method
This model can be installed by wall mounting or pole mounting depending on site requirements. Optional brackets and accessories can be provided for different installation conditions.
This model can be installed by wall mounting or pole mounting depending on site requirements. Optional brackets and accessories can be provided for different installation conditions.
FAQ
Q: Is this enclosure designed for three phase meter and MCB applications?
A: Yes, it is designed for three phase metering projects that also require MCB space inside the enclosure.
A: Yes, it is designed for three phase metering projects that also require MCB space inside the enclosure.
Q: Does this model include dedicated MCB installation space?
A: Yes, the internal structure is designed with MCB space.
A: Yes, the internal structure is designed with MCB space.
Q: Is this product suitable for outdoor distribution use?
A: Yes, it is suitable for outdoor three phase metering and distribution applications.
A: Yes, it is suitable for outdoor three phase metering and distribution applications.
Q: Can the internal arrangement be customized for different components?
A: Yes, internal layout, accessory configuration, and branding can be customized according to project requirements.
A: Yes, internal layout, accessory configuration, and branding can be customized according to project requirements.
Q: Can it be installed on a wall or a pole?
A: Yes, wall mounted and pole mounted installation are both available.
A: Yes, wall mounted and pole mounted installation are both available.
Q: Are samples available before bulk supply?
A: Yes, samples can be arranged before production.
A: Yes, samples can be arranged before production.
