Model No: KG-HY-S100E
Three Phase Meter Panel Box
CANGO supplies three phase meter panel boxes with durable enclosure design and reliable outdoor protection for utility metering projects.
Quantity :
Cango KG-HY-S100E Three Phase Meter Panel Box
Introduction
CANGO supplies this Three Phase Meter Panel Box for utility and outdoor metering projects. Designed as a three phase meter panel box, outdoor three phase panel box, and utility meter panel box, it offers practical panel layout, durable enclosure protection, and reliable long-term service.
Key Features
- Three phase meter panel layout
- Durable plastic enclosure
- Suitable for outdoor utility use
- Practical internal arrangement
- Reliable weather resistance
- Convenient installation design
Products Parameters
| S.N. | PARAMETERS | KG-HY-S100E |
|---|---|---|
| 1 | Phase Type | Three Phase |
| 2 | Meter Ways | 1 Way |

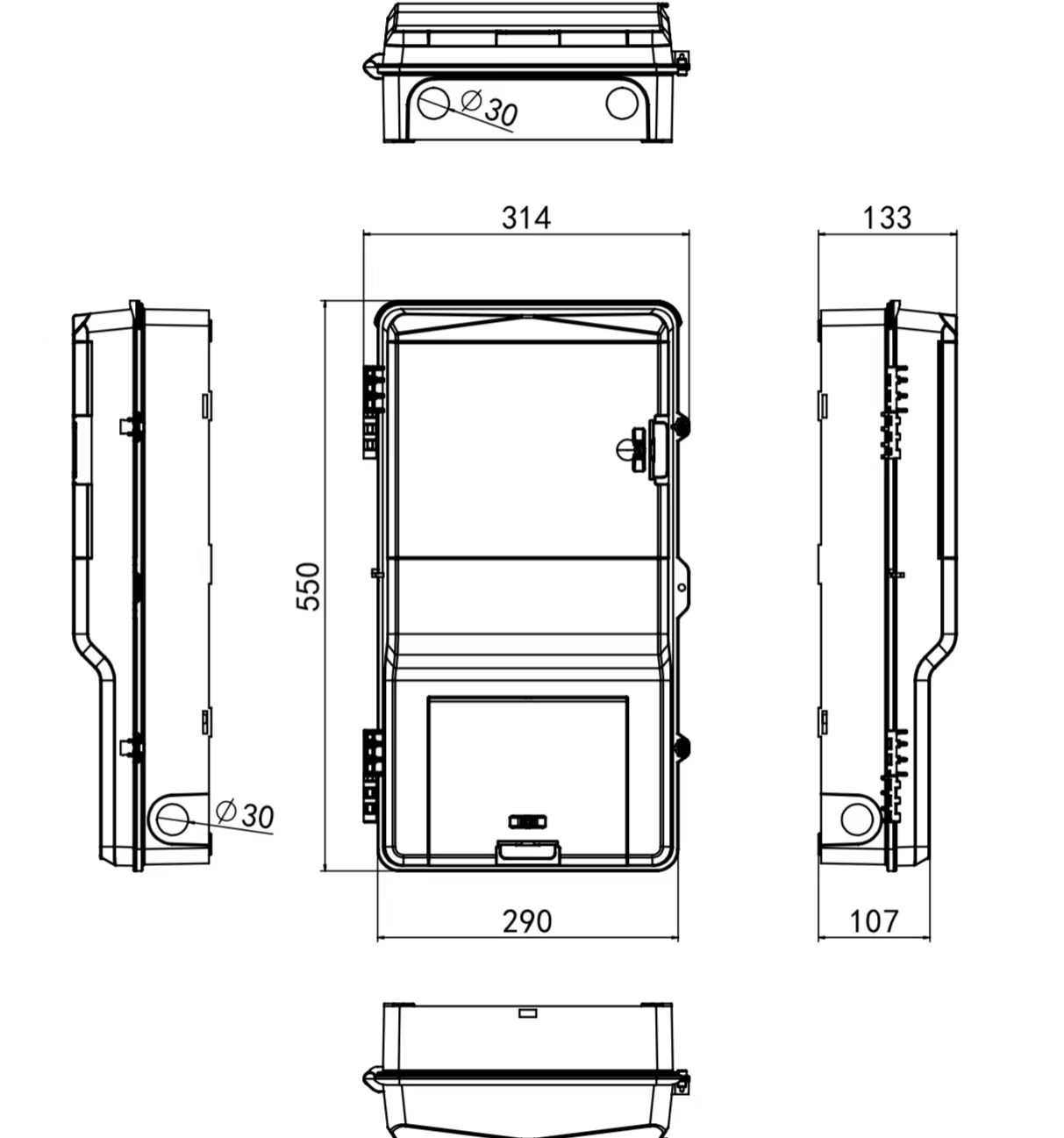

| 3 | Dimensions (HxWxD, mm) | 550mm*335mm*135mm |
| 4 | Maximum operating temperature | 85℃ |
| 5 | Maximum relative humidity | 100% |
| 6 | Maximum annual rainfall | 2000 mm |
| 7 | Maximum altitude above mean sea level | 3000m |
| 8 | Water Absorption | ≤ 0.1% |
| 9 | protection level | IP54 |
| 10 | Resistance to mechanical shocks | IK09 |
| 11 | Flammability | UL94-V0 |
| 12 | Mechanical strength | Strength:64MPA Flexural strength:103MPA |
| 13 | Light transmission (Transparent window) | >88% |
| 14 | Heat Deflection | ≥158℃ |
| 15 | Heat resistant & Flame retardant (Glow Wire) | ≥750℃ & ≥960℃ |
| 16 | Installation type | Wall mounted / Pole mounted |
| 17 | Installation Location | Indoor / Outdoor |
Product Advantages
This Three Phase Meter Panel Box is designed to provide dependable protection for utility metering and distribution systems. With practical panel structure and durable enclosure design, it helps improve installation efficiency and outdoor performance.
Application Scenarios
- Three phase panel metering
- Utility panel installations
- Outdoor service control points
- Infrastructure metering projects
- Contractor supply for panel systems
OEM / ODM Customization
CANGO supports OEM and ODM service for this meter panel box. Panel layout, internal arrangement, utility marking, mounting accessories, logo, and packaging can be customized according to application needs.
Packaging & Delivery
Standard export packing is available for this meter box. Samples can be arranged for testing and confirmation. Please contact us for lead time, packaging details, and shipping solutions.
Installation Method
This model can be installed by wall mounting or pole mounting depending on site requirements. Optional brackets and accessories can be provided for different installation conditions.
This model can be installed by wall mounting or pole mounting depending on site requirements. Optional brackets and accessories can be provided for different installation conditions.
FAQ
Q: Is this model designed as a three phase meter panel box?
A: Yes, it is intended for three phase meter panel and outdoor utility applications.
A: Yes, it is intended for three phase meter panel and outdoor utility applications.
Q: What is the advantage of the panel-style internal layout?
A: It provides practical arrangement for meter installation and improves wiring organization.
A: It provides practical arrangement for meter installation and improves wiring organization.
Q: Is this model suitable for outdoor utility metering?
A: Yes, it is suitable for outdoor utility and project metering applications.
A: Yes, it is suitable for outdoor utility and project metering applications.
Q: Can the panel structure or internal configuration be customized?
A: Yes, OEM and ODM customization is available for internal layout, logo, color, and packaging.
A: Yes, OEM and ODM customization is available for internal layout, logo, color, and packaging.
Q: Can this model be wall mounted or pole mounted?
A: Yes, both installation methods are available.
A: Yes, both installation methods are available.
Q: Can I request a sample before bulk production?
A: Yes, sample supply can be arranged before formal order.
A: Yes, sample supply can be arranged before formal order.
