Model No: KG-HL-S200
Three Phase Two Way Meter Box
CANGO supplies three phase two way meter boxes with durable construction, secure protection, and reliable outdoor performance.
Quantity :
Cango KG-HL-S200 Three Phase Two Way Meter Box
Introduction
CANGO supplies this Three Phase Two Way Meter Box for outdoor power distribution and metering projects. Designed as a three phase meter box, two way meter box, and new meter box, it provides secure enclosure protection, durable construction, and convenient installation.
Key Features
- Three phase application
- Two way internal layout
- Outdoor protection design
- Durable enclosure material
- Suitable for wall mounted or pole mounted installation
- Reliable long-term performance
Products Parameters
| S.N. | Description | Paremeters |
|---|---|---|
| 1 | Model No. | KG-HL-S200 |
| 2 | Dimension | 575mm*480mm*150mm (L*W*H) |
| 3 | Material of top cover | PC transparent |
| 4 | Material of base | PC + ABS |
| 5 | Protection degree | IP54,IK09 |
| 6 | Phase Type | Three Phase |
| 7 | Meter Position | Two Way |
| 8 | Anti-UV | Yes |
| 9 | Flame resistance degree | UL94-V0 |
| 10 | Anti-tamper protection | Seal and padlock for cover and seal for windows |
| 11 | Method of production | Injection |
| 12 | Working Temperature | -40ºC to +80ºC |
| 13 | Heat dissipation | None |
| 14 | Installation provision for MCB | Yes |
| 15 | Mounting methods | Pole mounted by stainless steel strap or wall mounted by screw |
| 16 | Thickness | cover 2mm, base 2mm, |

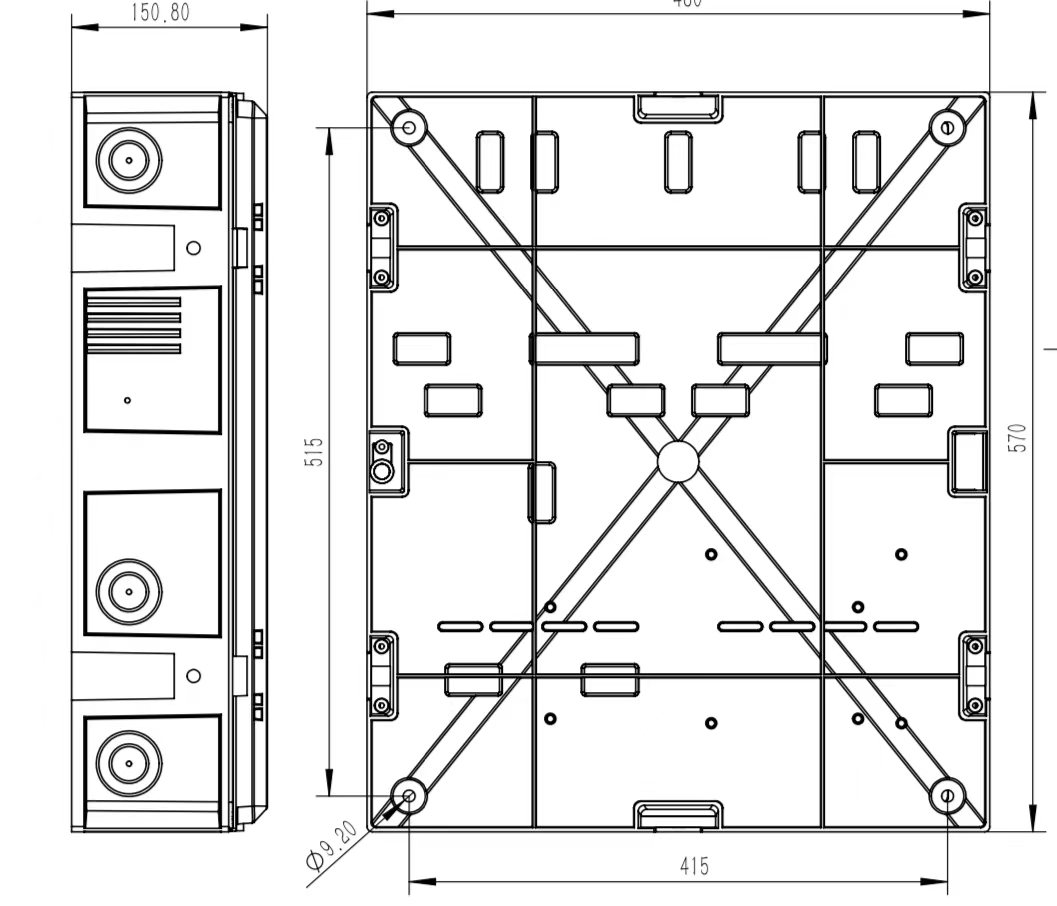

Dimension Drawing
Product Advantages
This Three Phase Two Way Meter Box is designed to provide dependable protection for outdoor metering and power distribution systems. With durable construction and practical layout, it helps improve installation efficiency and long service life.
Application Scenarios
- Dual three phase metering projects
- Commercial utility connections
- Outdoor grouped three phase installations
- Infrastructure power access points
- Industrial contractor applications
OEM / ODM Customization
CANGO supports OEM and ODM service for this three phase two way meter box. Internal layout, utility markings, bracket system, sealing details, logo, and packaging can be customized for project-based supply.
Packaging & Delivery
Standard export packing is available for this meter box. Samples can be arranged for testing and confirmation. Please contact us for lead time, packaging details, and shipping solutions.
Installation Method
This model can be installed by wall mounting or pole mounting depending on site requirements. Optional brackets and accessories can be provided for different installation conditions.
FAQ
Q: Is this model suitable for three phase two way metering projects?
A: Yes, it is designed for outdoor applications that require two three phase meter positions.
A: Yes, it is designed for outdoor applications that require two three phase meter positions.
Q: What type of project commonly uses this meter box?
A: It is commonly used in utility, infrastructure, and outdoor metering projects
Q: Is the enclosure suitable for outdoor installation?
A: Yes, it is designed for reliable outdoor metering and distribution use.
Q: Can project-specific internal arrangements be discussed?
A: Yes, internal layout and accessory requirements can be customized according to project needs.
A: Yes, internal layout and accessory requirements can be customized according to project needs.
Q: Can wall mounted and pole mounted options both be provided?
A: Yes, both mounting options are available depending on the site.
A: Yes, both mounting options are available depending on the site.
Q: Are pre-production samples available?
A: Yes, samples can be arranged before bulk order.
A: Yes, samples can be arranged before bulk order.
