Model No: KG-HY-D100A
Transparent Window Meter Box
CANGO manufactures transparent window single phase meter boxes with durable ABS+PC material and wall mounted installation for outdoor metering.
Quantity :
Cango KG-HY-D100A Transparent Window Meter Box
Introduction
CANGO supplies this Transparent Window Single Phase Meter Box for residential and utility metering projects. Designed as a transparent window meter box, single phase plastic meter box, and wall mounted meter box, it offers easy meter inspection, durable enclosure protection, and practical outdoor installation.
Key Features
- UV-resistant ABS+PC material
- Transparent windows for easy meter inspection
- Suitable for wall mounted or pole mounted installation
- Anti-tamper structure for secure meter protection
- Reliable insulation and weather resistance
- Durable enclosure for outdoor applications
Products Parameters
| S.N. | Description | Paremeters |
|---|---|---|
| 1 | Model NO. | KG-HY-D100A |
| 2 | Dimension | 400mm*210mm*121mm (L*W*H) |
| 3 | Material of top cover | PC transparent |
| 4 | Material of turnover window | PC transparent |
| 5 | Material of base | PC + ABS |
| 6 | Phase Type | Single Phase |
| 7 | Meter Position | One Way |
| 8 | Protection degree | IP54,IK09 |
| 9 | Anti-UV | Yes |
| 10 | Flame resistance degree | UL94-V0 |
| 11 | Anti-tamper protection | Seal and padlock for cover and seal for windows |
| 12 | Method of production | Injection |
| 13 | Working Temperature | -40ºC to +80ºC |
| 14 | Heat dissipation | Ventilation hole for cooling |
| 15 | Installation provision for MCB | Yes |
| 16 | Mounting methods | Pole mounted by stainless steel strap or wall mounted by screw |
| 17 | Thickness | Top cover 2mm, base 2mm, windows 2.2mm |

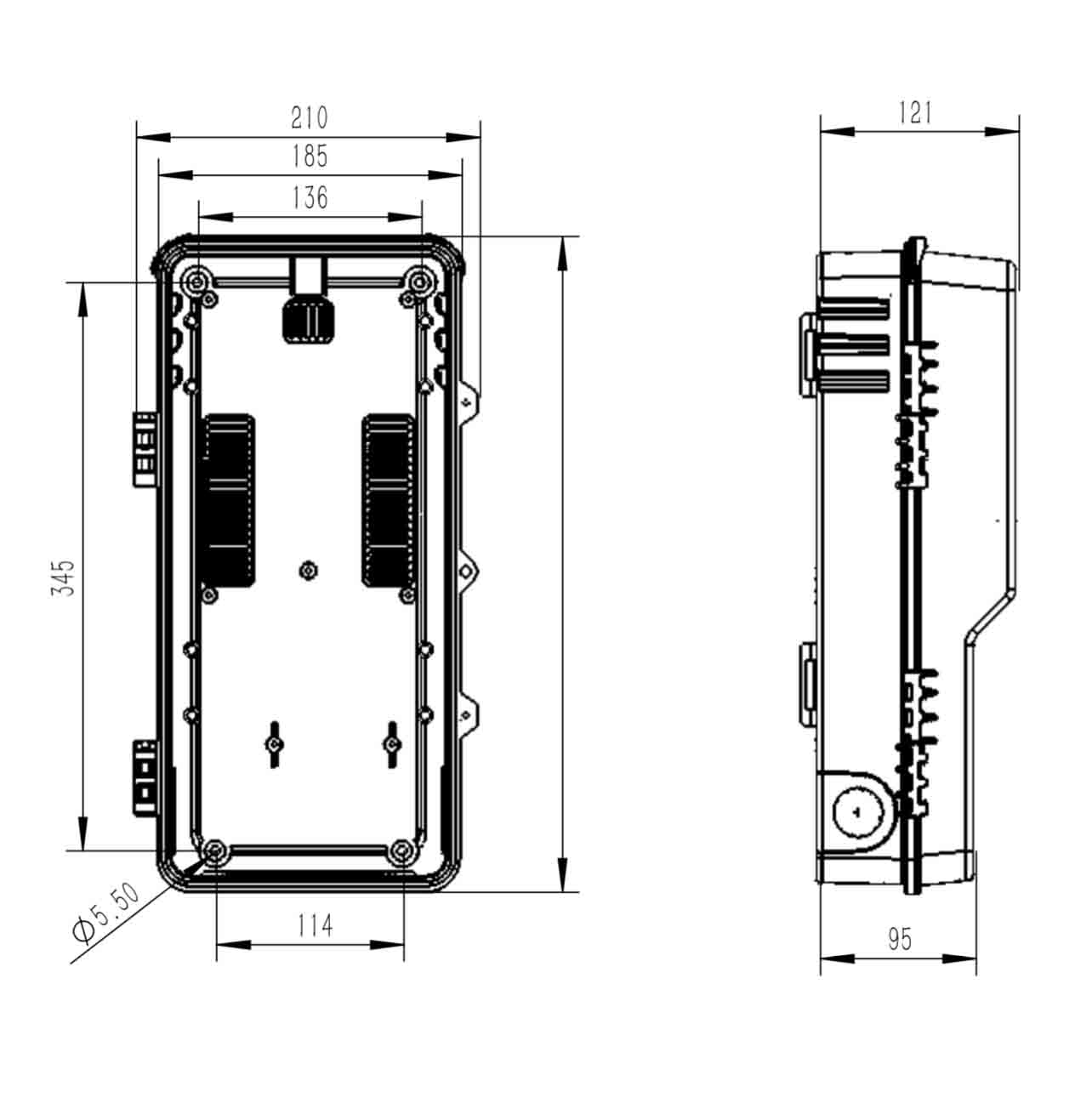

Drawing Dimensions
Product Advantages
This Single Phase Plastic Meter Box is designed to provide dependable protection for electrical metering systems. With UV resistance, transparent windows, and anti-tamper structure, it helps improve safety, service life, and installation efficiency in outdoor environments.
Application Scenarios
- Sites needing easy meter inspection
- Outdoor residential metering
- Utility replacement projects
- Wall-mounted service entrances
- Compact meter viewing installations
OEM / ODM Customization
CANGO supports OEM and ODM service for this transparent window meter box. Window design, enclosure color, mounting bracket, sealing details, logo, and packaging can be customized according to project needs.
Packaging & Delivery
Standard export packing is available for this meter box. Samples can be arranged for testing and confirmation. Please contact us for lead time, packaging details, and shipping solutions.
Installation Method
This model can be installed by wall mounting or pole mounting depending on site requirements. Optional brackets and accessories can be provided for different installation conditions.
FAQ
Q: Does this model have a transparent inspection window?
A: Yes, it is designed with a transparent window for convenient meter checking.
A: Yes, it is designed with a transparent window for convenient meter checking.
Q: Can the meter be checked without opening the box?
A: Yes, the window design allows easier reading and inspection without opening the enclosure.
Q:Is this model suitable for outdoor installations?
A: Yes, it is suitable for outdoor metering and utility applications.
Q: What material is used for the enclosure?
A: It uses durable ABS+PC material for daily outdoor protection.
A: It uses durable ABS+PC material for daily outdoor protection.
Q: Can the window style or enclosure details be customized?
A: Yes, window design, color, logo, and packaging can be customized.
A: Yes, window design, color, logo, and packaging can be customized.
Q: Are samples available before mass production?
A: Yes, samples can be arranged before bulk order.
A: Yes, samples can be arranged before bulk order.
