Model No: KG-HY-S100C
Transparent Window Three Phase Meter Box
CANGO supplies transparent window three phase meter boxes with polycarbonate housing and reliable outdoor protection for utility metering.
Quantity :
Cango KG-HY-S100C Transparent Window Three Phase Meter Box
Introduction
CANGO supplies this Transparent Window Three Phase Meter Box for utility and outdoor metering projects. Designed as a transparent window three phase meter box, polycarbonate three phase meter box, and three phase plastic metering box, it offers clear meter visibility, durable enclosure protection, and reliable long-term outdoor performance.
Key Features
- Transparent window for easy inspection
- Polycarbonate enclosure construction
- Suitable for three phase metering
- Reliable outdoor protection
- Practical installation design
Products Parameters
| S.N. | PARAMETERS | KG-HY-S100C |
|---|---|---|
| 1 | Material | Polycarbonate / ABS+PC |
| 2 | Phase Type: | Three Phase |

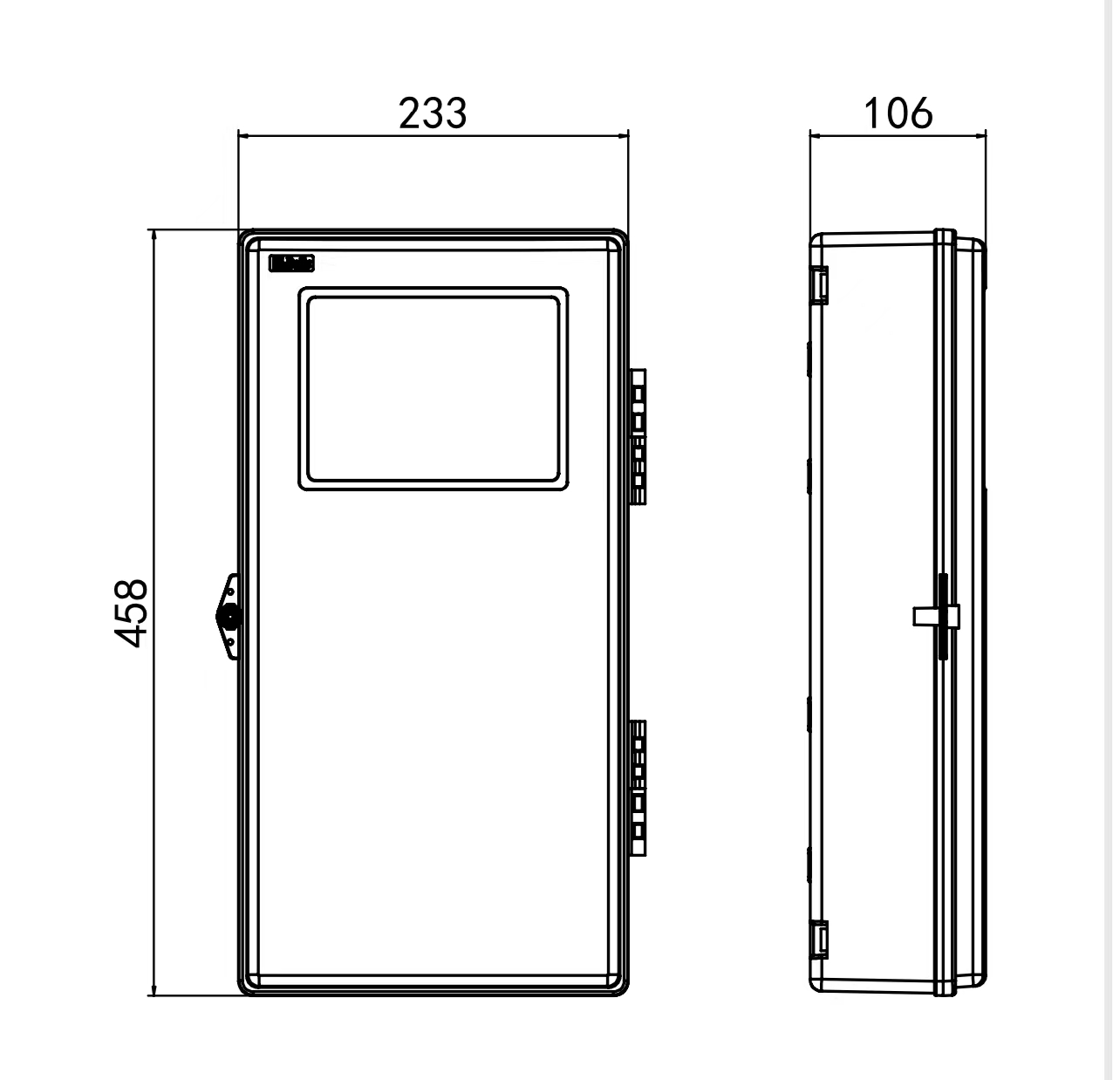

| 3 | Dimensions (HxWxD, mm) | 458mm*233mm*106mm |
| 4 | Maximum operating temperature | 85℃ |
| 5 | Maximum relative humidity | 100% |
| 6 | Maximum annual rainfall | 2000 mm |
| 7 | Maximum altitude above mean sea level | 3000m |
| 8 | Water Absorption | ≤ 0.1% |
| 9 | protection level | IP54 |
| 10 | Resistance to mechanical shocks | IK09 |
| 11 | Flammability | UL94-V0 |
| 12 | Mechanical strength | Strength:64MPA Flexural strength:103MPA |
| 13 | Light transmission (Transparent window) | >88% |
| 14 | Heat Deflection | ≥158℃ |
| 15 | Heat resistant & Flame retardant (Glow Wire) | ≥750℃ & ≥960℃ |
| 16 | Installation type | Wall mounted / Pole mounted |
| 17 | Installation Location | Utility / Outdoor Metering |
Product Advantages
This Transparent Window Three Phase Meter Box is designed to provide convenient meter inspection and reliable enclosure protection for utility metering projects. With transparent window design and durable material, it helps improve usability and outdoor performance.
Application Scenarios
- Three phase sites needing easy inspection
- Outdoor utility metering
- Commercial service entrances
- Wall-mounted transparent window installations
- Meter monitoring projects
OEM / ODM Customization
CANGO supports OEM and ODM service for this transparent window three phase meter box. Window style, material specification, bracket type, logo, label, and packaging can be customized for utility projects.
Packaging & Delivery
Standard export packing is available for this meter box. Samples can be arranged for testing and confirmation. Please contact us for lead time, packaging details, and shipping solutions.
Installation Method
This model can be installed by wall mounting or pole mounting depending on site requirements. Optional brackets and accessories can be provided for different installation conditions.
This model can be installed by wall mounting or pole mounting depending on site requirements. Optional brackets and accessories can be provided for different installation conditions.
FAQ
Q: Does this three phase model include a transparent viewing window?
A: Yes, the transparent window design allows convenient inspection and meter reading.
A: Yes, the transparent window design allows convenient inspection and meter reading.
Q: Is the polycarbonate enclosure suitable for outdoor environments?
A: Yes, the enclosure is designed for reliable outdoor use with durable material performance.
A: Yes, the enclosure is designed for reliable outdoor use with durable material performance.
Q: Is this model suitable for one way three phase metering?
A: Yes, it is suitable for one way three phase utility and outdoor metering projects.
A: Yes, it is suitable for one way three phase utility and outdoor metering projects.
Q: Can the window style, branding, or enclosure color be customized?
A: Yes, OEM and ODM customization is available for structure, window design, branding, and packaging.
A: Yes, OEM and ODM customization is available for structure, window design, branding, and packaging.
Q: Can it be wall mounted or pole mounted?
A: Yes, both mounting options are available depending on the project.
A: Yes, both mounting options are available depending on the project.
Q: Are samples available before bulk order?
A: Yes, samples can be arranged before mass production.
A: Yes, samples can be arranged before mass production.
