CANGO Product Detail
XGN15-12 12kV Ring Main Switchgear | CANGO
Medium-Voltage Switchgear for B2B Electrical Projects
XGN15-12 AC Metal-Enclosed Ring Main Switchgear is supplied for industrial and civil cable ring networks. CANGO reviews rated data, drawings, quantity, destination, and configuration notes before quotation.
Model
XGN15-12
Category
Medium-Voltage Switchgear
Application
Industrial and civil cable ring networks
Supply Type
Project quotation and technical support
Product Overview
XGN15-12 AC metal-enclosed ring main switchgear is used in industrial and civil cable ring networks and power supply terminals. It is commonly used for industrial and civil cable ring networks and small substations and switch stations, with the final selection based on rated data, drawings, and site conditions.
EPC companies, electrical contractors, utility project teams, panel builders, and industrial buyers can request configuration review for ring main switchgear. Please send single-line diagram, rated voltage, rated current, short-circuit level, protection scheme, busbar arrangement, and cabinet layout, quantity, destination, and any project standard requirements for quotation.

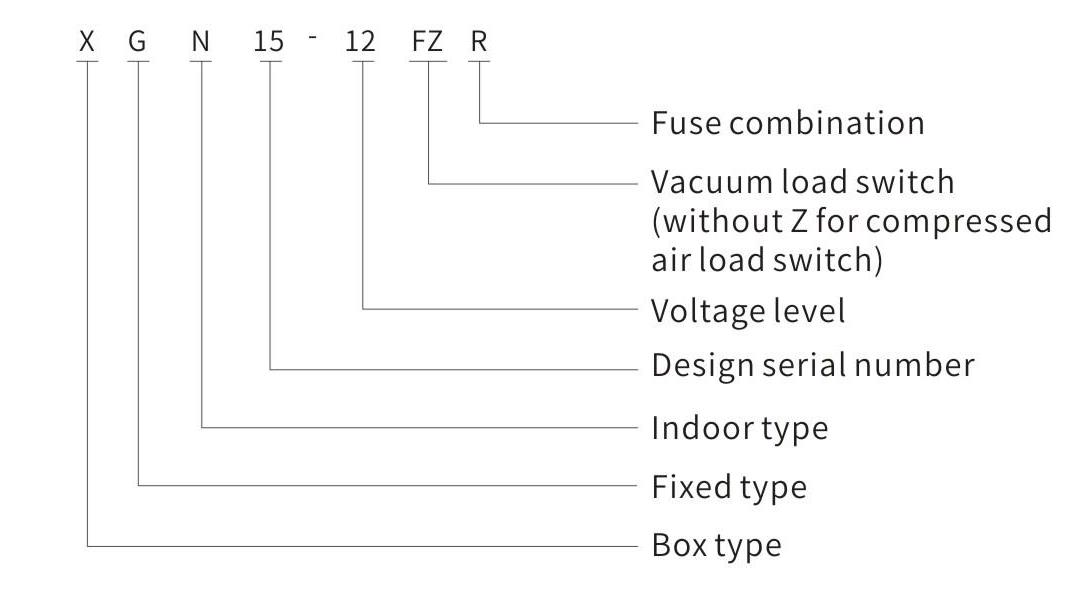

Model and Meaning
- XGN: indoor fixed box-type ring main switchgear
- 15: design serial number
- 12: rated-voltage class
- Confirm whether the ordered configuration uses a load switch, vacuum load switch, or fuse combination
Key Features
01
Safe Switching
XGN15-12: The cabinet scheme can be reviewed for rated voltage, rated current, short-circuit level, interlocking, and protection requirements. This point is especially relevant to ring main switchgear.
02
Flexible Configuration
Incoming, outgoing, metering, busbar, and protection arrangements can be matched to the project single-line diagram. For XGN15-12, check this together with the selected project scheme.
03
Utility Project Fit
The equipment is suitable for distribution rooms, substations, cable networks, and infrastructure power systems. On XGN15-12, confirm the application duty, site layout, and project standard before selection.
04
Drawing-Based Selection
Cabinet width, depth, cable trench, busbar interface, and foundation details should be confirmed from project drawings. Use the XGN15-12 drawings and rated data to confirm this point before quotation.
05
Maintenance Planning
Access, isolation, grounding, and operation sequence requirements can be reviewed before quotation. For XGN15-12, review this with ring main switchgear and the final installation plan.
Technical Specifications
XGN15-12 Technical Parameter Table
Review the XGN15-12 values, units, rated data, and project requirements before quotation.
| Name | Unit | Parameters |
|---|---|---|
| Rated voltage | kV | 12 |
| Rated frequency | Hz | 50 |
| Rated current of main bus | A | 630 |
| Rated short-time withstand current / duration of main circuit and grounding circuit | kA/s | 20/3; 20/2 |
| Rated peak withstand current of main circuit and grounding circuit | kA | 50 |
| Rated short-circuit closing current of main circuit and grounding circuit | kA | 50 |
| Number of load switch breaking times at full capacity | Time | 100 |
| Fuse breaking current | kA | 31.5 / 40 / 50 |
| Mechanical life | Time | 2000 |
| 1 min power frequency withstand voltage to ground / isolating break | kV | 42 / 48 |
| Lightning impulse withstand voltage to ground / isolating break | kV | 75 / 85 |
| 1 min power frequency withstand voltage of secondary circuit | kV | 2 |
Installation Dimensions / Drawing
Applications
XGN15-12 is mainly selected for industrial and civil cable ring networks and small substations and switch stations. The final application should match the confirmed ring main switchgear, rated data, and site installation conditions.
- Industrial and civil cable ring networks
- Small substations and switch stations
- Urban and infrastructure electrical distribution projects
Customization Options
Protection Options
Relay protection, metering, interlocking, grounding, and auxiliary circuit requirements can be reviewed by single-line diagram. Apply this review to XGN15-12 and its ring main switchgear.
Busbar Configuration
Single busbar, sectional busbar, incoming, outgoing, metering, and bus-tie arrangements should be confirmed before quotation. Apply this review to XGN15-12 and its ring main switchgear.
Cable Interface
Cable entry, cable trench, termination space, and grounding arrangement can be checked with the cabinet layout drawing. Apply this review to XGN15-12 and its ring main switchgear.
Operation Scheme
Fixed, removable, ring-main, GIS, or modular arrangements are selected according to the project network design. Apply this review to XGN15-12 and its ring main switchgear.
Single Line Diagram
Drawing Input
Provide the project single-line diagram so incoming, outgoing, metering, bus-tie, and protection functions can be reviewed. Apply this review to XGN15-12 and its ring main switchgear.
Scheme Review
Rated voltage, rated current, short-circuit level, operating sequence, and cabinet quantity should match the final network design. Apply this review to XGN15-12 and its ring main switchgear.
Protection Options
Relay and Metering
Protection relay, metering, auxiliary circuit, and communication requirements can be selected according to the project specification. Apply this review to XGN15-12 and its ring main switchgear.
Safety Interlocking
Interlocking, grounding, isolation, and operation sequence requirements should be confirmed before final cabinet design. Apply this review to XGN15-12 and its ring main switchgear.
Busbar Configuration
Busbar Arrangement
Single busbar, sectional busbar, bus coupler, and incoming / outgoing cabinet order can be checked from the layout. Apply this review to XGN15-12 and its ring main switchgear.
Interface Review
Busbar current, cable trench, cabinet depth, and connection interface should be confirmed before production. Apply this review to XGN15-12 and its ring main switchgear.
Ordering Instructions / Information Required for Quotation
ForXGN15-12, send single-line diagram, rated voltage, rated current, short-circuit level, protection scheme, busbar arrangement, and cabinet layout, quantity, destination, and the expected delivery schedule. The engineering review will be based on the selected ring main switchgear and project drawing.
ORDERING INSTRUCTIONS
- Confirm the required ring-main-unit scheme, rated voltage, rated current, and ordered circuit arrangement.
- State special environmental conditions when the project exceeds the normal technical document range.
- Confirm any other project-specific technical requirements before ordering.
