Model No: KYN61-40.5

KYN61-40.5 40.5kV Medium Voltage Switchgear | CANGO

CANGO supplies KYN61-40.5 Armored Removable AC Metal-Enclosed Switchgear for power plants and substations. Send rated data, drawings, quantity.
Quantity :
add to cart
Contact Now
CANGO Product Detail

KYN61-40.5 40.5kV Medium Voltage Switchgear | CANGO

Medium-Voltage Switchgear for B2B Electrical Projects
KYN61-40.5 Armored Removable AC Metal-Enclosed Switchgear is supplied for power plants and substations. CANGO reviews rated data, drawings, quantity, destination, and configuration notes before quotation.
Model
KYN61-40.5
Category
Medium-Voltage Switchgear
Application
Power plants and substations
Supply Type
Project quotation and technical support

Product Overview

KYN61-40.5 armored removable AC metal-enclosed switchgear is an indoor complete distribution device for receiving and distributing electrical energy in power plants,. It is commonly used for power plants and substations and industrial and mining distribution systems, with the final selection based on rated data, drawings, and site conditions.

EPC companies, electrical contractors, utility project teams, panel builders, and industrial buyers can request configuration review for medium voltage switchgear. Please send single-line diagram, rated voltage, rated current, short-circuit level, protection scheme, busbar arrangement, and cabinet layout, quantity, destination, and any project standard requirements for quotation.

Model and Meaning

  • K: metal armored type
  • Y: removable handcart type
  • N: indoor type
  • 61: design serial number
  • 40.5: rated voltage
  • Confirm the main-switch type, operating-mechanism type, special-use conditions, rated current, and short-circuit breaking current

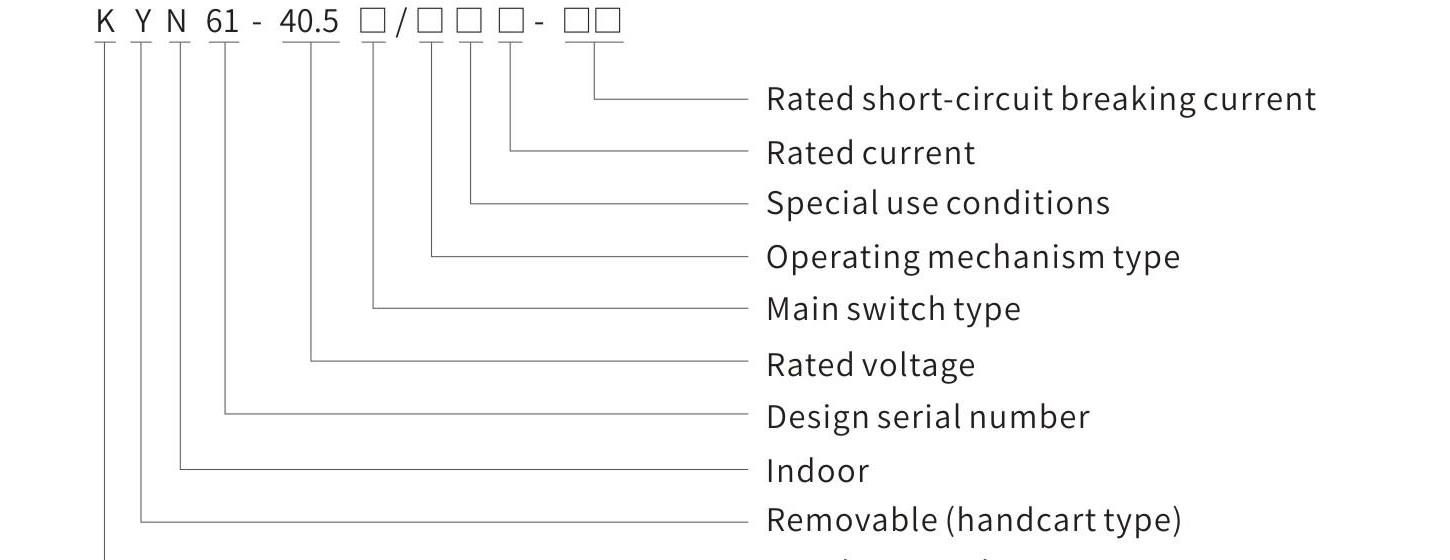

KYN61-40.5 armored removable ac metal-enclosed switchgear model and meaning diagram

Key Features

01

Safe Switching

KYN61-40.5: The cabinet scheme can be reviewed for rated voltage, rated current, short-circuit level, interlocking, and protection requirements. This point is especially relevant to medium voltage switchgear.
02

Flexible Configuration

Incoming, outgoing, metering, busbar, and protection arrangements can be matched to the project single-line diagram. For KYN61-40.5, check this together with the selected project scheme.
03

Utility Project Fit

The equipment is suitable for distribution rooms, substations, cable networks, and infrastructure power systems. On KYN61-40.5, confirm the application duty, site layout, and project standard before selection.
04

Drawing-Based Selection

Cabinet width, depth, cable trench, busbar interface, and foundation details should be confirmed from project drawings. Use the KYN61-40.5 drawings and rated data to confirm this point before quotation.
05

Maintenance Planning

Access, isolation, grounding, and operation sequence requirements can be reviewed before quotation. For KYN61-40.5, review this with medium voltage switchgear and the final installation plan.

Technical Specifications

KYN61-40.5 Technical Parameter Table
Review the KYN61-40.5 rated data, selected configuration, and project requirements before quotation.
GroupItemUnitParameter
Rated voltagekV40.5
Rated frequencyHz50
Rated currentA1250 / 1600 / 2000
Rated short-time withstand currentkA20 / 25 / 31.5
Rated peak withstand currentkA50 / 63 / 80
Rated power-frequency withstand voltagekV95 / 1 min
Rated lightning impulse withstand voltagekV185
Rated short-circuit duration4 s
Enclosure protection levelIP3X

Installation Dimensions / Drawing

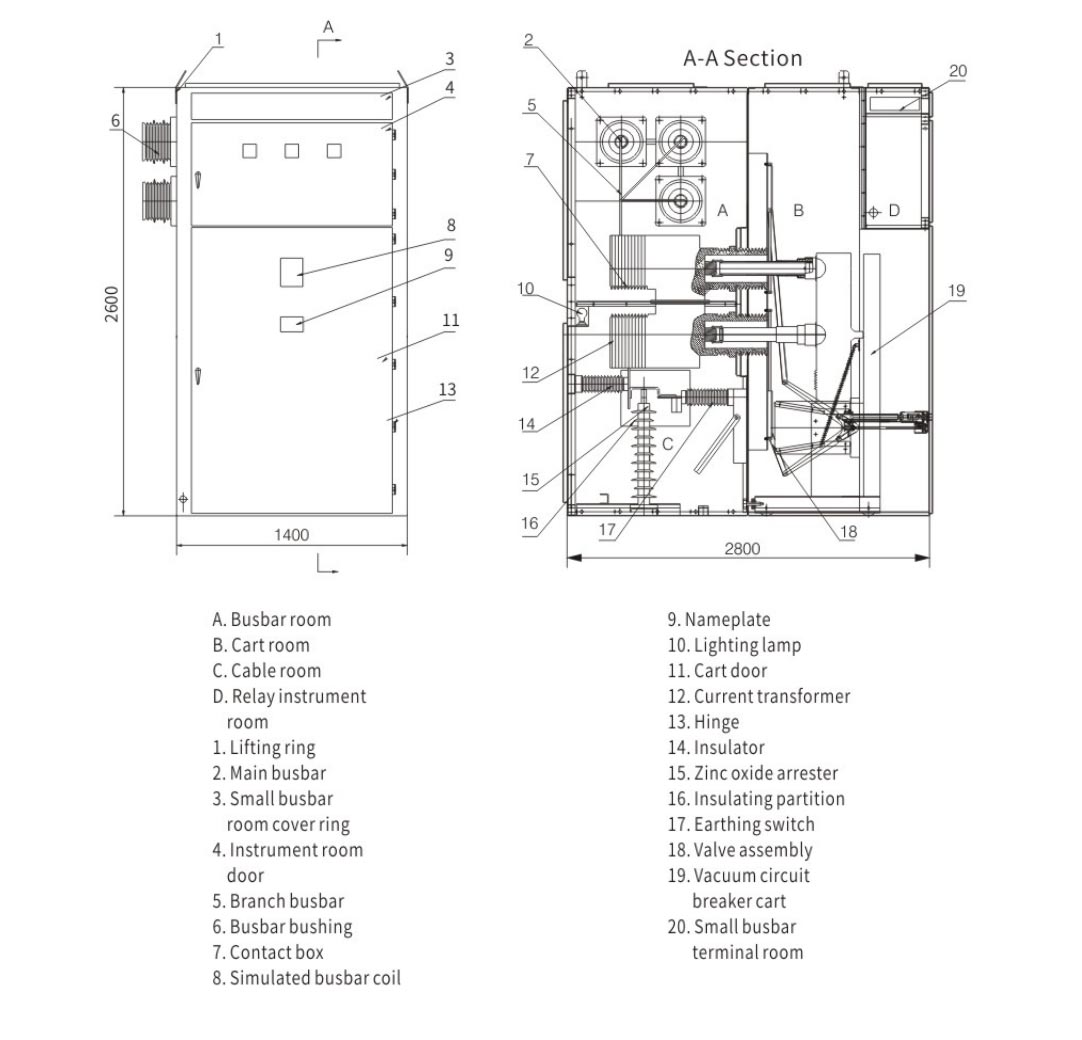

KYN61-40.5 armored removable ac metal-enclosed switchgear installation dimensions drawing
KYN61-40.5 Armored Removable AC Metal-Enclosed Switchgear installation-dimension or outline-dimension drawing for project layout review.

Applications

KYN61-40.5 is mainly selected for power plants and substations and industrial and mining distribution systems. The final application should match the confirmed medium voltage switchgear, rated data, and site installation conditions.
  • Power plants and substations
  • Industrial and mining distribution systems
  • Electrical projects requiring circuit control, protection, and monitoring

Customization Options

Protection Options

Relay protection, metering, interlocking, grounding, and auxiliary circuit requirements can be reviewed by single-line diagram. Apply this review to KYN61-40.5 and its medium voltage switchgear.

Busbar Configuration

Single busbar, sectional busbar, incoming, outgoing, metering, and bus-tie arrangements should be confirmed before quotation. Apply this review to KYN61-40.5 and its medium voltage switchgear.

Cable Interface

Cable entry, cable trench, termination space, and grounding arrangement can be checked with the cabinet layout drawing. Apply this review to KYN61-40.5 and its medium voltage switchgear.

Operation Scheme

Fixed, removable, ring-main, GIS, or modular arrangements are selected according to the project network design. Apply this review to KYN61-40.5 and its medium voltage switchgear.

Single Line Diagram

Drawing Input

Provide the project single-line diagram so incoming, outgoing, metering, bus-tie, and protection functions can be reviewed. Apply this review to KYN61-40.5 and its medium voltage switchgear.

Scheme Review

Rated voltage, rated current, short-circuit level, operating sequence, and cabinet quantity should match the final network design. Apply this review to KYN61-40.5 and its medium voltage switchgear.

Protection Options

Relay and Metering

Protection relay, metering, auxiliary circuit, and communication requirements can be selected according to the project specification. Apply this review to KYN61-40.5 and its medium voltage switchgear.

Safety Interlocking

Interlocking, grounding, isolation, and operation sequence requirements should be confirmed before final cabinet design. Apply this review to KYN61-40.5 and its medium voltage switchgear.

Busbar Configuration

Busbar Arrangement

Single busbar, sectional busbar, bus coupler, and incoming / outgoing cabinet order can be checked from the layout. Apply this review to KYN61-40.5 and its medium voltage switchgear.

Interface Review

Busbar current, cable trench, cabinet depth, and connection interface should be confirmed before production. Apply this review to KYN61-40.5 and its medium voltage switchgear.

Ordering Instructions / Information Required for Quotation

ForKYN61-40.5, send single-line diagram, rated voltage, rated current, short-circuit level, protection scheme, busbar arrangement, and cabinet layout, quantity, destination, and the expected delivery schedule. The engineering review will be based on the selected medium voltage switchgear and project drawing.

ORDERING INSTRUCTIONS

  • Provide the main-circuit scheme number, purpose, single-line diagram, arrangement diagram, and distribution-room layout.
  • Provide the auxiliary-circuit wiring schematic and terminal arrangement.
  • Confirm electrical-component models, specifications, quantities, control, measurement, protection, locking, and automatic-device requirements.
  • State busbar-bridge requirements, accessories, spare parts, and any special environmental conditions.

Technical Support & Documentation

FAQ

What applications is KYN61-40.5 used for?
KYN61-40.5 is used for Power plants and substations, Industrial and mining distribution systems, Electrical projects requiring circuit control, protection, and monitoring. The final selection should match the project voltage, current, circuit arrangement, and installation conditions.
Which buyers commonly source KYN61-40.5?
EPC companies, electrical contractors, utility project teams, panel builders, and industrial buyers commonly use this product for project-based electrical distribution, installation, replacement, or system expansion work.
Which rated voltage or current should be confirmed for KYN61-40.5?
Confirm the rated voltage, rated current, short-circuit level, frequency, protection level, and configuration shown in the technical specifications before quotation.
CanKYN61-40.5 be configured for a specific project?
Yes.CANGO can review project-specific configurations according to drawings, rated data, protection requirements, component requirements, and site conditions before quotation.
Which standards should be confirmed?
Applicable standards depend on the project and destination market. State IEC, local utility, component, testing, or documentation requirements in the inquiry.
What installation information is required?
KYN61-40.5 has an installation-dimension or outline-dimension image for layout review. The final drawing should still be confirmed according to the selected configuration.
What information is needed for quotation?
For quotation, send single-line diagram, rated voltage and rated current, short-circuit level, number of incoming and outgoing feeders, quantity, project country, delivery requirement, and any special component or environmental requirements.
How is delivery time confirmed for KYN61-40.5?
Delivery time depends on the confirmed configuration, quantity, component selection, documentation requirement, and production schedule. Share the project deadline during inquiry.
