Model No: KYN28-24
KYN28-24 24kV Metal-Clad Switchgear | CANGO
CANGO supplies KYN28-24 Armored Removable AC Metal-Enclosed Switchgear for medium-voltage power distribution systems. Send rated data, drawings, quantity.
Quantity :
CANGO Product Detail
KYN28-24 24kV Metal-Clad Switchgear | CANGO
Medium-Voltage Switchgear for B2B Electrical Projects
KYN28-24 Armored Removable AC Metal-Enclosed Switchgear is supplied for medium-voltage power distribution systems. CANGO reviews rated data, drawings, quantity, destination, and configuration notes before quotation.
Model
KYN28-24
Category
Medium-Voltage Switchgear
Application
Medium-voltage power distribution systems
Supply Type
Project quotation and technical support
Product Overview
KYN28-24 armored removable AC metal-enclosed switchgear is used to receive and distribute electrical energy and to control, protect, and monitor circuits in three-phase AC. It is commonly used for medium-voltage power distribution systems and distribution rooms requiring removable switchgear, with the final selection based on rated data, drawings, and site conditions.
EPC companies, electrical contractors, utility project teams, panel builders, and industrial buyers can request configuration review for medium voltage switchgear. Please send single-line diagram, rated voltage, rated current, short-circuit level, protection scheme, busbar arrangement, and cabinet layout, quantity, destination, and any project standard requirements for quotation.

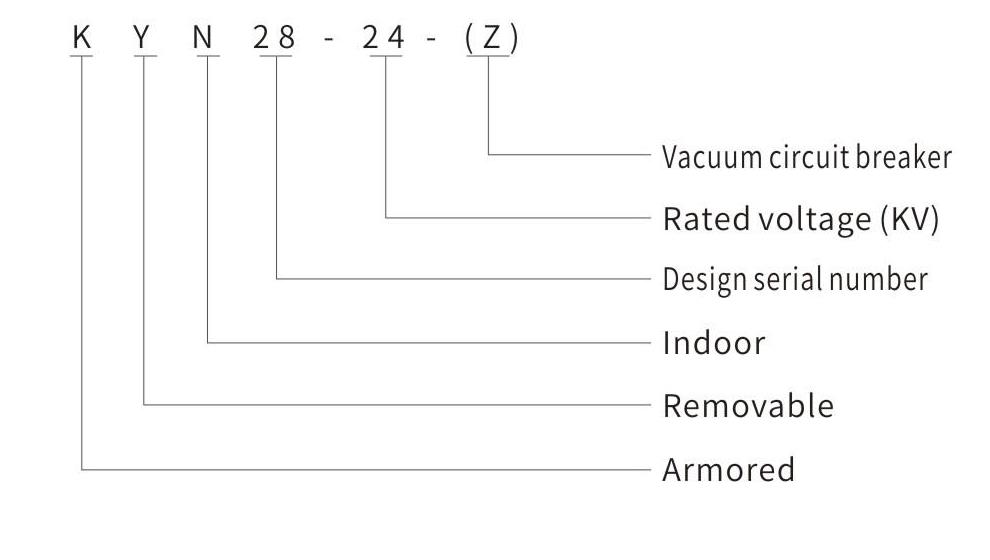

Model and Meaning
- K: armored switchgear
- Y: removable type
- N: indoor type
- 28: design serial number
- 24: rated-voltage class
- Confirm the selected vacuum circuit breaker and ordered circuit configuration
Key Features
01
Safe Switching
KYN28-24: The cabinet scheme can be reviewed for rated voltage, rated current, short-circuit level, interlocking, and protection requirements. This point is especially relevant to medium voltage switchgear.
02
Flexible Configuration
Incoming, outgoing, metering, busbar, and protection arrangements can be matched to the project single-line diagram. For KYN28-24, check this together with the selected project scheme.
03
Utility Project Fit
The equipment is suitable for distribution rooms, substations, cable networks, and infrastructure power systems. On KYN28-24, confirm the application duty, site layout, and project standard before selection.
04
Drawing-Based Selection
Cabinet width, depth, cable trench, busbar interface, and foundation details should be confirmed from project drawings. Use the KYN28-24 drawings and rated data to confirm this point before quotation.
05
Maintenance Planning
Access, isolation, grounding, and operation sequence requirements can be reviewed before quotation. For KYN28-24, review this with medium voltage switchgear and the final installation plan.
Technical Specifications
KYN28-24 Technical Parameter Table
Review the KYN28-24 values, units, rated data, and project requirements before quotation.
| Item | Unit | Data | ||
|---|---|---|---|---|
| Rated voltage | kV | 24 | ||
| Rated frequency | Hz | 50 | ||
| Rated current of circuit breaker | A | 630, 1250, 1600, 2000, 2500, 3150, 4000 | ||
| Rated current of switchgear | A | 630, 1250, 1600, 2000, 2500, 3150, 4000 | ||
| Rated dynamic stability current (4s) | kA | 16, 20, 25, 31.5, 40, 50 | ||
| Rated stability current (peak value) | kA | 40, 50, 63, 80, 100, 125 | ||
| Rated short-circuit breaking current | kA | 16, 20, 25, 31.5, 40, 50 | ||
| Rated short-circuit closing current (peak value) | kA | 40, 50, 63, 80, 100, 125 | ||
| Rated insulation level | 1 min power frequency withstand voltage | Between poles, pole to ground | kV | 65 |
| Between breaks | kV | 79 | ||
| Lightning impulse withstand voltage (peak value) | Between poles, pole to ground, and break | kV | 125 | |
| Between breaks | kV | 145 | ||
| Protection level | Housing IP4X, isolation room, circuit breaker room door open IP2X | |||
Note: The short-circuit capacity of the current transformer is considered separately.
Installation Dimensions / Drawing
Applications
KYN28-24 is mainly selected for medium-voltage power distribution systems and distribution rooms requiring removable switchgear. The final application should match the confirmed medium voltage switchgear, rated data, and site installation conditions.
- Medium-voltage power distribution systems
- Distribution rooms requiring removable switchgear
- Electrical projects requiring circuit protection and monitoring
Customization Options
Protection Options
Relay protection, metering, interlocking, grounding, and auxiliary circuit requirements can be reviewed by single-line diagram. Apply this review to KYN28-24 and its medium voltage switchgear.
Busbar Configuration
Single busbar, sectional busbar, incoming, outgoing, metering, and bus-tie arrangements should be confirmed before quotation. Apply this review to KYN28-24 and its medium voltage switchgear.
Cable Interface
Cable entry, cable trench, termination space, and grounding arrangement can be checked with the cabinet layout drawing. Apply this review to KYN28-24 and its medium voltage switchgear.
Operation Scheme
Fixed, removable, ring-main, GIS, or modular arrangements are selected according to the project network design. Apply this review to KYN28-24 and its medium voltage switchgear.
Single Line Diagram
Drawing Input
Provide the project single-line diagram so incoming, outgoing, metering, bus-tie, and protection functions can be reviewed. Apply this review to KYN28-24 and its medium voltage switchgear.
Scheme Review
Rated voltage, rated current, short-circuit level, operating sequence, and cabinet quantity should match the final network design. Apply this review to KYN28-24 and its medium voltage switchgear.
Protection Options
Relay and Metering
Protection relay, metering, auxiliary circuit, and communication requirements can be selected according to the project specification. Apply this review to KYN28-24 and its medium voltage switchgear.
Safety Interlocking
Interlocking, grounding, isolation, and operation sequence requirements should be confirmed before final cabinet design. Apply this review to KYN28-24 and its medium voltage switchgear.
Busbar Configuration
Busbar Arrangement
Single busbar, sectional busbar, bus coupler, and incoming / outgoing cabinet order can be checked from the layout. Apply this review to KYN28-24 and its medium voltage switchgear.
Interface Review
Busbar current, cable trench, cabinet depth, and connection interface should be confirmed before production. Apply this review to KYN28-24 and its medium voltage switchgear.
Ordering Instructions / Information Required for Quotation
ForKYN28-24, send single-line diagram, rated voltage, rated current, short-circuit level, protection scheme, busbar arrangement, and cabinet layout, quantity, destination, and the expected delivery schedule. The engineering review will be based on the selected medium voltage switchgear and project drawing.
ORDERING INSTRUCTIONS
- Provide the main-circuit scheme number, purpose, single-line system diagram, rated voltage, rated current, rated short-circuit breaking current, distribution-room layout, and switchgear arrangement.
- State the requirements for switchgear control, measurement, protection, locking, and automatic devices.
- Provide the models, specifications, and quantities of the main electrical components.
- If a busbar bridge is required, provide its rated current-carrying capacity, span, height from the ground, and other requirements.
- State any special environmental conditions and other special requirements.
