Model No: XGN66-12
XGN66-12 12kV Fixed Switchgear | CANGO
CANGO supplies XGN66-12 box-type fixed metal-enclosed switchgear for 12kV medium-voltage distribution. Send specs, drawings and quantity.
Quantity :
CANGO Product Detail
XGN66-12 12kV Fixed Switchgear | CANGO
Medium-Voltage Switchgear for B2B Electrical Projects
XGN66-12 Box-Type Fixed Metal-Enclosed Switchgear is supplied for medium-voltage power distribution. CANGO reviews rated data, drawings, quantity, destination, and configuration notes before quotation.
Model
XGN66-12
Category
Medium-Voltage Switchgear
Application
Medium-voltage power distribution
Supply Type
Project quotation and technical support
Product Overview
XGN66-12 box-type fixed metal-enclosed switchgear is intended for receiving and distributing electrical energy in three-phase AC systems. It is commonly used for medium-voltage power distribution and frequent-operation electrical locations, with the final selection based on rated data, drawings, and site conditions.
EPC companies, electrical contractors, utility project teams, panel builders, and industrial buyers can request configuration review for fixed metal enclosed switchgear. Please send single-line diagram, rated voltage, rated current, short-circuit level, protection scheme, busbar arrangement, and cabinet layout, quantity, destination, and any project standard requirements for quotation.

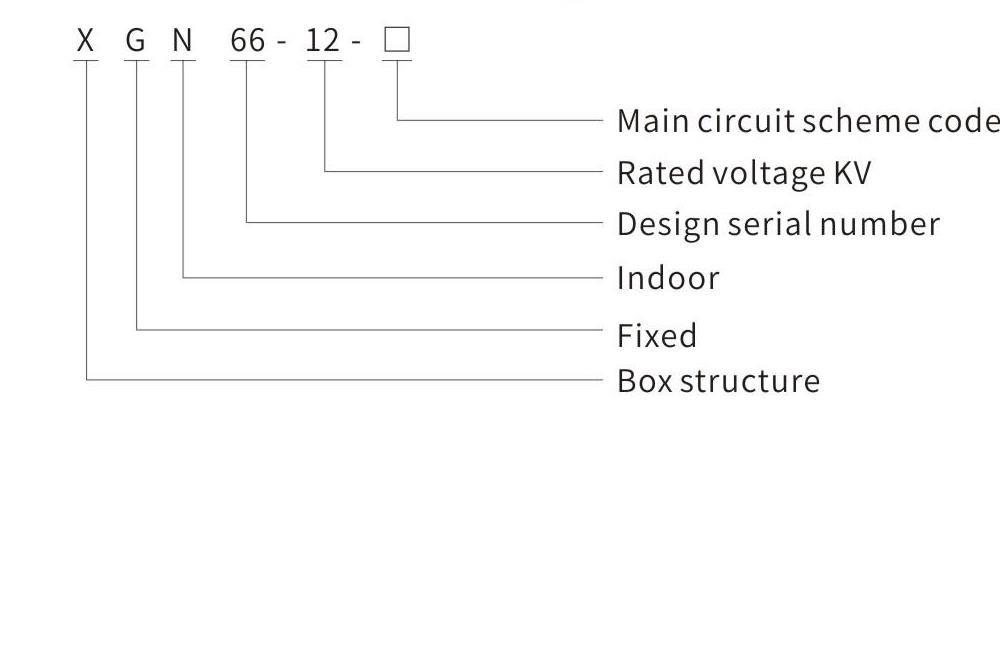

Model and Meaning
- XGN: indoor fixed box-type switchgear
- 66: design serial number
- 12: rated-voltage class
- Confirm the selected main-circuit scheme code
Key Features
01
Safe Switching
XGN66-12: The cabinet scheme can be reviewed for rated voltage, rated current, short-circuit level, interlocking, and protection requirements. This point is especially relevant to fixed metal enclosed switchgear.
02
Flexible Configuration
Incoming, outgoing, metering, busbar, and protection arrangements can be matched to the project single-line diagram. For XGN66-12, check this together with the selected project scheme.
03
Utility Project Fit
The equipment is suitable for distribution rooms, substations, cable networks, and infrastructure power systems. On XGN66-12, confirm the application duty, site layout, and project standard before selection.
04
Drawing-Based Selection
Cabinet width, depth, cable trench, busbar interface, and foundation details should be confirmed from project drawings. Use the XGN66-12 drawings and rated data to confirm this point before quotation.
05
Maintenance Planning
Access, isolation, grounding, and operation sequence requirements can be reviewed before quotation. For XGN66-12, review this with fixed metal enclosed switchgear and the final installation plan.
Technical Specifications
XGN66-12 Technical Parameter Table
Review the XGN66-12 values, units, rated data, and project requirements before quotation.
| project | unit | technical parameters |
|---|---|---|
| Rated voltage | kV | 3.6 / 7.2 / 12 |
| Rated current | A | 630 / 1250 |
| Rated short-circuit breaking current | kA | 20 / 25 / 31.5 |
| Rated short-circuit closing current | kA | 50 / 63 / 80 |
| Rated short-time withstand current (4s effective value) | kA | 20 / 25 / 31.5 |
| Rated peak withstand current (peak value) | kA | 50 / 63 / 80 |
| 1 min power frequency withstand voltage | kV | 42 |
| Lightning impulse withstand voltage | kV | 75 |
| Secondary circuit 1 min power frequency withstand voltage | kV | 2 |
| Protection level | IP3X | |
| Dimensions (width x depth x height) | mm | 900 x 1000 x 2200 |
Installation Dimensions / Drawing
Applications
XGN66-12 is mainly selected for medium-voltage power distribution and frequent-operation electrical locations. The final application should match the confirmed fixed metal enclosed switchgear, rated data, and site installation conditions.
- Medium-voltage power distribution
- Frequent-operation electrical locations
- Switchgear renovation projects
Customization Options
Protection Options
Relay protection, metering, interlocking, grounding, and auxiliary circuit requirements can be reviewed by single-line diagram. Apply this review to XGN66-12 and its fixed metal enclosed switchgear.
Busbar Configuration
Single busbar, sectional busbar, incoming, outgoing, metering, and bus-tie arrangements should be confirmed before quotation. Apply this review to XGN66-12 and its fixed metal enclosed switchgear.
Cable Interface
Cable entry, cable trench, termination space, and grounding arrangement can be checked with the cabinet layout drawing. Apply this review to XGN66-12 and its fixed metal enclosed switchgear.
Operation Scheme
Fixed, removable, ring-main, GIS, or modular arrangements are selected according to the project network design. Apply this review to XGN66-12 and its fixed metal enclosed switchgear.
Single Line Diagram
Drawing Input
Provide the project single-line diagram so incoming, outgoing, metering, bus-tie, and protection functions can be reviewed. Apply this review to XGN66-12 and its fixed metal enclosed switchgear.
Scheme Review
Rated voltage, rated current, short-circuit level, operating sequence, and cabinet quantity should match the final network design. Apply this review to XGN66-12 and its fixed metal enclosed switchgear.
Protection Options
Relay and Metering
Protection relay, metering, auxiliary circuit, and communication requirements can be selected according to the project specification. Apply this review to XGN66-12 and its fixed metal enclosed switchgear.
Safety Interlocking
Interlocking, grounding, isolation, and operation sequence requirements should be confirmed before final cabinet design. Apply this review to XGN66-12 and its fixed metal enclosed switchgear.
Busbar Configuration
Busbar Arrangement
Single busbar, sectional busbar, bus coupler, and incoming / outgoing cabinet order can be checked from the layout. Apply this review to XGN66-12 and its fixed metal enclosed switchgear.
Interface Review
Busbar current, cable trench, cabinet depth, and connection interface should be confirmed before production. Apply this review to XGN66-12 and its fixed metal enclosed switchgear.
Ordering Instructions / Information Required for Quotation
ForXGN66-12, send single-line diagram, rated voltage, rated current, short-circuit level, protection scheme, busbar arrangement, and cabinet layout, quantity, destination, and the expected delivery schedule. The engineering review will be based on the selected fixed metal enclosed switchgear and project drawing.
ORDERING INSTRUCTIONS
- Provide the primary-wiring scheme diagram and primary-wiring arrangement diagram.
- Provide the secondary-circuit schematic, wiring diagram, and terminal-wiring diagram.
- Provide the primary and secondary equipment list.
- Provide the switch-cabinet layout and busbar-bridge installation location.
- State spare-parts requirements and any special equipment-use conditions.
Technical Support & Documentation
Series Technical DocumentRequest the series technical document for 12kv fixed metal enclosed switchgear supplier and compare XGN66-12 with related models and confirmed technical data.Project Technical SupportSend project data for fixed box type switchgear manufacturer so CANGO can review rated values, configuration notes, and application conditions.Send Single Line DiagramShare the single-line diagram or layout when checking compact medium voltage switch cabinet factory for the selected XGN66-12configuration.Engineering ConsultationDiscuss site conditions, documentation needs, and quotation details for switchgear renovation cabinet exporter.
FAQ
Related Products
XGN15-12 AC Metal-Enclosed Ring Main SwitchgearXGN15-12 AC Metal-Enclosed Ring Main Switchgear for industrial and civil cable ring networks.HXGN17-12 Box-Type Fixed Metal-Enclosed Ring Main SwitchgearHXGN17-12 Box-Type Fixed Metal-Enclosed Ring Main Switchgear for ring network distribution systems.SRM-12 12kV Gas-Insulated RMUSRM-12 12kV Gas-Insulated RMU for urban and rural distribution systems.GTXGN-12 Solid-Insulated Ring Main UnitGTXGN-12 Solid-Insulated Ring Main Unit for cable ring networks and distribution terminals.
Contact / Inquiry CTA
Send project data for XGN66-12. The fields below are the recommended information for quotation and technical review.
Use the buttons below to send the project request by email or open the contact page. If you have drawings, attach the file in the email or share a file link in the message.
Request Quotation for XGN66-12
This is project-based power distribution equipment. Share the single-line diagram, rated data, cabinet arrangement, quantity, and destination, and CANGO will review the configuration before quotation.
