Model No: 35kV Series
35kV Distribution Transformer | CANGO
CANGO supplies 35kV Series Distribution Transformer for 35 kv distribution projects. Send rated data, drawings, quantity, and destination for quotation.
Quantity :
CANGO Product Detail
35kV Distribution Transformer | CANGO
Power Transformers for B2B Electrical Projects
35kV Series Distribution Transformer is supplied for 35 kv distribution projects. CANGO reviews rated data, drawings, quantity, destination, and configuration notes before quotation.
Model
35kV Series
Category
Power Transformers
Application
35 kV distribution projects
Supply Type
Project quotation and technical support
Product Overview
The 35 kV series distribution transformer is designed for electrical energy distribution projects. It is commonly used for 35 kv distribution projects and utility distribution networks, with the final selection based on rated data, drawings, and site conditions.
utilities, EPC contractors, transformer distributors, industrial project owners, and electrical engineering companies can request configuration review for distribution transformer. Please send capacity, voltage combination, tap range, connection group, cooling or insulation type, loss data, impedance, and installation environment, quantity, destination, and any project standard requirements for quotation.

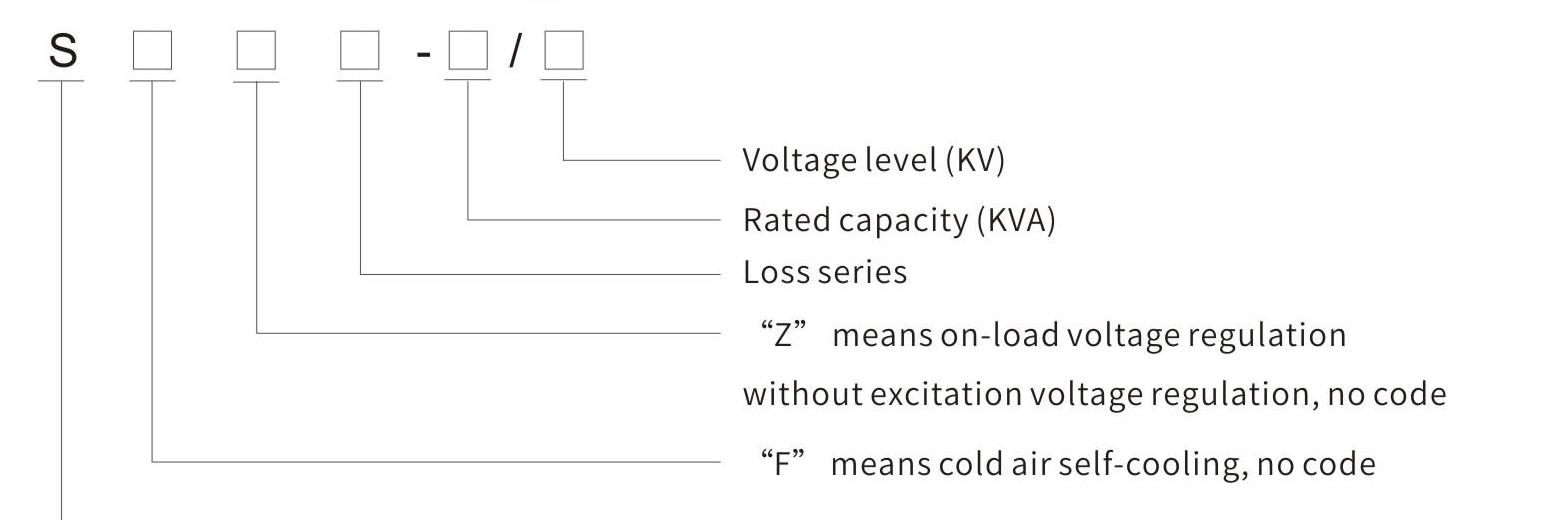

Model and Meaning
Key Features
01
Capacity Selection
35kV Series: Capacity, high-voltage and low-voltage combination, tap range, and connection group are confirmed before quotation. This point is especially relevant to distribution transformer.
02
Cooling and Insulation
Oil-immersed, dry-type, amorphous alloy, and H-class requirements are reviewed according to installation conditions. For 35kV Series, check this together with the selected project scheme.
03
Loss Data Review
No-load loss, load loss, impedance, and efficiency-related data should be matched with the selected capacity. On 35kV Series, confirm the application duty, site layout, and project standard before selection.
04
Project Installation
Foundation, lifting, terminal position, ventilation, and clearance requirements need confirmation before delivery. Use the 35kV Series drawings and rated data to confirm this point before quotation.
05
Application Flexibility
Transformer selection can support utility, industrial, commercial, indoor, outdoor, and renewable-energy projects. For 35kV Series, review this with distribution transformer and the final installation plan.
Technical Specifications
35 kV Class 50-2500 kVA Three-Phase Double-Winding Non-Excitation Voltage-Regulating Distribution Transformer
| Model | Rated capacity (kVA) | Connection group | High voltage (kV) | Tap range (%) | Low voltage (kV) | No-load loss (W) | Load loss (W) | No-load current (%) | Short-circuit impedance (%) |
|---|---|---|---|---|---|---|---|---|---|
| S11-50 | 50 | Dyn11 / Yyn0 | 35 / 38.5 | +/-2 x 2.5% / +/-5% | 0.4 | 0.16 | 1.20/1.14 | 1.3 | 6.5 |
| S11-100 | 100 | Dyn11 / Yyn0 | 35 / 38.5 | +/-2 x 2.5% / +/-5% | 0.4 | 0.23 | 2.01/1.91 | 1.1 | 6.5 |
| S11-125 | 125 | Dyn11 / Yyn0 | 35 / 38.5 | +/-2 x 2.5% / +/-5% | 0.4 | 0.27 | 2.37/2.26 | 1.1 | 6.5 |
| S11-160 | 160 | Dyn11 / Yyn0 | 35 / 38.5 | +/-2 x 2.5% / +/-5% | 0.4 | 0.28 | 2.82/2.68 | 1 | 6.5 |
| S11-200 | 200 | Dyn11 / Yyn0 | 35 / 38.5 | +/-2 x 2.5% / +/-5% | 0.4 | 0.34 | 3.32/3.16 | 1 | 6.5 |
| S11-250 | 250 | Dyn11 / Yyn0 | 35 / 38.5 | +/-2 x 2.5% / +/-5% | 0.4 | 0.4 | 3.95/3.76 | 0.95 | 6.5 |
| S11-315 | 315 | Dyn11 / Yyn0 | 35 / 38.5 | +/-2 x 2.5% / +/-5% | 0.4 | 0.48 | 4.75/4.53 | 0.95 | 6.5 |
| S11-400 | 400 | Dyn11 / Yyn0 | 35 / 38.5 | +/-2 x 2.5% / +/-5% | 0.4 | 0.58 | 5.74/5.47 | 0.85 | 6.5 |
| S11-500 | 500 | Dyn11 / Yyn0 | 35 / 38.5 | +/-2 x 2.5% / +/-5% | 0.4 | 0.68 | 6.91/6.58 | 0.85 | 6.5 |
| S11-630 | 630 | Dyn11 / Yyn0 | 35 / 38.5 | +/-2 x 2.5% / +/-5% | 0.4 | 0.83 | 7.86 | 0.65 | 6.5 |
| S11-800 | 800 | Dyn11 / Yyn0 | 35 / 38.5 | +/-2 x 2.5% / +/-5% | 0.4 | 0.98 | 9.4 | 0.65 | 6.5 |
| S11-1000 | 1000 | Dyn11 / Yyn0 | 35 / 38.5 | +/-2 x 2.5% / +/-5% | 0.4 | 1.15 | 11.5 | 0.65 | 6.5 |
| S11-1250 | 1250 | Dyn11 / Yyn0 | 35 / 38.5 | +/-2 x 2.5% / +/-5% | 0.4 | 1.4 | 13.9 | 0.6 | 6.5 |
| S11-1600 | 1600 | Dyn11 / Yyn0 | 35 / 38.5 | +/-2 x 2.5% / +/-5% | 0.4 | 1.69 | 16.6 | 0.6 | 6.5 |
| S11-2000 | 2000 | Dyn11 / Yyn0 | 35 / 38.5 | +/-2 x 2.5% / +/-5% | 0.4 | 1.99 | 19.7 | 0.55 | 6.5 |
| S11-2500 | 2500 | Dyn11 / Yyn0 | 35 / 38.5 | +/-2 x 2.5% / +/-5% | 0.4 | 2.36 | 23.2 | 0.55 | 6.5 |
For capacities up to 500 kVA, load-loss values before/after the slash apply to Dyn11 / Yyn0 connection groups respectively. The source also notes that the highest operating efficiency is obtained at an annual average load rate of 30%-36% when the listed loss values are used.
Installation Dimensions / Drawing
For35kV Series, confirm the capacity-specific outline dimensions, installation base, terminal position, cooling clearance, and lifting / handling requirements. Use the confirmed technical table, project drawing, and site installation plan as the final dimensional reference before ordering or installation.
Applications
35kV Series is mainly selected for 35 kv distribution projects and utility distribution networks. The final application should match the confirmed distribution transformer, rated data, and site installation conditions.
- 35 kV distribution projects
- Utility distribution networks
- Industrial electrical distribution systems
Customization Options
Cooling Method
Oil-immersed, dry-type, natural cooling, forced-air, or special cooling requirements should be confirmed by model and site condition. Apply this review to 35kV Series and its distribution transformer.
Winding Material
Copper or aluminum winding requirements should be confirmed when the project specification requires a fixed material. Apply this review to 35kV Series and its distribution transformer.
Loss Data
No-load loss, load loss, impedance voltage, and efficiency information should be checked against the selected capacity. Apply this review to 35kV Series and its distribution transformer.
Installation Method
Indoor, outdoor, foundation, ventilation, lifting, terminal position, and clearance requirements should be provided before quotation. Apply this review to 35kV Series and its distribution transformer.
Cooling Method and Winding Material
Cooling Review
Confirm oil-immersed, dry-type, natural cooling, forced-air, or other cooling requirements according to the installation site. Apply this review to 35kV Series and its distribution transformer.
Winding Requirement
State copper or aluminum winding requirements when the project specification defines the material. Apply this review to 35kV Series and its distribution transformer.
Loss Data and Efficiency Information
Performance Data
No-load loss, load loss, impedance, noise, and temperature rise should be reviewed for the selected capacity. Apply this review to 35kV Series and its distribution transformer.
Efficiency Review
Energy-efficiency level or local efficiency requirements should be confirmed before quotation if required by the project. Apply this review to 35kV Series and its distribution transformer.
Ordering Instructions / Information Required for Quotation
For35kV Series, send capacity, voltage combination, tap range, connection group, cooling or insulation type, loss data, impedance, and installation environment, quantity, destination, and the expected delivery schedule. The engineering review will be based on the selected distribution transformer and project drawing.
ORDERING INSTRUCTIONS
- State the required 35kV Series configuration, quantity, project destination, and intended application.
- Provide capacity, voltage combination, tap range, connection group, impedance, loss data, cooling or insulation type, and installation environment for technical review.
- Confirm confirm the capacity-specific outline dimensions, installation base, terminal position, cooling clearance, and lifting / handling requirements before final production or installation planning.
- List any special environmental, wiring, communication, metering, protection, or component requirements in the inquiry.
Technical Support & Documentation
Series Technical DocumentRequest the series technical document for 35kv distribution transformer supplier and compare 35kV Series with related models and confirmed technical data.Project Technical SupportSend project data for high voltage distribution transformer manufacturer so CANGO can review rated values, configuration notes, and application conditions.Send Single Line DiagramShare the single-line diagram or layout when checking 35kv oil immersed transformer factory for the selected 35kV Seriesconfiguration.Engineering ConsultationDiscuss site conditions, documentation needs, and quotation details for three phase distribution transformer exporter.
